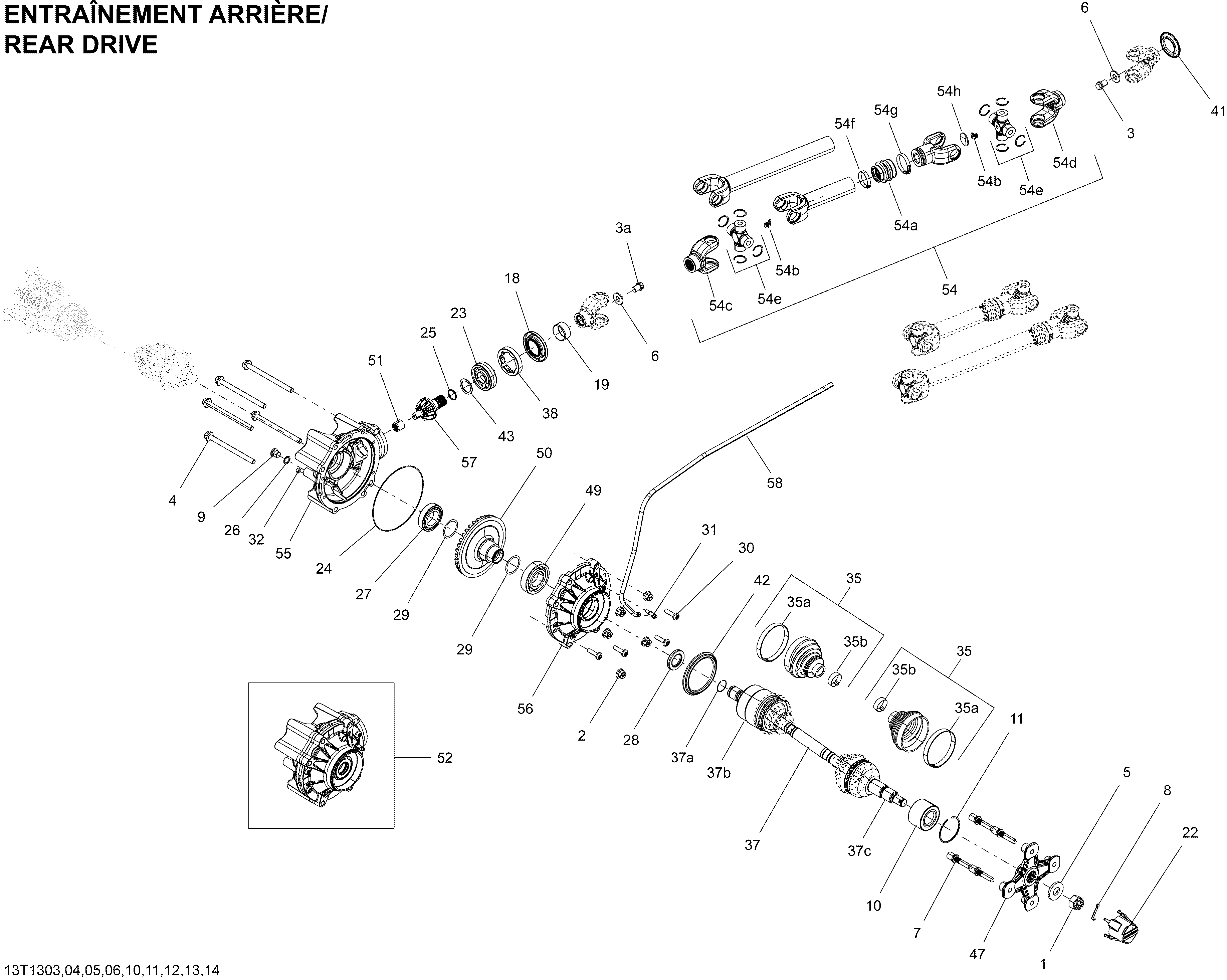

08- Drive System, Rear для BRP Outlander 800R EFI, STD, DPS, XT & XT-P - 2013
-
№АртикулНазвание
-
1250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
2233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
3250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
3a250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
4250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
5250200049 Spring WasherSpring Washer
-
6250200102 Flat Washer M12Flat Washer M12
-
7250300048 Wheel StudWheel Stud
-
8250400036 Cotter PinCotter Pin
-
9705500504 Fill Level PlugFill Level Plug
-
10293350040 Cone BearingCone Bearing
-
11293370019 CirclipCirclip
-
18705400027 Oil SealOil Seal
-
19705400036 Wear RingWear Ring
-
22705400928 Wheel CapWheel Cap
-
23705500260 Ball BearingBall Bearing
-
24705500265 SealSeal
-
25705500267 O-RingO-Ring
-
26705500506 Copper WasherCopper Washer
-
27705500749 Ball BearingBall Bearing
-
28705501196 Oil SealOil Seal
-
29703500548 Differential Shim KitDifferential Shim Kit
-
30705500892 ScrewScrew
-
31705500893 Vent ValveVent Valve
-
32705500894 Drain PlugDrain Plug
-
35705501777 Rubber Boot KitRubber Boot Kit
-
35a715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
35b715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
37705501485 LH Homocinetic JointLH Homocinetic Joint
-
37705501486 RH Homocinetic JointRH Homocinetic Joint
-
37a705501781 CirclipCirclip
-
37b705501780 Plunging JointPlunging Joint
-
37c705501776 CV JointCV Joint
-
38705500987 NutNut
-
41705501123 ProtectorProtector
-
42705501124 Wear RingWear Ring
-
43703500049 Pinion Shim KitPinion Shim Kit
-
43705501162 Pinion Gear ShimPinion Gear Shim
-
47705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
49705501389 Ball BearingBall Bearing
-
50705501403 36 Teeth Pinion36 Teeth Pinion
-
51705501408 Needle BearingNeedle Bearing
-
52705501419 Rear Differential Ass'yRear Differential Ass'y
-
54705501406 Rear Propeller Shaft Ass'y. Includes 54 to 54hRear Propeller Shaft Ass'y. Includes 54 to 54h
-
54a715900118 Rubber BootRubber Boot
-
54b715900184 Grease FittingGrease Fitting
-
54c715900101 Fixe YokeFixe Yoke
-
54d715900101 Fixe YokeFixe Yoke
-
54e715500371 Universal JointUniversal Joint
-
54f509000045 Oetiker Gear ClampOetiker Gear Clamp
-
54g293650138 Oetiker Gear ClampOetiker Gear Clamp
-
54h715900187 CoverCover
-
55705501420 Pinion Rear CoverPinion Rear Cover
-
56705501507 Rear Differential CoverRear Differential Cover
-
57705501570 10 Teeth Pinion10 Teeth Pinion
-
58415080200 Hose, PolyurethaneHose, Polyurethane
