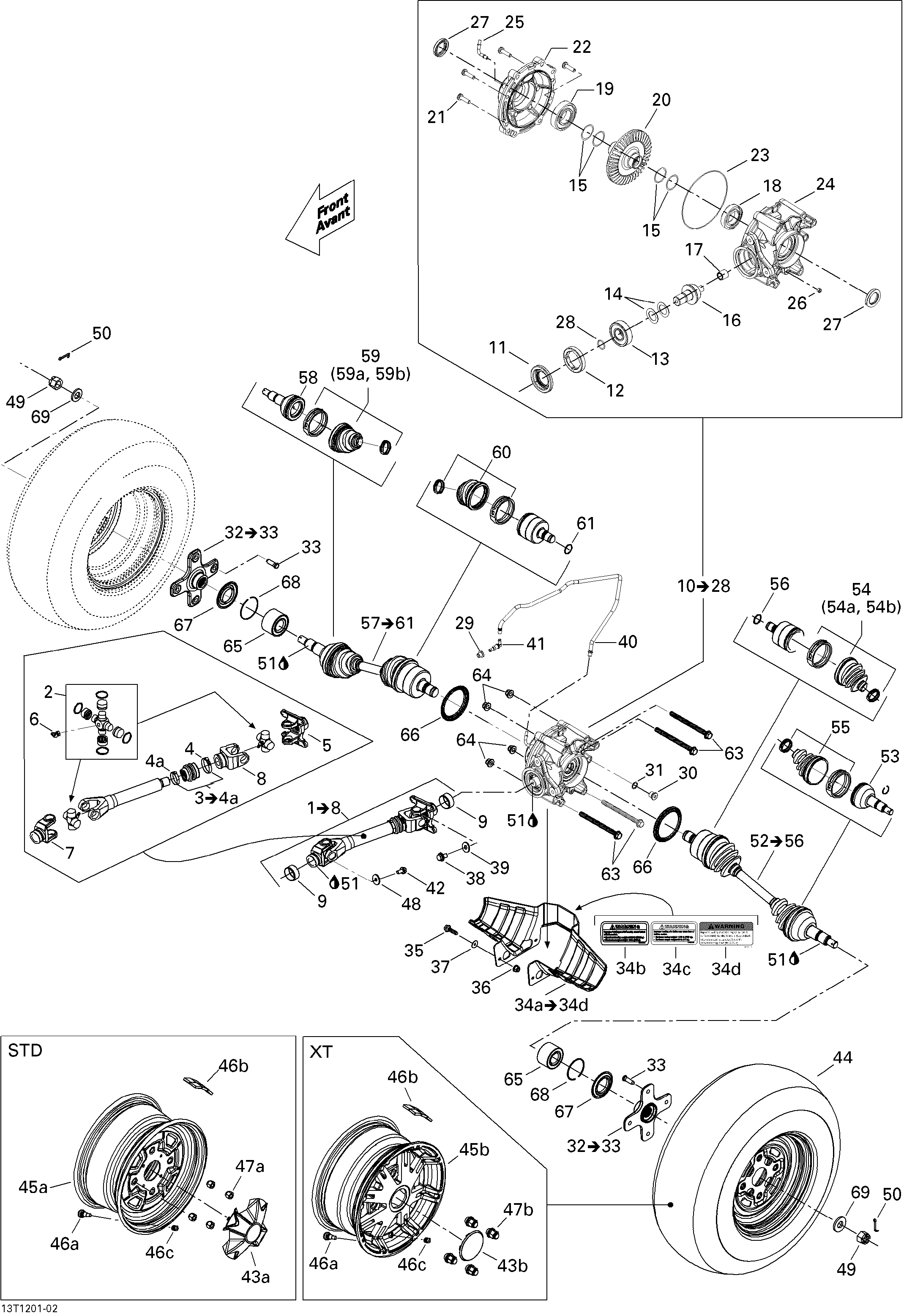

08- Drive System, Rear для BRP Outlander STD, XT, 400 EFI - 2012
-
№АртикулНазвание
-
1703500706 Rear Drive Shaft Ass'y. OUTLANDER, Includes 1 to 8Rear Drive Shaft Ass'y. OUTLANDER, Includes 1 to 8
-
2703000024 Unit Pack KitUnit Pack Kit
-
3715900067 Grease FittingGrease Fitting
-
4703500255 Rubber Boot KitRubber Boot Kit
-
4a293650138 Oetiker ClampOetiker Clamp
-
5705500351 Disc JointDisc Joint
-
6715900067 Grease FittingGrease Fitting
-
7705500348 Fix JointFix Joint
-
8705500762 Slip JointSlip Joint
-
9705400036 Wear RingWear Ring
-
10705501569 Rear Differential Ass'y. Includes 10 to 28Rear Differential Ass'y. Includes 10 to 28
-
11705400027 Oil SealOil Seal
-
12705500987 NutNut
-
13705500260 Ball BearingBall Bearing
-
14705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
14703500049 Pinion Shim KitPinion Shim Kit
-
14705501163 Pinion Gear Shim 2.12mmPinion Gear Shim 2.12mm
-
15703500548 Differential Shim KitDifferential Shim Kit
-
16705501570 10Teeth Pinion10Teeth Pinion
-
17705501408 Needle BearingNeedle Bearing
-
18705500749 Ball BearingBall Bearing
-
19705501389 Ball BearingBall Bearing
-
20705501403 36Teeth Pinion36Teeth Pinion
-
21705500892 ScrewScrew
-
22705501507 Rear Differential CoverRear Differential Cover
-
23705500265 SealSeal
-
24705501395 Pinion Rear CoverPinion Rear Cover
-
25705500893 Vent ValveVent Valve
-
26705500894 Drain PlugDrain Plug
-
27705501196 Oil SealOil Seal
-
28705500267 O-RingO-Ring
-
29293720029 GrommetGrommet
-
30250400041 Screw PlugScrew Plug
-
31705500506 Copper WasherCopper Washer
-
32705501199 Wheel Hub Ass'y. Includes 32 to 33Wheel Hub Ass'y. Includes 32 to 33
-
33250300034 Wheel StudWheel Stud
-
34a703500722 Protector Kit. Includes 34a to 34dProtector Kit. Includes 34a to 34d
-
34b704900009 Warning Decal, TrailerWarning Decal, Trailer
-
34d704901489 Warning Decal, Maximum TowingWarning Decal, Maximum Towing
-
35207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37250200082 Flat WasherFlat Washer
-
38250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
39250200102 Flat Washer M12Flat Washer M12
-
40415080200 Hose, PolyurethaneHose, Polyurethane
-
41414580600 Elbow Male ConnectorElbow Male Connector
-
42207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
43a705400563 Wheel Cap. STDWheel Cap. STD
-
43b705400680 Wheel Cap. XTWheel Cap. XT
-
44705500933 Rear Tire. XTRear Tire. XT
-
44705500598 Rear Tire. XT EuropeRear Tire. XT Europe
-
44705500385 Rear Tire. STDRear Tire. STD
-
44705500934 Rear Tire. STD EuropeRear Tire. STD Europe
-
45a705501136 Rear Rim, Grey. STDRear Rim, Grey. STD
-
45b705500986 Rear Wheel. XTRear Wheel. XT
-
46a705400193 Rim Valve with CapRim Valve with Cap
-
46b705501385 1/2 OZ Weight1/2 OZ Weight
-
46c293000110 Valve CapValve Cap
-
47a250100042 Wheel Nut. STDWheel Nut. STD
-
47b250100082 Chrome Wheel Nut M10 X 1.25. XTChrome Wheel Nut M10 X 1.25. XT
-
48211200041 WasherWasher
-
49250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
50250400036 Cotter PinCotter Pin
-
52705500976 LH CV Joint. Includes 52 to 56LH CV Joint. Includes 52 to 56
-
53705500978 CV JointCV Joint
-
54705500929 Diff. Boot Kit. Includes 54 to 54bDiff. Boot Kit. Includes 54 to 54b
-
54a293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
54b715900139 Oetiker Clamp 71,1mmOetiker Clamp 71,1mm
-
55705500907 Wheel Boot KitWheel Boot Kit
-
56705500845 CirclipCirclip
-
57705500977 RH CV Joint. Includes 57 to 61RH CV Joint. Includes 57 to 61
-
58705500978 CV JointCV Joint
-
59705500907 Wheel Boot Kit. Includes 59 to 59bWheel Boot Kit. Includes 59 to 59b
-
59a293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
59b715900139 Oetiker Clamp 71,1mmOetiker Clamp 71,1mm
-
60705500929 Diff. Boot KitDiff. Boot Kit
-
61705500845 CirclipCirclip
-
63250000508 Hex. Flanged Screw M10 x 135Hex. Flanged Screw M10 x 135
-
64233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
65293350040 Cone BearingCone Bearing
-
66705500901 Wear SleeveWear Sleeve
-
67705501121 Wear SleeveWear Sleeve
-
68293370019 CirclipCirclip
-
69250200049 Spring WasherSpring Washer
