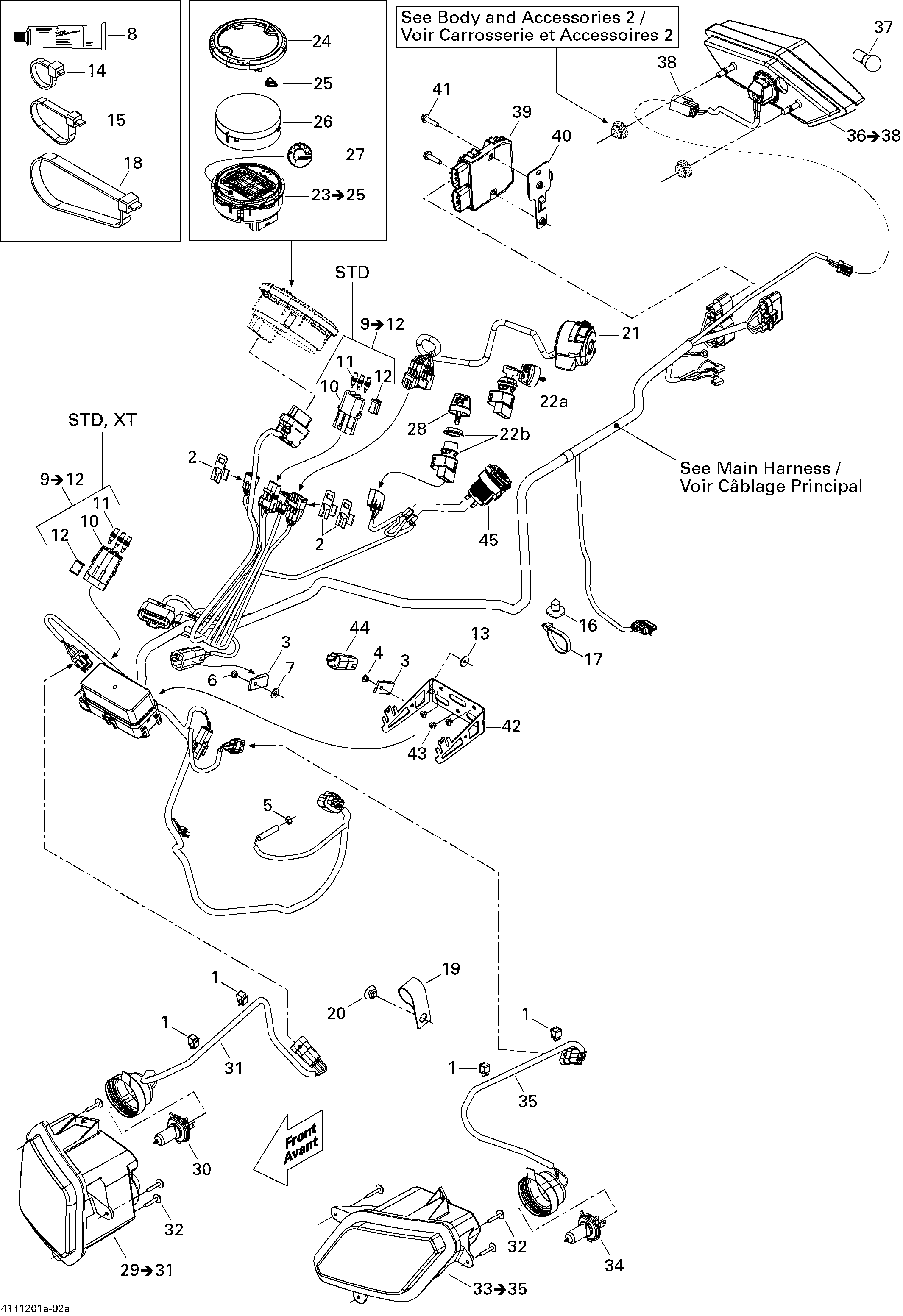

10- Electrical Accessories 1 для BRP Outlander Max STD, XT, 400 EFI - 2012

  • №
    Артикул
    Название
  • 1
    414227300 Clip
    Clip
  • 2
    515175283 Housing Support
    Housing Support
  • 3
    270000141 Clip
    Clip
  • 4
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 5
    293650100 Oetiker Clamp
    Oetiker Clamp
  • 6
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 7
    391301700 Washer
    Washer
  • 8
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 9
    710000917 Connector Ass'y. Includes 9 to 12, XT
    Connector Ass'y. Includes 9 to 12, XT
  • 10
    278000281 Female Terminal Housing, 3 Circuits. XT
    Female Terminal Housing, 3 Circuits. XT
  • 11
    278000216 Wire Seal. XT
    Wire Seal. XT
  • 12
    710000992 Clip. XT
    Clip. XT
  • 9
    710000917 Connector Ass'y. Includes 9 to 12, STD
    Connector Ass'y. Includes 9 to 12, STD
  • 10
    278000281 Female Terminal Housing, 3 Circuits. STD
    Female Terminal Housing, 3 Circuits. STD
  • 11
    278000216 Wire Seal. STD
    Wire Seal. STD
  • 12
    710000992 Clip. STD
    Clip. STD
  • 13
    517124300 Washer
    Washer
  • 14
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 15
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 16
    293730018 Mount Dart
    Mount Dart
  • 17
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 18
    293750041 Tie-rap 627 mm. North America
    Tie-rap 627 mm. North America
  • 19
    705600311 Clamp
    Clamp
  • 20
    390406500 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 21
    710003038 Multi-Fonction Handle. International
    Multi-Fonction Handle. International
  • 21
    710003038 Multi-Fonction Handle. North America
    Multi-Fonction Handle. North America
  • 22
    710002323 Ignition Switch With Key. International
    Ignition Switch With Key. International
  • 22
    710002324 Ignition Switch. North America
    Ignition Switch. North America
  • 23
    710001978 Speedometer Ass'y. Includes 23 to 26
    Speedometer Ass'y. Includes 23 to 26
  • 24
    710001416 Trim Ring
    Trim Ring
  • 25
    710001473 Button
    Button
  • 26
    415129320 Lens
    Lens
  • 27
    704901270 BRP Logo, 13 mm
    BRP Logo, 13 mm
  • 28
    710000817 Black-Electronic Key. North America
    Black-Electronic Key. North America
  • 29
    710001496 RH Headlamp Ass'y. Includes 29 to 31
    RH Headlamp Ass'y. Includes 29 to 31
  • 30
    710000871 Bulb, 12V 35/35W
    Bulb, 12V 35/35W
  • 31
    710000828 Light Harness
    Light Harness
  • 32
    250000101 Plastite Screw Type K-40, M4 X 25
    Plastite Screw Type K-40, M4 X 25
  • 33
    710001497 LH Headlamp Ass'y. Includes 33 to 35
    LH Headlamp Ass'y. Includes 33 to 35
  • 34
    710000871 Bulb, 12V 35/35W
    Bulb, 12V 35/35W
  • 35
    710000828 Light Harness
    Light Harness
  • 36
    710001203 Tail Light Housing Ass'y. Includes 36 to 38
    Tail Light Housing Ass'y. Includes 36 to 38
  • 37
    520000758 Bulb
    Bulb
  • 38
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 39
    710001103 Voltage Regulator
    Voltage Regulator
  • 40
    710001262 Rectifier Support
    Rectifier Support
  • 41
    210262080 Hex. Forming Screw M6 X 20
    Hex. Forming Screw M6 X 20
  • 42
    710002176 Fuse Support
    Fuse Support
  • 43
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 44
    278002148 Diagnostic Connector Cap
    Diagnostic Connector Cap
  • 45
    710001248 Outlet DC
    Outlet DC
