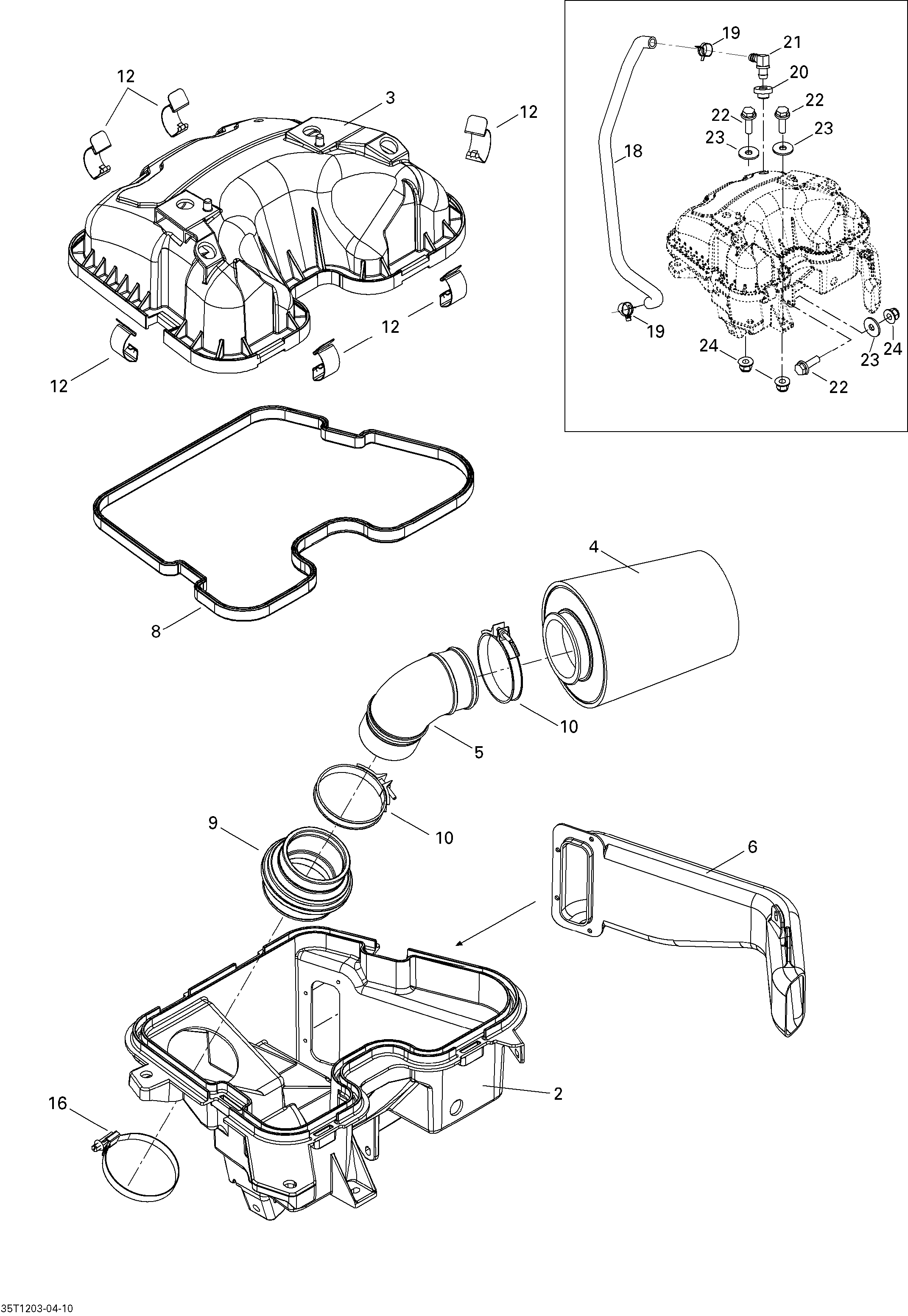

02- Air Intake Silencer для BRP Outlander 500EFI STD & XT - 2012
-
№АртикулНазвание
-
2707800447 Intake Silencer BaseIntake Silencer Base
-
3707800451 Intake Silencer CoverIntake Silencer Cover
-
4707800174 Air FilterAir Filter
-
5707800270 Rigid AdaptorRigid Adaptor
-
6707800175 Front Intake AdaptorFront Intake Adaptor
-
8707800197 Oil SealOil Seal
-
9707800177 Intake AdaptorIntake Adaptor
-
10293650175 ClampClamp
-
12707800231 Cover BracketCover Bracket
-
16293650091 Norma ClampNorma Clamp
-
18707800428 Vent HoseVent Hose
-
19293650110 Norma ClampNorma Clamp
-
20707800347 GrommetGrommet
-
21414523600 Elbow FittingElbow Fitting
-
22207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
23391302000 Flat WasherFlat Washer
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
