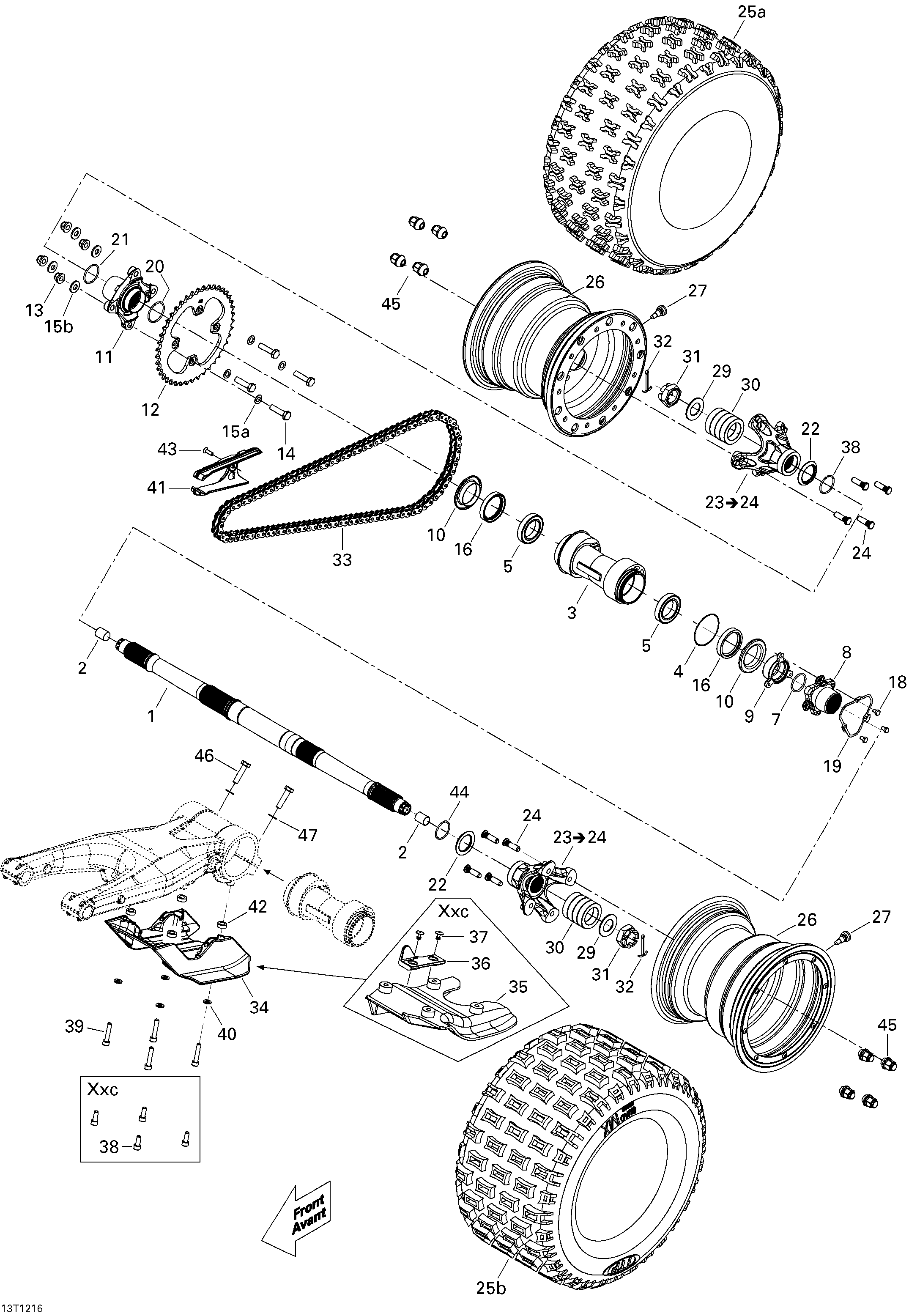

08- Drive System, Rear для BRP DS 450EFI Xxc & Xmx - 2012
-
№АртикулНазвание
-
1705500998 Drive AxleDrive Axle
-
2293730044 CapCap
-
3705501159 Chain TightenerChain Tightener
-
4293300115 O-RingO-Ring
-
5293350077 Ball BearingBall Bearing
-
7293300089 O-RingO-Ring
-
8705500646 Brake Disc HubBrake Disc Hub
-
9705500649 Nut M40Nut M40
-
10705500648 Wear RingWear Ring
-
11705501161 Wheel HubWheel Hub
-
12715000592 Sprocket Kit, 42 Teeth. XXCSprocket Kit, 42 Teeth. XXC
-
12715000527 Sprocket Kit, 39 Teeth. XMXSprocket Kit, 39 Teeth. XMX
-
13233201436 Flanged Elastic NutFlanged Elastic Nut
-
14207004036 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
15a250200084 Flat WasherFlat Washer
-
15b234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
16293250164 Oil SealOil Seal
-
18207161034 Hex. Screw M6 X 10Hex. Screw M6 X 10
-
19705500669 Lock WasherLock Washer
-
20293300099 O-RingO-Ring
-
21705500108 Ring RetainerRing Retainer
-
22705500663 Support RingSupport Ring
-
23705501075 Rear Wheel Hub Ass'y. Includes 23 to 24Rear Wheel Hub Ass'y. Includes 23 to 24
-
24250300013 Wheel StudWheel Stud
-
25a705500989 Rear Tire. XXCRear Tire. XXC
-
25b705501106 Rear Tire. XMXRear Tire. XMX
-
26705500990 Rear Rim. XXCRear Rim. XXC
-
26705500995 Rear Rim. XMXRear Rim. XMX
-
27705400193 Rim Valve with Cap. XMXRim Valve with Cap. XMX
-
29250200087 Flat WasherFlat Washer
-
30705500999 SpacerSpacer
-
31250100093 Hex. Castlellated Nut M27Hex. Castlellated Nut M27
-
32250400028 Cotter PinCotter Pin
-
33705500948 Chain. XXCChain. XXC
-
33705501084 Chain. XMXChain. XMX
-
34705500660 Rear Skid Plate. XXCRear Skid Plate. XXC
-
35705501064 Rear Skid Plate. XXCRear Skid Plate. XXC
-
36705500923 Chain Slider. XXCChain Slider. XXC
-
37293150104 Pop Rivet 3/16''. XXCPop Rivet 3/16''. XXC
-
38205582544 Socket Head Screw M8 X 25, Scotch Grip. XXCSocket Head Screw M8 X 25, Scotch Grip. XXC
-
39205585044 Socket Head Screw M8 X 50, Scotch Grip. XMXSocket Head Screw M8 X 50, Scotch Grip. XMX
-
40234081410 Flat Washer 8 mm. XMXFlat Washer 8 mm. XMX
-
41705501422 Chain SliderChain Slider
-
42293900098 Bushing. XMXBushing. XMX
-
43205862034 Socket Head Screw M6, Scotch GripSocket Head Screw M6, Scotch Grip
-
44705500065 Ring RetainerRing Retainer
-
45250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
46207004034 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
47250200084 Flat WasherFlat Washer
