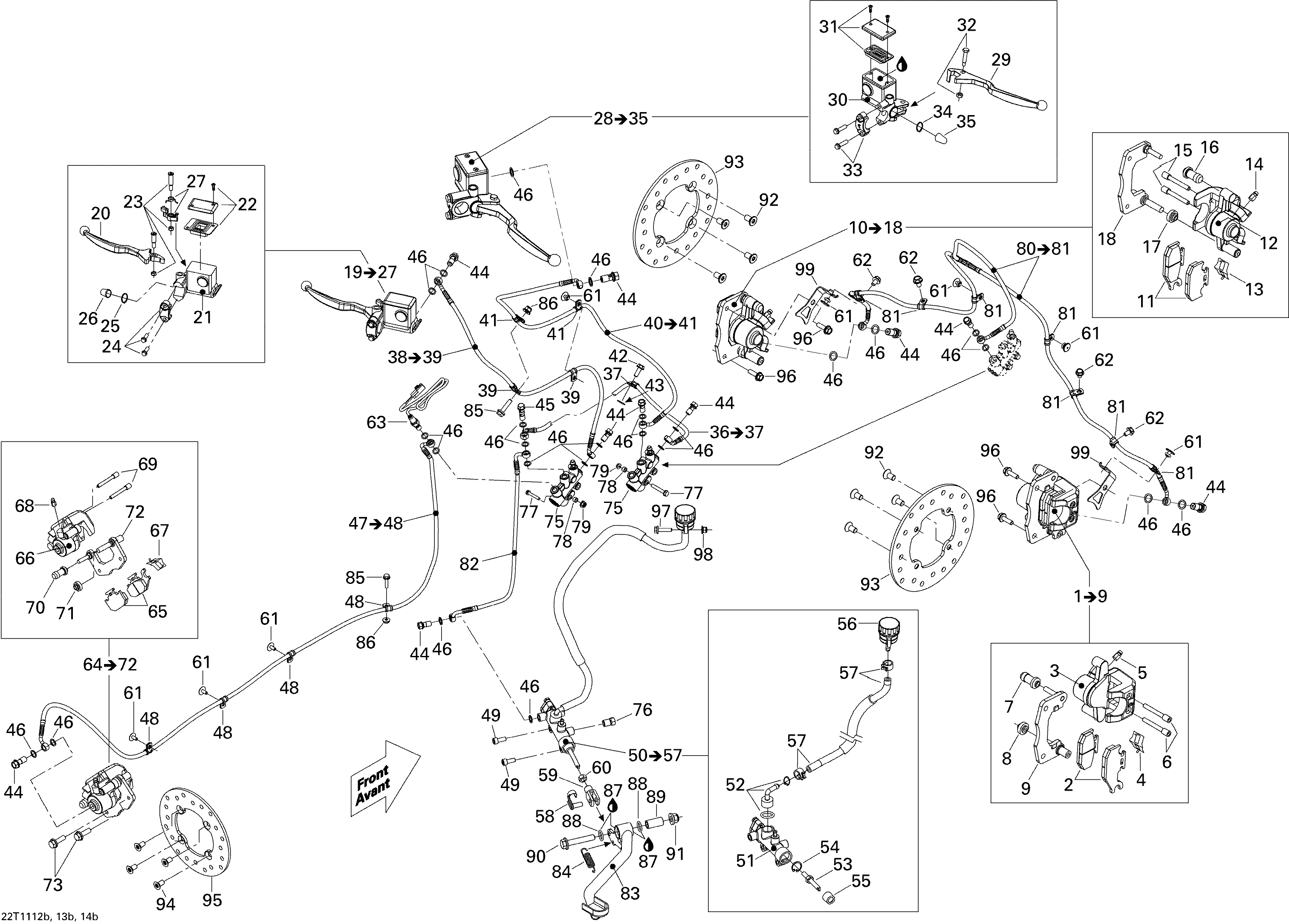

06- Brakes Europe для BRP Renegade 800R EFI - 2011
-
№АртикулНазвание
-
1705600593 RH Caliper. Includes 1 to 9RH Caliper. Includes 1 to 9
-
2705600004 Brake Pad KitBrake Pad Kit
-
3705600078 Piston SetPiston Set
-
4705600079 SpringSpring
-
5705600080 Bleeding ScrewBleeding Screw
-
6705600081 Pin SetPin Set
-
7705600082 Compression BootCompression Boot
-
8705600083 Compression BootCompression Boot
-
10705600594 LH Caliper. Includes 10 to 18LH Caliper. Includes 10 to 18
-
11705600014 Brake Pad KitBrake Pad Kit
-
12705600078 Piston SetPiston Set
-
13705600079 SpringSpring
-
14705600080 Bleeding ScrewBleeding Screw
-
15705600081 Pin SetPin Set
-
16705600082 Compression BootCompression Boot
-
17705600083 Compression BootCompression Boot
-
19705600845 LH Front Master Cylinder. Includes 19 to 27LH Front Master Cylinder. Includes 19 to 27
-
20705600243 Lever ArmLever Arm
-
21705600152 Piston KitPiston Kit
-
22705600084 Cap SetCap Set
-
23705600246 Brake Lever Bolt KitBrake Lever Bolt Kit
-
24705600087 Bracket KitBracket Kit
-
25705600088 CirclipCirclip
-
26705600089 Compression BootCompression Boot
-
27705600477 Parking Kit, Brake Lever LockParking Kit, Brake Lever Lock
-
28705600956 RH Front Master Cylinder. Includes 28 to 35RH Front Master Cylinder. Includes 28 to 35
-
29705600629 Lever ArmLever Arm
-
30705600086 Switch KitSwitch Kit
-
31705600084 Cap SetCap Set
-
32705600085 Bolt KitBolt Kit
-
33705600087 Bracket KitBracket Kit
-
34705600088 CirclipCirclip
-
35705600089 Compression BootCompression Boot
-
36705600699 Brake Hose, Front. Includes 36 to 37Brake Hose, Front. Includes 36 to 37
-
37705600459 ClampClamp
-
38705600761 Brake Hose, Front LH. Includes 38 to 39Brake Hose, Front LH. Includes 38 to 39
-
39705600459 ClampClamp
-
40705600698 Brake Hose, Front RH. Includes 40 to 41Brake Hose, Front RH. Includes 40 to 41
-
41705600459 ClampClamp
-
42210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
43224061121 Flat WasherFlat Washer
-
44705600609 Banjo BoltBanjo Bolt
-
45705600958 Banjo BoltBanjo Bolt
-
46705600310 Copper WasherCopper Washer
-
47705600695 Rear Brake Hose. Includes 47 to 48Rear Brake Hose. Includes 47 to 48
-
48705600459 ClampClamp
-
49250000136 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
50705600751 Master Cylinder. Includes 50 to 57Master Cylinder. Includes 50 to 57
-
51705600255 Piston SetPiston Set
-
52705600064 Pusher Bracket, Hose ConnectorPusher Bracket, Hose Connector
-
54705600068 CirclipCirclip
-
55705600090 Compression BootCompression Boot
-
56705600182 Oil Tank, Brake Fluid ReservoirOil Tank, Brake Fluid Reservoir
-
57705600754 Oil Housing HoseOil Housing Hose
-
58250400007 PinPin
-
59705600100 YokeYoke
-
60232081414 Hex. Nut M8Hex. Nut M8
-
61390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
62210261040 Hex. Flanged Forming Screw M6 X 10Hex. Flanged Forming Screw M6 X 10
-
63705600798 Brake SwitchBrake Switch
-
64705600791 Rear Caliper. Includes 64 to 72Rear Caliper. Includes 64 to 72
-
65705600398 Brake Pad KitBrake Pad Kit
-
67705600079 SpringSpring
-
68705600080 Bleeding ScrewBleeding Screw
-
69705600081 Pin SetPin Set
-
70705600082 Compression BootCompression Boot
-
71705600083 Compression BootCompression Boot
-
73207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
75705600800 SplitterSplitter
-
76250100122 Threaded Cap M10Threaded Cap M10
-
77210264080 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
78293900029 BushingBushing
-
79233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
80705600700 Brake Hose. Includes 80 to 81Brake Hose. Includes 80 to 81
-
81705600459 ClampClamp
-
82705600701 Brake Hose, RearBrake Hose, Rear
-
83705600784 Brake Pedal, BlackBrake Pedal, Black
-
84705600792 Brake Pedal SpringBrake Pedal Spring
-
85207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
86233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
87293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
88293300144 O-RingO-Ring
-
89705600815 Inner SpacerInner Spacer
-
90207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
91233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
92235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
93705600604 Disk BrakeDisk Brake
-
94235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
95705600604 Disk BrakeDisk Brake
-
96207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
97207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
98233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
99705600795 BracketBracket
