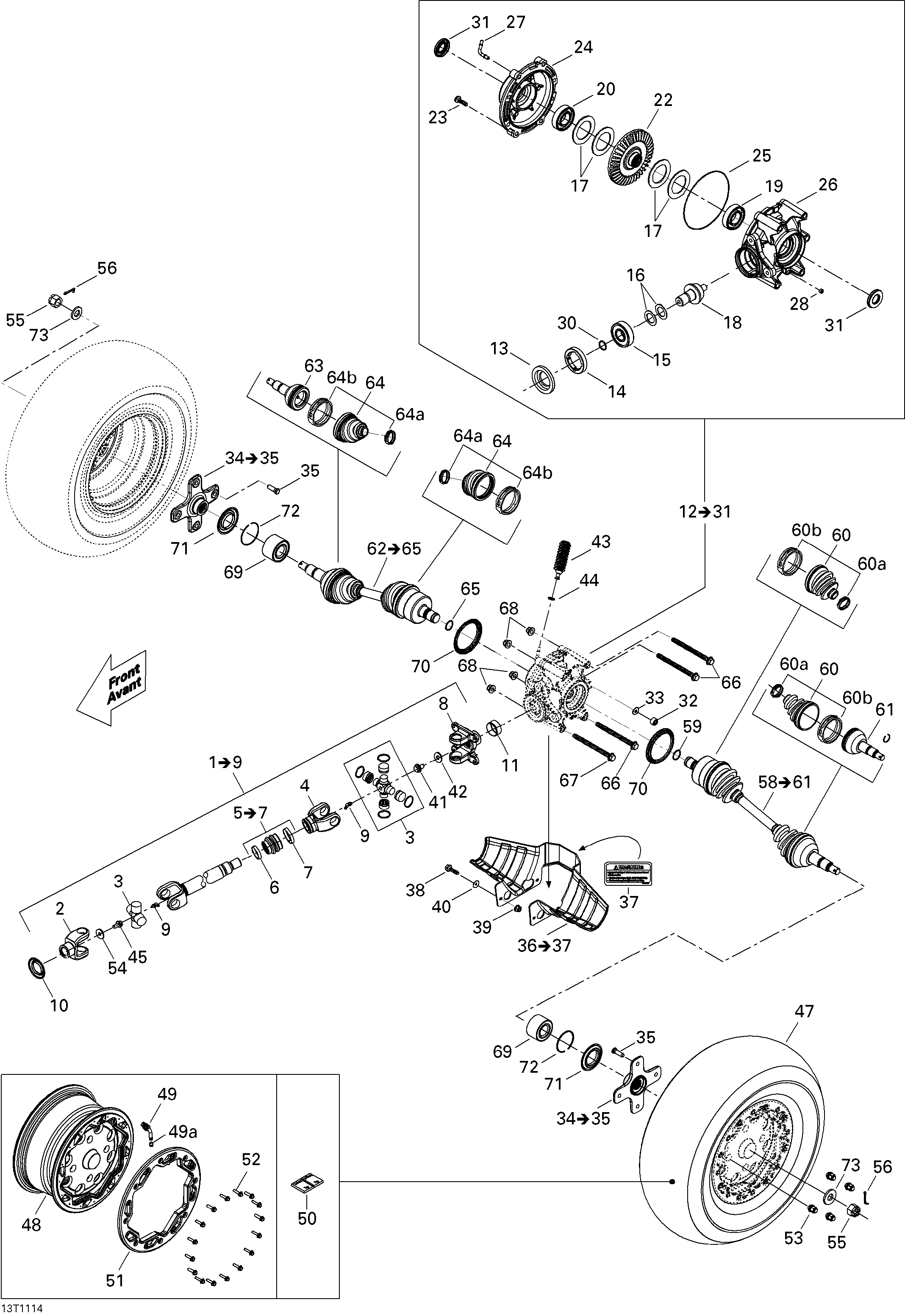

08- Drive System, Rear для BRP Renegade 800R EFI, Xxc - 2011

  • №
    Артикул
    Название
  • 1
    703500769 Rear Propeller Shaft Kit. Includes 1 to 9
    Rear Propeller Shaft Kit. Includes 1 to 9
  • 2
    705500371 Fix Joint
    Fix Joint
  • 3
    703000022 Unit Pack Kit
    Unit Pack Kit
  • 4
    705501072 Sliding Joint
    Sliding Joint
  • 5
    703500255 Rubber Boot Kit
    Rubber Boot Kit
  • 6
    293650138 Oetiker Clamp
    Oetiker Clamp
  • 7
    293650138 Oetiker Clamp
    Oetiker Clamp
  • 8
    705500526 Disc Joint
    Disc Joint
  • 9
    705500841 Grease Fitting
    Grease Fitting
  • 10
    705501123 Protector
    Protector
  • 11
    705400036 Wear Ring
    Wear Ring
  • 12
    705501412 Rear Differential Ass'y. Includes 12 to 31
    Rear Differential Ass'y. Includes 12 to 31
  • 13
    705400027 Oil Seal
    Oil Seal
  • 14
    705500987 Nut
    Nut
  • 15
    705500260 Ball Bearing
    Ball Bearing
  • 16
    705500075 Pinion Gear Shim .022''
    Pinion Gear Shim .022''
  • 16
    703500049 Pinion Shim Kit
    Pinion Shim Kit
  • 16
    705501163 Pinion Gear Shim 2.12mm
    Pinion Gear Shim 2.12mm
  • 17
    703500548 Differential Shim Kit
    Differential Shim Kit
  • 18
    705501570 10Teeth Pinion
    10Teeth Pinion
  • 19
    705500749 Ball Bearing
    Ball Bearing
  • 20
    705501389 Ball Bearing
    Ball Bearing
  • 22
    705501403 36Teeth Pinion
    36Teeth Pinion
  • 23
    705500892 Screw
    Screw
  • 24
    705501393 Rear Cover
    Rear Cover
  • 25
    705500265 Seal
    Seal
  • 26
    705501395 Pinion Rear Cover
    Pinion Rear Cover
  • 27
    705500893 Vent Valve
    Vent Valve
  • 28
    705500894 Drain Plug
    Drain Plug
  • 30
    705500267 O-Ring
    O-Ring
  • 31
    705501196 Oil Seal
    Oil Seal
  • 32
    250400041 Screw Plug
    Screw Plug
  • 33
    705500506 Copper Washer
    Copper Washer
  • 34
    705501199 Wheel Hub Ass'y. Includes 34 to 35
    Wheel Hub Ass'y. Includes 34 to 35
  • 35
    250300045 Wheel Stud
    Wheel Stud
  • 36
    703500722 Protector Kit. Includes 36 to 37
    Protector Kit. Includes 36 to 37
  • 37
    704901489 Warning Decal, Maximum Towing
    Warning Decal, Maximum Towing
  • 37a
    704900009 Warning Decal, Trailer
    Warning Decal, Trailer
  • 38
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 39
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 40
    391302000 Flat Washer
    Flat Washer
  • 41
    250000359 Hex Flanged Screw M12 x 16
    Hex Flanged Screw M12 x 16
  • 42
    250200102 Flat Washer M12
    Flat Washer M12
  • 43
    705400352 Rubber Bellow
    Rubber Bellow
  • 44
    293650042 Oetiker Clamp
    Oetiker Clamp
  • 45
    250000359 Hex Flanged Screw M12 x 16
    Hex Flanged Screw M12 x 16
  • 47
    705500926 Rear Tire. North America
    Rear Tire. North America
  • 47
    705500926 Rear Tire. International
    Rear Tire. International
  • 47
    705500820 Rear Tire. Europe
    Rear Tire. Europe
  • 48
    705501137 Rear Rim
    Rear Rim
  • 49
    705400872 Rim Valve with Cap
    Rim Valve with Cap
  • 49a
    293000111 Valve Cap
    Valve Cap
  • 50
    705501385 1/2 OZ Weight
    1/2 OZ Weight
  • 51
    705400841 Reinforcement Disk. Europe
    Reinforcement Disk. Europe
  • 52
    250000435 Hex. Flanged Screw M6 X 25. North America
    Hex. Flanged Screw M6 X 25. North America
  • 53
    250100100 Black Wheel Nut M10 X 1.25
    Black Wheel Nut M10 X 1.25
  • 54
    250200102 Flat Washer M12
    Flat Washer M12
  • 55
    250100047 Hex. Castellated Nut M18
    Hex. Castellated Nut M18
  • 56
    250400036 Cotter Pin
    Cotter Pin
  • 58
    705500979 LH CV Joint Ass'y. Includes 58 to 61
    LH CV Joint Ass'y. Includes 58 to 61
  • 59
    705500845 Circlip
    Circlip
  • 60
    705500870 Boot Kit. Includes 60 to 60b
    Boot Kit. Includes 60 to 60b
  • 60a
    293650204 Oetiker Clamp (81mm)
    Oetiker Clamp (81mm)
  • 60b
    293650203 Oetiker Clamp (27,5mm)
    Oetiker Clamp (27,5mm)
  • 61
    705500980 CV Joint
    CV Joint
  • 62
    705500983 RH CV Joint Ass'y. Includes 62 to 65
    RH CV Joint Ass'y. Includes 62 to 65
  • 63
    705500980 CV Joint
    CV Joint
  • 64
    705500870 Boot Kit. Includes 64 to 64b
    Boot Kit. Includes 64 to 64b
  • 64a
    293650204 Oetiker Clamp (81mm)
    Oetiker Clamp (81mm)
  • 64b
    293650203 Oetiker Clamp (27,5mm)
    Oetiker Clamp (27,5mm)
  • 65
    705500845 Circlip
    Circlip
  • 66
    230603046 Flanged Hex. Screw, M10 X 130
    Flanged Hex. Screw, M10 X 130
  • 67
    230603546 Hex. Flanged Screw M10 X 135
    Hex. Flanged Screw M10 X 135
  • 68
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 69
    293350040 Cone Bearing
    Cone Bearing
  • 70
    705501124 Wear Ring
    Wear Ring
  • 71
    705501121 Wear Sleeve
    Wear Sleeve
  • 72
    293370019 Circlip
    Circlip
  • 73
    250200049 Spring Washer
    Spring Washer
