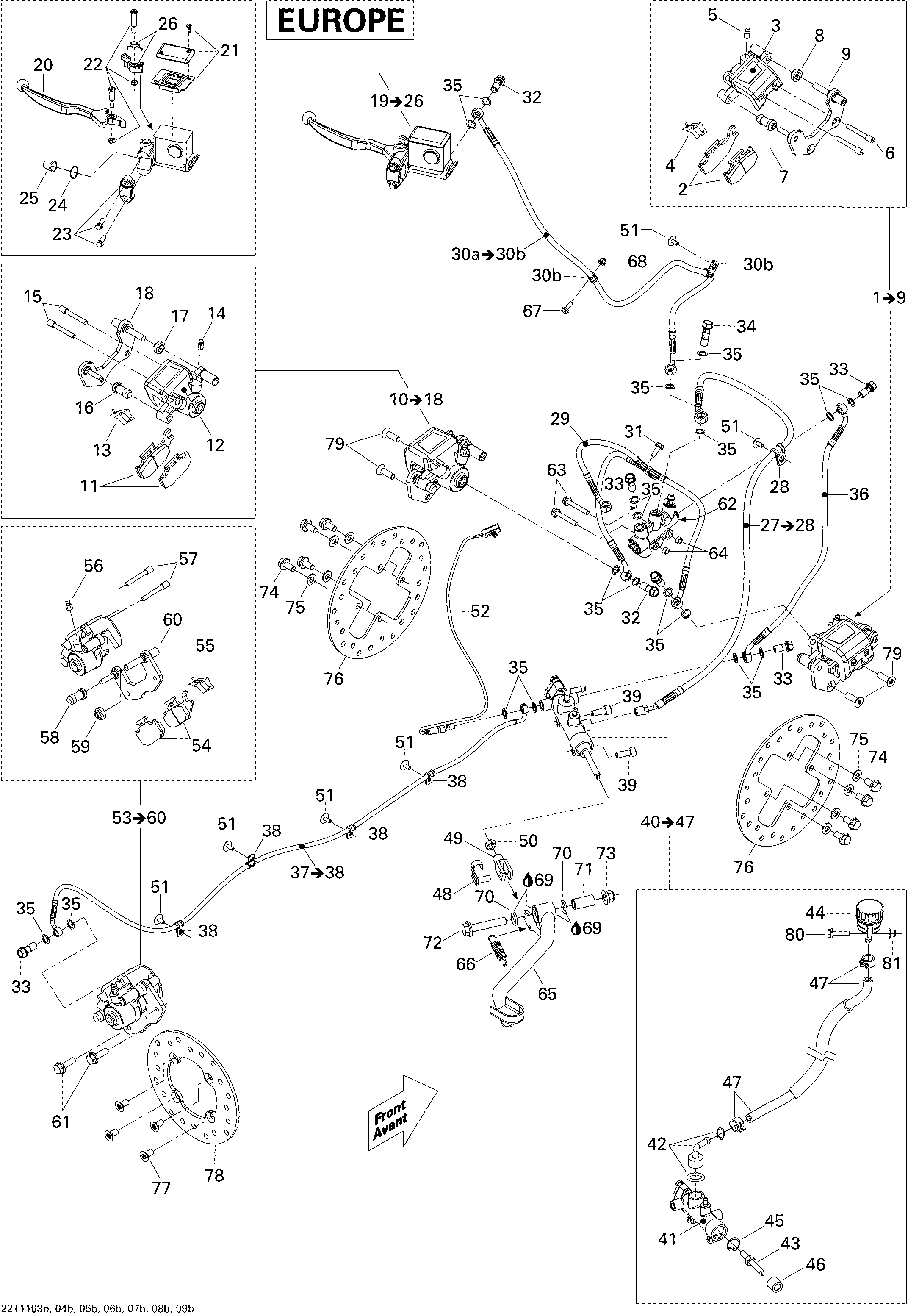

06- Brakes Europe для BRP Outlander Max 650 EFI - 2011
-
№АртикулНазвание
-
1705600728 RH CaliperRH Caliper
-
2705600004 Brake Pad KitBrake Pad Kit
-
3705600078 Piston SetPiston Set
-
4705600079 SpringSpring
-
5705600080 Bleeding ScrewBleeding Screw
-
6705600081 Pin SetPin Set
-
7705600082 Compression BootCompression Boot
-
8705600083 Compression BootCompression Boot
-
10705600729 LH CaliperLH Caliper
-
11705600014 Brake Pad KitBrake Pad Kit
-
12705600078 Piston SetPiston Set
-
13705600079 SpringSpring
-
14705600080 Bleeding ScrewBleeding Screw
-
15705600081 Pin SetPin Set
-
16705600082 Compression BootCompression Boot
-
17705600083 Compression BootCompression Boot
-
19705600844 Front Master CylinderFront Master Cylinder
-
20705600243 Lever ArmLever Arm
-
21705600084 Cap SetCap Set
-
22705600246 Brake Lever Bolt KitBrake Lever Bolt Kit
-
23705600087 Bracket KitBracket Kit
-
24705600088 CirclipCirclip
-
25705600089 Compression BootCompression Boot
-
26705600477 Parking Kit, Brake Lever LockParking Kit, Brake Lever Lock
-
27705600691 Brake HoseBrake Hose
-
28705600459 ClampClamp
-
29705600690 Brake HoseBrake Hose
-
30a705600697 Brake HoseBrake Hose
-
30b705600459 ClampClamp
-
31210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
32705600609 Banjo BoltBanjo Bolt
-
33705600609 Banjo BoltBanjo Bolt
-
34705600958 Banjo BoltBanjo Bolt
-
35705600310 Copper WasherCopper Washer
-
36705600759 Line BrakeLine Brake
-
37705600582 Rear Hose. Outlander-MAX and XMRRear Hose. Outlander-MAX and XMR
-
38705600459 Clamp. Outlander-MAX and XMRClamp. Outlander-MAX and XMR
-
39250000136 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
40705600743 Rear Master Cylinder Ass'yRear Master Cylinder Ass'y
-
41705600063 Piston SetPiston Set
-
42705600064 Pusher Bracket, Hose ConnectorPusher Bracket, Hose Connector
-
44705600182 Oil Tank, Brake Fluid ReservoirOil Tank, Brake Fluid Reservoir
-
45705600068 CirclipCirclip
-
46705600090 Compression BootCompression Boot
-
47705600754 Oil Housing HoseOil Housing Hose
-
48250400007 PinPin
-
49705600100 YokeYoke
-
50232081414 Hex. Nut M8Hex. Nut M8
-
51390910000 Pop Rivet 3/16''. Outlander-MAX and XMRPop Rivet 3/16''. Outlander-MAX and XMR
-
52705600798 Brake SwitchBrake Switch
-
53705600791 Rear CaliperRear Caliper
-
54705600398 Brake Pad KitBrake Pad Kit
-
55705600079 SpringSpring
-
56705600080 Bleeding ScrewBleeding Screw
-
57705600081 Pin SetPin Set
-
58705600082 Compression BootCompression Boot
-
59705600083 Compression BootCompression Boot
-
61207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
62705600800 SplitterSplitter
-
63210264080 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
64293900029 BushingBushing
-
65705600784 Brake Pedal, BlackBrake Pedal, Black
-
66705600792 Brake Pedal SpringBrake Pedal Spring
-
67207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
68233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
69293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
70293300144 O-RingO-Ring
-
71705600815 Inner SpacerInner Spacer
-
72207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
73233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
74207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
75234281474 Conical Spring Washer M8Conical Spring Washer M8
-
76705600603 Disk BrakeDisk Brake
-
77235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
78705600604 Disk BrakeDisk Brake
-
79250000143 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
80207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
81233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
