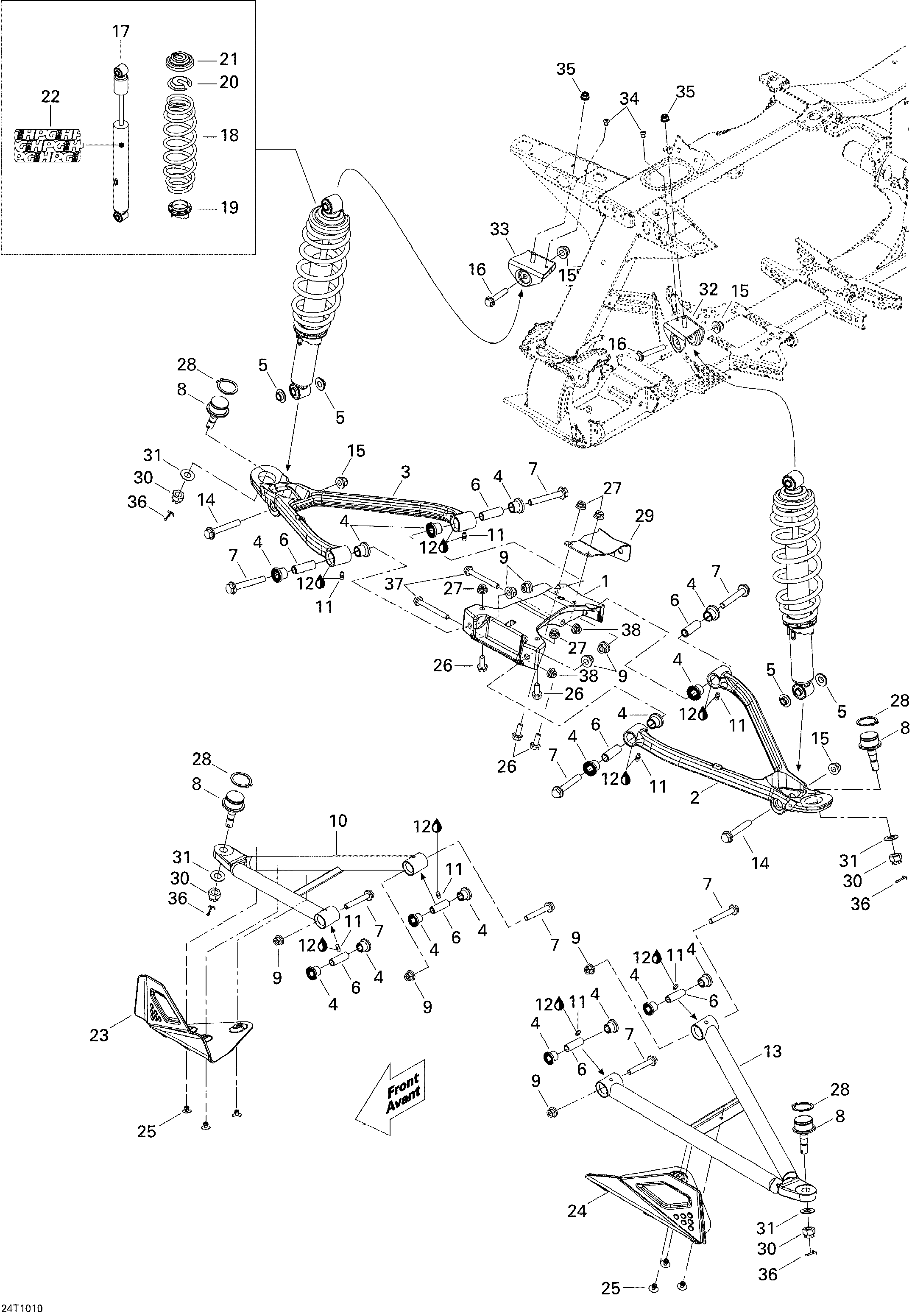

07- Front Suspension 800R для BRP Renegade 800R EFI STD - 2010
-
№АртикулНазвание
-
1706200476 Upper Arm BracketUpper Arm Bracket
-
2706200763 LH Upper ArmLH Upper Arm
-
3706200764 RH Upper ArmRH Upper Arm
-
4706200181 CushionCushion
-
5706200677 Spacer BushingSpacer Bushing
-
6706200678 Inner BushingInner Bushing
-
7207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
8706200653 Ball JointBall Joint
-
9233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
10706201047 RH Suspension ArmRH Suspension Arm
-
11408200700 Grease FittingGrease Fitting
-
12293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
13706201045 LH Suspension ArmLH Suspension Arm
-
14207606546 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
15233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
16207605544 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
17706200420 Front Shock. 800R EFIFront Shock. 800R EFI
-
18706200775 Paint Spring. RedPaint Spring. Red
-
18706200829 Paint Spring. YellowPaint Spring. Yellow
-
19706000294 Adjuster RingAdjuster Ring
-
20706200881 Spring StopperSpring Stopper
-
21706200785 CapCap
-
22704901412 Decal H.P.G.. 800R EFIDecal H.P.G.. 800R EFI
-
23706200616 RH ProtectorRH Protector
-
24706200615 LH ProtectorLH Protector
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
26207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
27233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
28293370009 Circlip 32 mmCirclip 32 mm
-
29706201014 BracketBracket
-
30250100099 Nut M12Nut M12
-
31706200281 Hardened WasherHardened Washer
-
32706201039 LH Upper ArmLH Upper Arm
-
33706201040 RH Upper ArmRH Upper Arm
-
34390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
35233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
36211400017 Cotter PinCotter Pin
-
37207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
38233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
