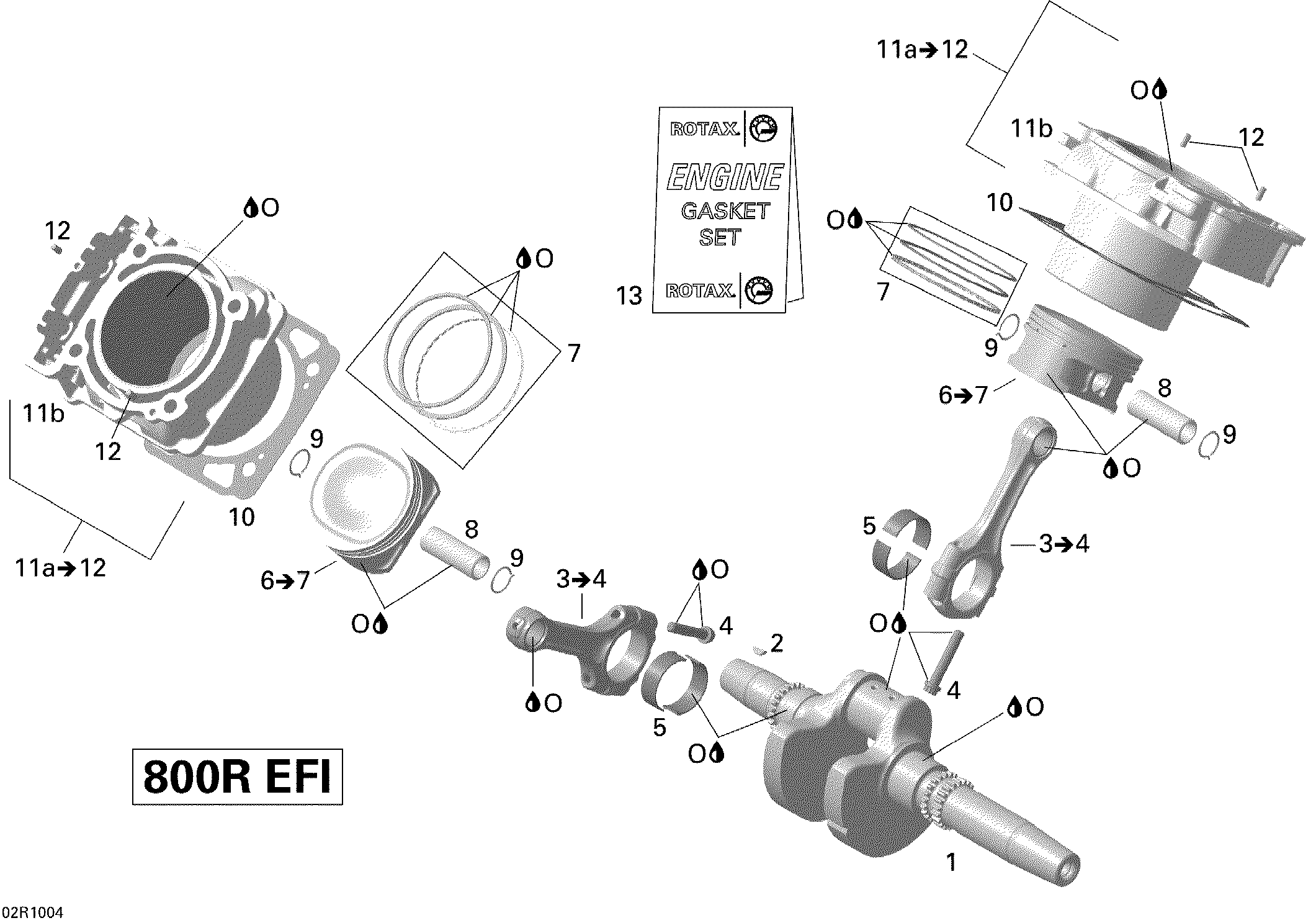

01- Crankshaft, Piston And Cylinder V2_STD для BRP Renegade 800R EFI STD - 2010

№

Артикул

Название
1

420219665 Crankshaft

Crankshaft

0 ₽
2

420246570 Woodruff Key 4 X 5

Woodruff Key 4 X 5

1 200 ₽
3

420217425 Connecting Rod Ass'y. Includes 3 to 4

Connecting Rod Ass'y. Includes 3 to 4

0 ₽
4

420641640 Connecting Rod Screw M8 X 1

Connecting Rod Screw M8 X 1

1 430 ₽
5

420233980 Plain Bearing 40 X 43 X 15

Plain Bearing 40 X 43 X 15

15 070 ₽
6

420296775 Piston Ass'y, 90.958 mm. Includes 6 to 7

Piston Ass'y, 90.958 mm. Includes 6 to 7

0 ₽
6

420296776 Piston Ass'y, Oversize, 91.208 mm. Includes 6 to 7

Piston Ass'y, Oversize, 91.208 mm. Includes 6 to 7

41 810 ₽
7

420296774 Piston Ring Set

Piston Ring Set

12 470 ₽
8

420216270 Piston Pin

Piston Pin

10 260 ₽
9

420845106 Piston Circlip

Piston Circlip

2 410 ₽
10

420630210 Gasket

Gasket

4 830 ₽
11a

420613586 Cylinder Ass'y. Includes 11a to 12

Cylinder Ass'y. Includes 11a to 12

0 ₽
12

420929650 Drive Pin 5 X 10

Drive Pin 5 X 10

600 ₽
13

420684138 Gasket Set, Engine

Gasket Set, Engine

0 ₽
