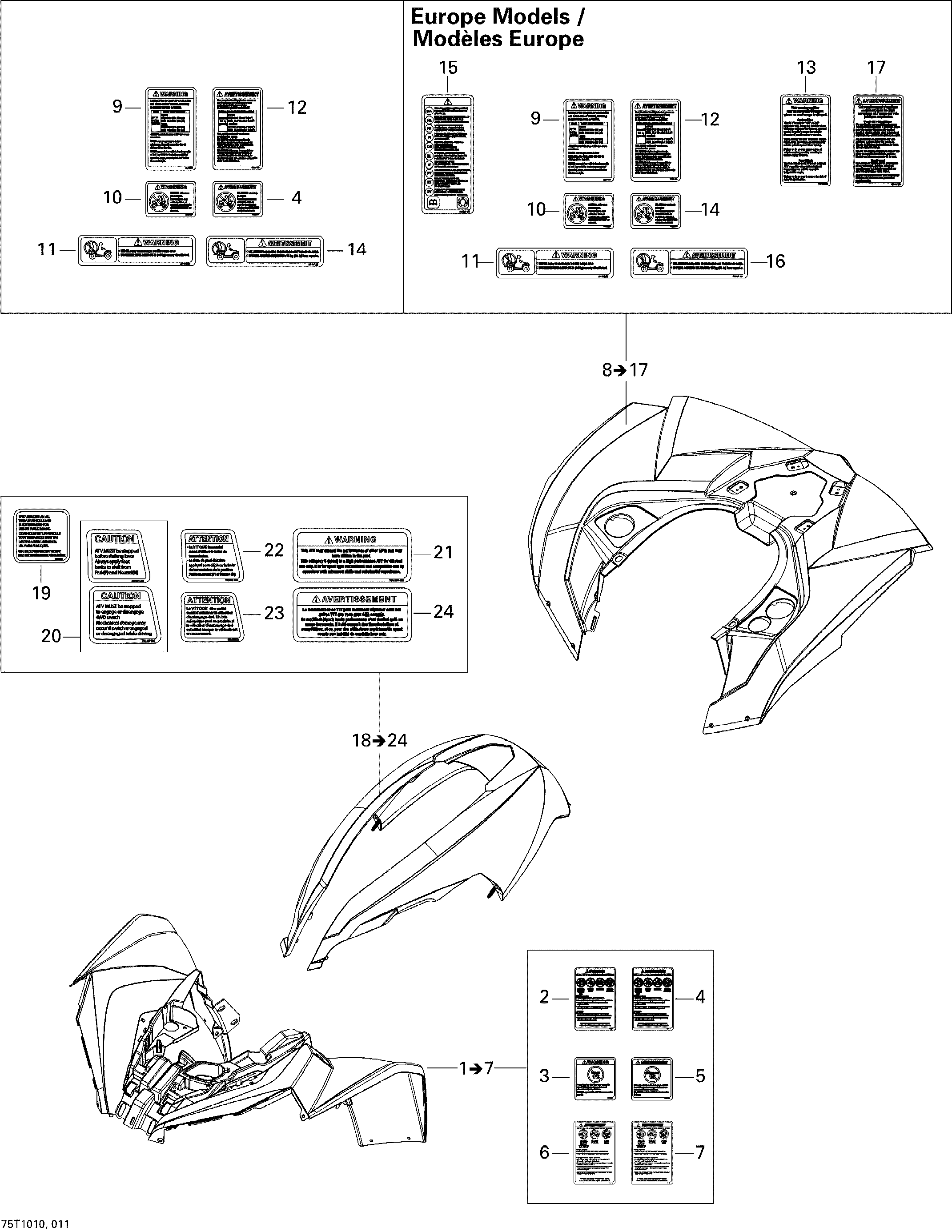

09- Fender And Central Panel Kit для BRP Renegade 500 EFI - 2010
-
№АртикулНазвание
-
1715000737 Front Fender Kit, Yellow. YellowFront Fender Kit, Yellow. Yellow
-
1715000740 Front Fender Kit, Red. RedFront Fender Kit, Red. Red
-
2704901878 Warning Decal, Death And Injuries. English VersionWarning Decal, Death And Injuries. English Version
-
3704900011 Warning Decal, Under 16 Years Old. English VersionWarning Decal, Under 16 Years Old. English Version
-
4704900002 Warning Label, Death And Injuries. French VersionWarning Label, Death And Injuries. French Version
-
5704900012 Warning Label, Under 16 Years Old. French VersionWarning Label, Under 16 Years Old. French Version
-
6704901441 Warning Label, Death And Injuries. French VersionWarning Label, Death And Injuries. French Version
-
7704901875 Warning Decal, Death And Injuries. English VersionWarning Decal, Death And Injuries. English Version
-
8715000314 Rear Fender Kit, Yellow. Yellow North America_Yellow InternationalRear Fender Kit, Yellow. Yellow North America_Yellow International
-
8715000744 Rear Fender Kit, Red. Red North America_Red InternationalRear Fender Kit, Red. Red North America_Red International
-
8715000746 Rear Fender Kit, Red. Red EuropeRear Fender Kit, Red. Red Europe
-
8715000760 Rear Fender Kit, Yellow. Yellow EuropeRear Fender Kit, Yellow. Yellow Europe
-
9704901419 Warning Label, Tire Pressure. English VersionWarning Label, Tire Pressure. English Version
-
10704900005 Warning Decal, Passenger. English VersionWarning Decal, Passenger. English Version
-
11704901333 Warning Label, Load. English VersionWarning Label, Load. English Version
-
12704901418 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
13704901444 Warning Decal, Public Road Use. EuropeWarning Decal, Public Road Use. Europe
-
14704900006 Warning Label, Passenger, French. French VersionWarning Label, Passenger, French. French Version
-
15704901177 International Decal, Multilingual. EuropeInternational Decal, Multilingual. Europe
-
16704901334 Warning Label, Load. French VersionWarning Label, Load. French Version
-
17704901158 Warning Label, Public Road Use. EuropeWarning Label, Public Road Use. Europe
-
18715000748 Central Pannel. Yellow EuropeCentral Pannel. Yellow Europe
-
18715000750 Central Pannel. Red North America_Red InternationalCentral Pannel. Red North America_Red International
-
18715000752 Yellow, Central Pannel. Yellow North America_Yellow InternationalYellow, Central Pannel. Yellow North America_Yellow International
-
18715000754 Central Pannel. Red EuropeCentral Pannel. Red Europe
-
19704901438 Transport Canada Label. BilingualTransport Canada Label. Bilingual
-
20704901308 Caution Label, Lever And 4wd Switch. English VersionCaution Label, Lever And 4wd Switch. English Version
-
21704900089 Warning Label, Performance. English VersionWarning Label, Performance. English Version
-
22704901330 Caution Label, Shifting Lever. French VersionCaution Label, Shifting Lever. French Version
-
23704901332 Caution Label, 4wd Switch. French VersionCaution Label, 4wd Switch. French Version
-
24704900105 Warning Label, Performance. French VersionWarning Label, Performance. French Version
