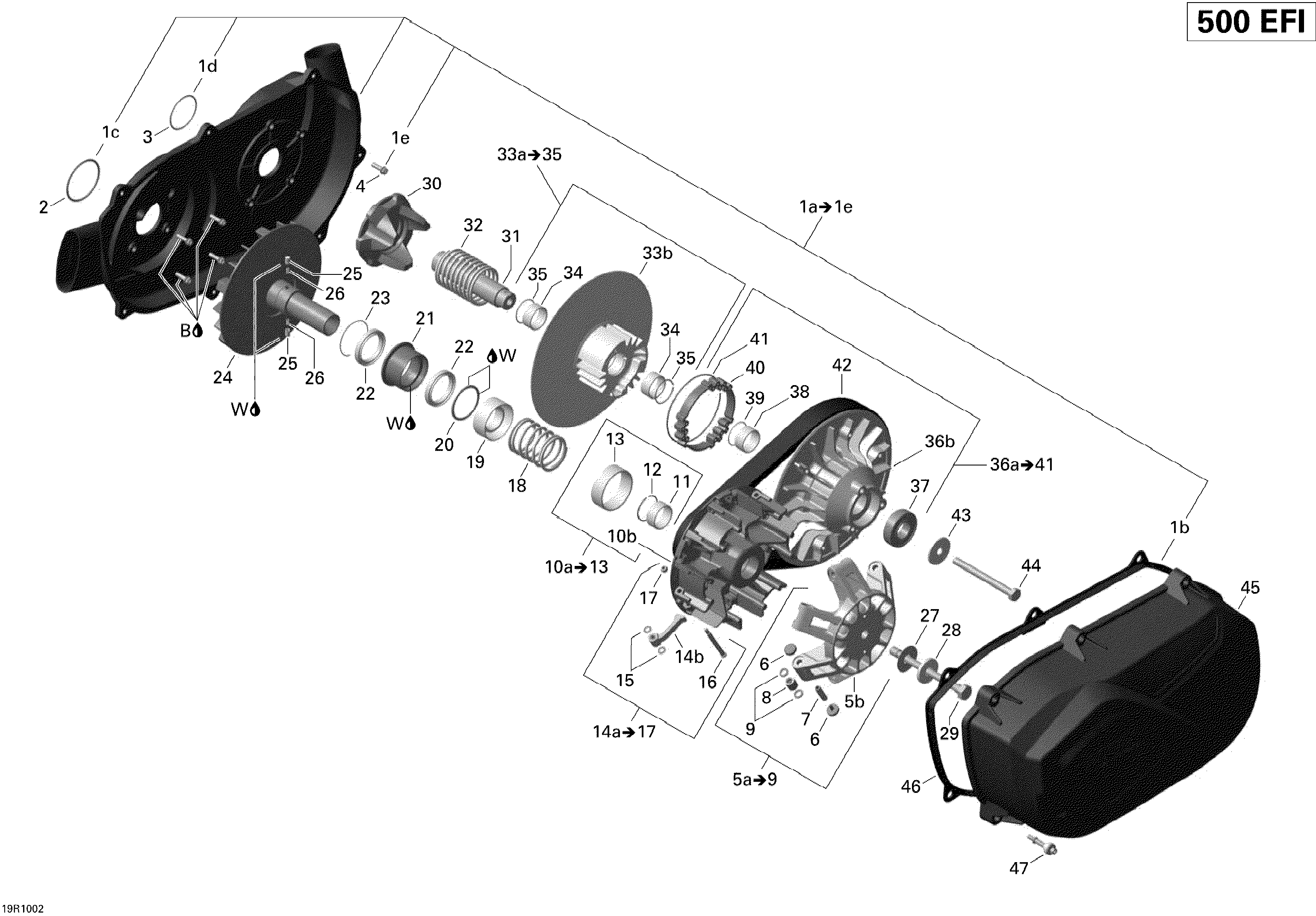

05- Transmission для BRP Renegade 500 EFI - 2010
-
№АртикулНазвание
-
1a420611404 CVT Air Guide Kit. Includes 1a to 1eCVT Air Guide Kit. Includes 1a to 1e
-
1b420430123 GasketGasket
-
1c420430407 O-RingO-Ring
-
1d420631087 O-RingO-Ring
-
1e420940566 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
2420430407 O-RingO-Ring
-
3420631087 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5a420280157 Governor Cup Ass'y. Includes 5a to 9Governor Cup Ass'y. Includes 5a to 9
-
6420281293 Slider Shoe SetSlider Shoe Set
-
7420233893 Roller SleeveRoller Sleeve
-
8420229996 RollerRoller
-
9420626231 Thrust WasherThrust Washer
-
10a420280313 Outer Half Ass'y. Includes 10a to 13Outer Half Ass'y. Includes 10a to 13
-
14a420248555 Centrifugal Lever Set. Includes 14a to 17Centrifugal Lever Set. Includes 14a to 17
-
18420238166 Compression SpringCompression Spring
-
19420627577 Spring SeatSpring Seat
-
20420460430 Friction WasherFriction Washer
-
21420257195 Drive Pulley ClutchDrive Pulley Clutch
-
22420632375 Ball BearingBall Bearing
-
23420245951 Retaining RingRetaining Ring
-
24420280374 Inner HalfInner Half
-
25420229577 Spring SleeveSpring Sleeve
-
26420239133 SpringSpring
-
27420627920 Thrust WasherThrust Washer
-
28420627765 Spring WasherSpring Washer
-
29420641855 Hex. Screw M12 X 135Hex. Screw M12 X 135
-
30420280199 Driven Pulley CamDriven Pulley Cam
-
31420220914 Driven Pulley ShaftDriven Pulley Shaft
-
32420238173 Compression Spring, Driven PulleyCompression Spring, Driven Pulley
-
33a420248233 Inner Half Ass'y. Includes 33a to 35Inner Half Ass'y. Includes 33a to 35
-
36a420280173 Outer Half Pulley Ass'y. Includes 36a to 41Outer Half Pulley Ass'y. Includes 36a to 41
-
37420932421 Ball BearingBall Bearing
-
40420660121 Torque GearTorque Gear
-
41420245910 Retaining RingRetaining Ring
-
42715000302 V-BeltV-Belt
-
43420627590 Thrust WasherThrust Washer
-
44420941909 Hex. Screw M10 X 110Hex. Screw M10 X 110
-
45420611390 Variator CoverVariator Cover
-
46420430123 GasketGasket
-
47420440560 Torx Screw M6 X 30.5Torx Screw M6 X 30.5
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
W293550021 Isoflex Grease, TOPAS NB52, 50 gIsoflex Grease, TOPAS NB52, 50 g
