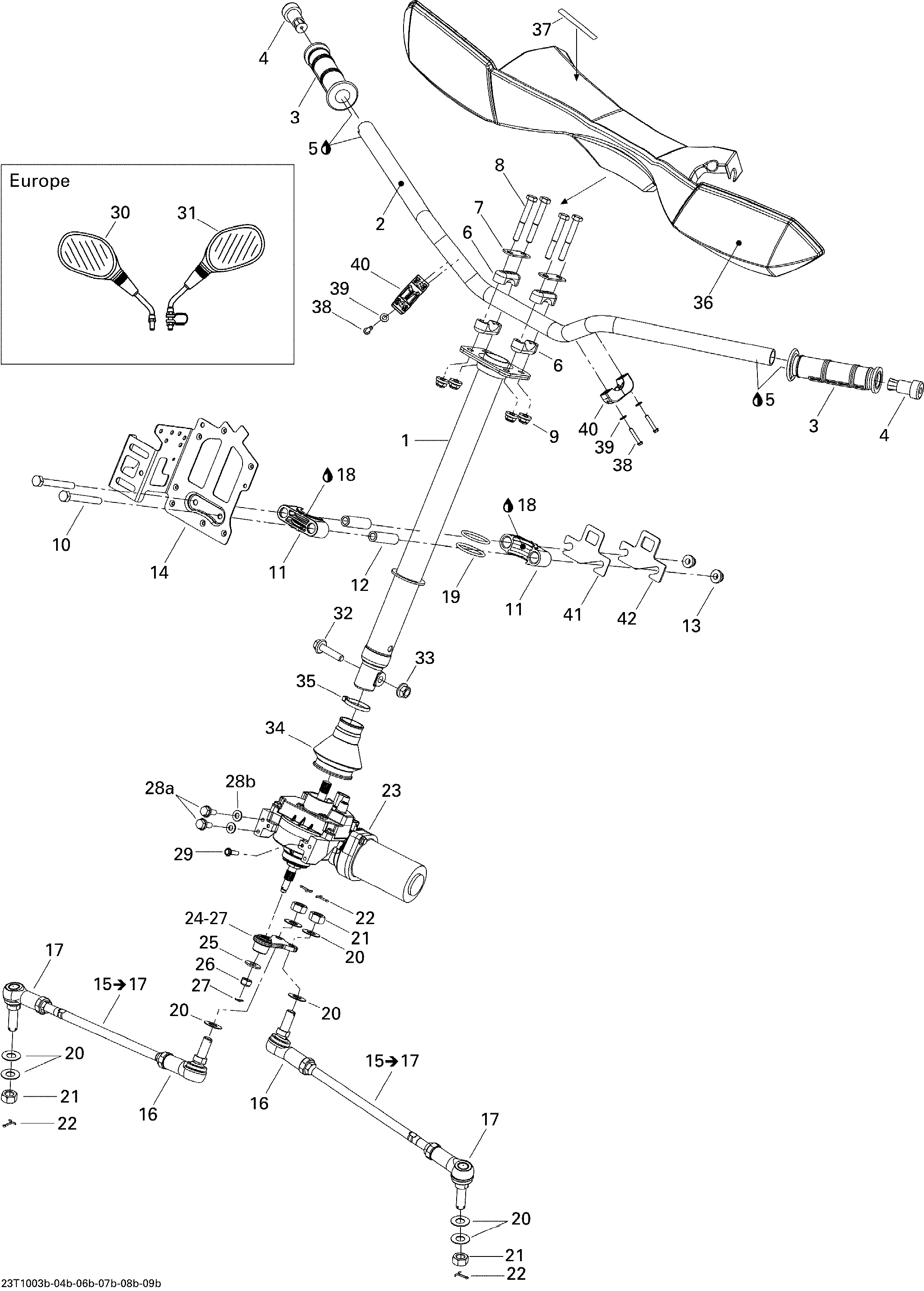

07- Steering XT, XT-P для BRP Outlander Max 800R EFI - 2010
-
№АртикулНазвание
-
1709400766 Main TubeMain Tube
-
2709400292 Handle Bar, BlackHandle Bar, Black
-
3709400493 Handle GripHandle Grip
-
4709400449 End PieceEnd Piece
-
5293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
6506151622 Steering SupportSteering Support
-
7709400509 StiffnerStiffner
-
8207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
9233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
10207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
11709400471 Half BushingHalf Bushing
-
12709400072 BushingBushing
-
13233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
14709400751 Module SupportModule Support
-
15709400485 Tie Rod Ass'y. Includes 15 to 17Tie Rod Ass'y. Includes 15 to 17
-
16709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
17709400487 Ball Joint, RH ThreadsBall Joint, RH Threads
-
18293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
19293300068 O-RingO-Ring
-
20706200281 Hardened WasherHardened Washer
-
21250100099 Nut M12Nut M12
-
22211400013 Cotter PinCotter Pin
-
23709400816 Electric Power Steering Module Ass'yElectric Power Steering Module Ass'y
-
24703500784 Lower Main Tube Kit. Includes 24 to 27Lower Main Tube Kit. Includes 24 to 27
-
28a207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
28b234281474 Conical Spring Washer M8Conical Spring Washer M8
-
29210252040 Hex. Forming ScrewHex. Forming Screw
-
30709400406 LH Mirror. EuropeLH Mirror. Europe
-
31709400407 RH Mirror. EuropeRH Mirror. Europe
-
32207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
33233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
34709400674 BellowsBellows
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36709400398 Handle Bar ProtectorHandle Bar Protector
-
37704901558 Dynamic Power Steering DecalDynamic Power Steering Decal
-
38241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
39211200035 Flat WasherFlat Washer
-
40517303264 U-ClampU-Clamp
-
41709400734 Shim 2 mmShim 2 mm
-
42709400735 Shim 1 mmShim 1 mm
