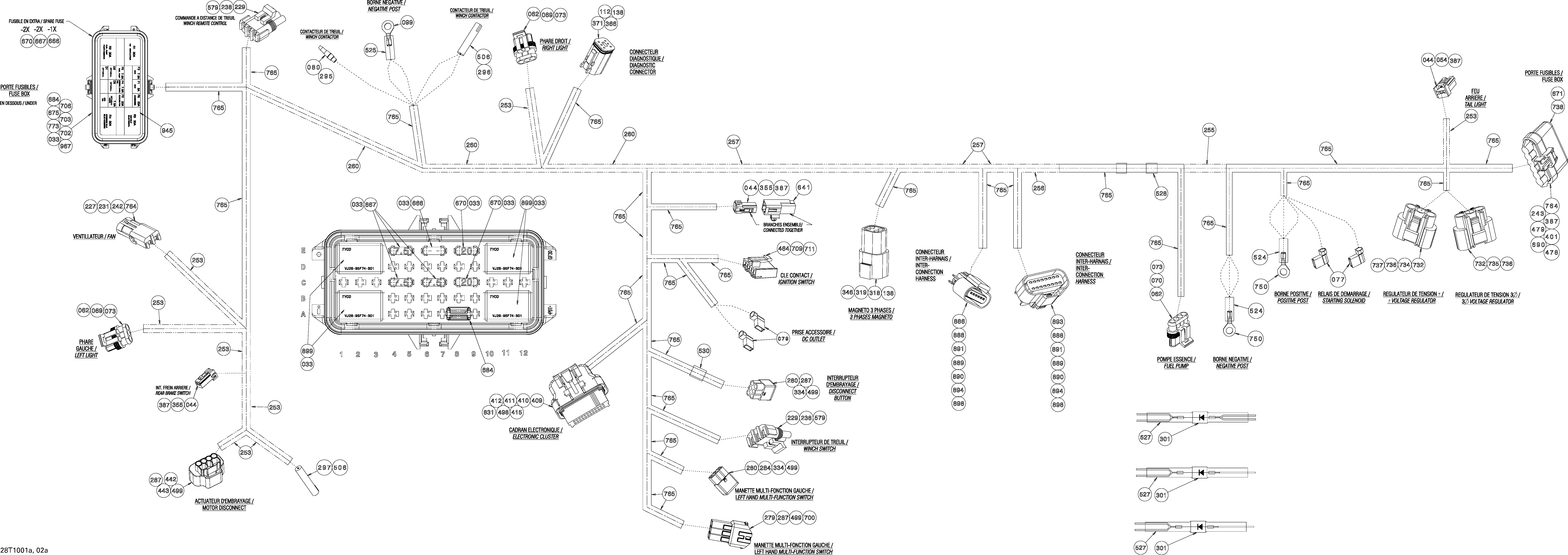

10- Main Harness для BRP Outlander Max 400 EFI - 2010
-
№АртикулНазвание
-
1710001500 Main Harness. International, Includes 1 to 967Main Harness. International, Includes 1 to 967
-
1710001669 Main Harness. Canada/Usa, Includes 1 to 1028Main Harness. Canada/Usa, Includes 1 to 1028
-
33278000999 Wire SealWire Seal
-
44515175231 Female TerminalFemale Terminal
-
54515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
62278001014 Female TerminalFemale Terminal
-
69409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
70409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
73278001013 Wire SealWire Seal
-
77409010300 Female TerminalFemale Terminal
-
79710000038 Female TerminalFemale Terminal
-
80278000230 Male TerminalMale Terminal
-
99278000992 Open BarrelOpen Barrel
-
112278000632 Female TerminalFemale Terminal
-
138293000052 Sealing CapSealing Cap
-
227409004300 Male TerminalMale Terminal
-
229278000223 Female TerminalFemale Terminal
-
231278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
238278000273 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
242278000218 Wire SealWire Seal
-
243710000048 Wire SealWire Seal
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
255409901800 Tubing 13 mmTubing 13 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
257409901600 Tubing 19 mmTubing 19 mm
-
260515175319 Tubing 22 mm. Canada/UsaTubing 22 mm. Canada/Usa
-
279409011300 Male TerminalMale Terminal
-
280409012100 Female TerminalFemale Terminal
-
286409012300 SealSeal
-
287710000080 CapCap
-
295278001008 Insulated SheathInsulated Sheath
-
296278000770 Insulated SheathInsulated Sheath
-
297278001007 Insulated SheathInsulated Sheath
-
301409012700 DiodeDiode
-
318278001477 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
319515175568 Male TerminalMale Terminal
-
334710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
346278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
355515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
365515175672 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
366515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
371515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
401278001505 Wire SealWire Seal
-
409515175812 PlugPlug
-
410515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
411515175802 Retainer BlockRetainer Block
-
412515175803 Wire SealWire Seal
-
415515175806 Female TerminalFemale Terminal
-
442710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
443710000335 Female TerminalFemale Terminal
-
464710000274 Female TerminalFemale Terminal
-
478710000888 Housing, 6 CircuitsHousing, 6 Circuits
-
479710000889 LockLock
-
484415128501 SealSeal
-
498710000399 Female HousingFemale Housing
-
499710000402 Wire SealWire Seal
-
506710000421 Female TerminalFemale Terminal
-
524512059668 Shrink TubingShrink Tubing
-
525710000482 Shrink TubingShrink Tubing
-
579710000504 Wire SealWire Seal
-
641710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
666710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
667710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
670710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
671710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
672710000748 DiodeDiode
-
675710000660 Fuse Box Ass'yFuse Box Ass'y
-
684710000781 Fuse PullerFuse Puller
-
690710000890 Female TerminalFemale Terminal
-
700710000835 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
702710000836 Female TerminalFemale Terminal
-
703710000837 Female TerminalFemale Terminal
-
706710000840 CapCap
-
709710000848 LockLock
-
711710000849 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
732710000877 TerminalTerminal
-
734710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
735710000880 Housing, 3 CircuitsHousing, 3 Circuits
-
736710000881 SealSeal
-
737710000882 CapCap
-
738710000897 CoverCover
-
750710000913 TerminalTerminal
-
757278001665 Female Terminal. InternationalFemale Terminal. International
-
764710000992 ClipClip
-
773710001026 Fuse CoverFuse Cover
-
831710001131 Female TerminalFemale Terminal
-
886710001232 HousingHousing
-
888710001230 SealSeal
-
889710001233 SealSeal
-
890710001229 TerminalTerminal
-
891710001228 TerminalTerminal
-
893710001226 HousingHousing
-
894710001225 CapCap
-
898710001221 LockLock
-
899278002168 Relay, 30 AMPRelay, 30 AMP
-
945710001372 Fuse/Relay DecalFuse/Relay Decal
-
967278002172 FoamFoam
-
1028710001635 Terminal. Canada/UsaTerminal. Canada/Usa
