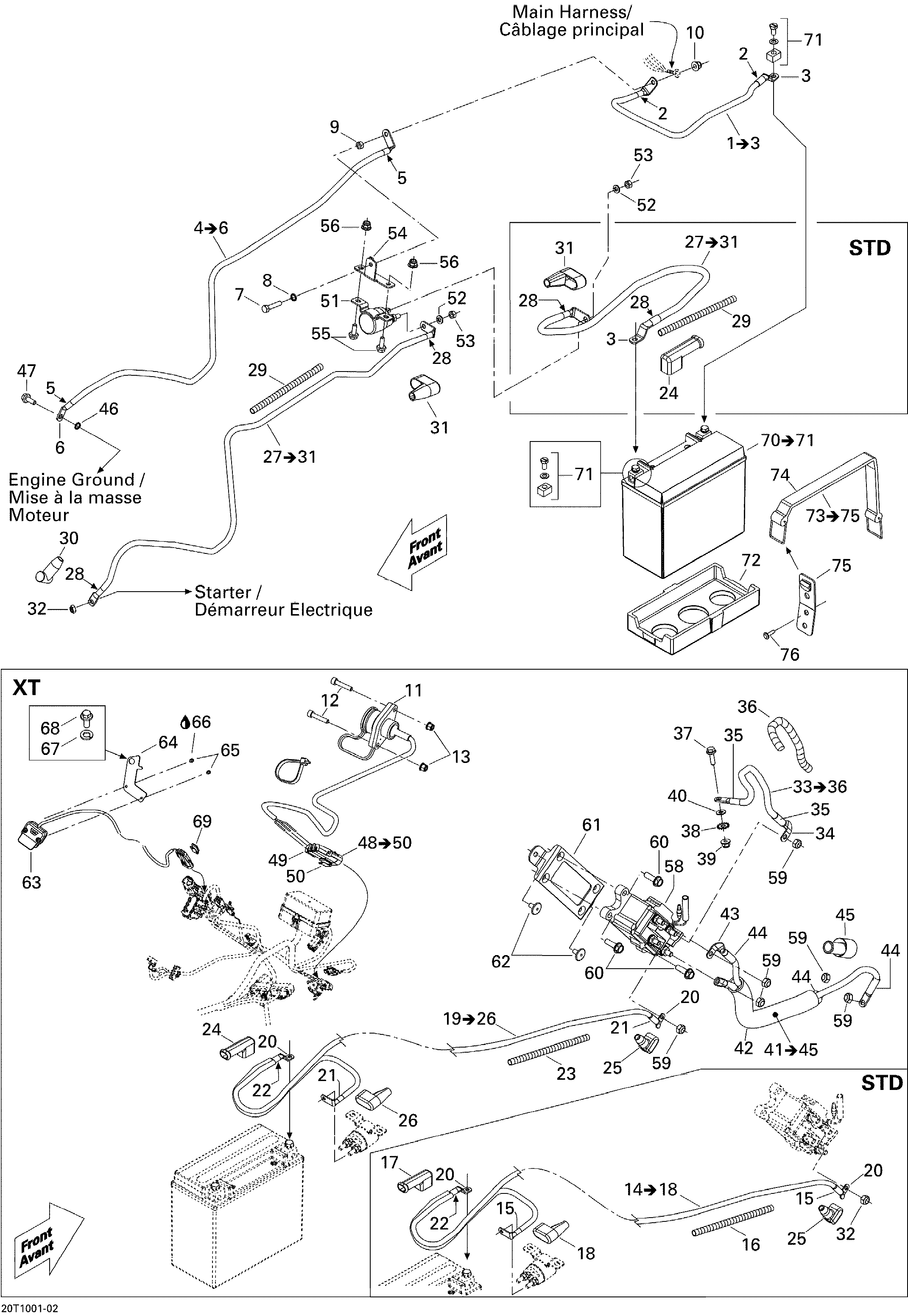

10- Electrical System для BRP Outlander Max 400 EFI - 2010
-
№АртикулНазвание
-
1710000830 Ground Cable, Battery/frame. Includes 1 to 3Ground Cable, Battery/frame. Includes 1 to 3
-
2710000483 Shrink TubingShrink Tubing
-
3710000518 Open BarrelOpen Barrel
-
4710001444 Ground Cable. MAX, Includes 4 to 6Ground Cable. MAX, Includes 4 to 6
-
5710000483 Shrink TubingShrink Tubing
-
6710000540 Open BarrelOpen Barrel
-
7207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
8234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
9232061414 Hex. Nut M6Hex. Nut M6
-
10233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
11710001023 Winch Connector. XTWinch Connector. XT
-
12205052588 Socket Head Screw M5 X 25. XTSocket Head Screw M5 X 25. XT
-
13233251414 Hex. Flanged Elastic Nut M5. XTHex. Flanged Elastic Nut M5. XT
-
14710001822 Positive Cable. STD, Includes 14 to 18Positive Cable. STD, Includes 14 to 18
-
15710000483 Shrink TubingShrink Tubing
-
16710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
17710001829 Protector CapProtector Cap
-
18710001817 Protector CapProtector Cap
-
19710001824 Positive Cable. MAX XT, Includes 19 to 26Positive Cable. MAX XT, Includes 19 to 26
-
20710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
21710000483 Shrink TubingShrink Tubing
-
22275500578 Shrink TubingShrink Tubing
-
23710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
24710001829 Protector CapProtector Cap
-
25710001828 Protector CapProtector Cap
-
26710001817 Protector CapProtector Cap
-
27710001821 Positive Cable. MAX, Includes 27 to 31Positive Cable. MAX, Includes 27 to 31
-
28710000483 Shrink TubingShrink Tubing
-
29710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
30710000526 Protector CapProtector Cap
-
31710001817 Protector CapProtector Cap
-
32232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
33710000455 Negative Cable. XT, Includes 33 to 36Negative Cable. XT, Includes 33 to 36
-
34710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
35710000483 Shrink TubingShrink Tubing
-
36710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
37207662044 Hex. Flanged Screw M6 X 20. XTHex. Flanged Screw M6 X 20. XT
-
38250200041 Lock Washer Serrated M6. XTLock Washer Serrated M6. XT
-
39233261414 Hex. Flanged Elastic Nut M6. XTHex. Flanged Elastic Nut M6. XT
-
40224061121 Flat Washer. XTFlat Washer. XT
-
41710001251 Winch Cables. XT, Includes 41 to 45Winch Cables. XT, Includes 41 to 45
-
42409901600 Tubing 19 mmTubing 19 mm
-
43710000476 Open Barrel, 6.6 mmOpen Barrel, 6.6 mm
-
44710000483 Shrink TubingShrink Tubing
-
45515175919 Protector CapProtector Cap
-
46234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
47207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
48710001059 Connector Ass'y. XT, Includes 48 to 50Connector Ass'y. XT, Includes 48 to 50
-
49278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
50710000992 ClipClip
-
51710001364 Starter RelayStarter Relay
-
52234161601 Lock Washer Helical M6Lock Washer Helical M6
-
53232061600 Hex. Nut M6Hex. Nut M6
-
54710001260 Solenoid SupportSolenoid Support
-
55207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
56233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
57710001447 Flasher Unit. EuropeFlasher Unit. Europe
-
58710001000 Winch Solenoid. XTWinch Solenoid. XT
-
59232561414 Elastic Stop Nut M6. XTElastic Stop Nut M6. XT
-
60210262080 Hex. Forming Screw M6 X 20. XTHex. Forming Screw M6 X 20. XT
-
61710001261 Relay Support. XTRelay Support. XT
-
62390406500 Pop Rivet 3/16''. XTPop Rivet 3/16''. XT
-
63710001001 Winch Interrupter. XTWinch Interrupter. XT
-
64710000755 Winch Interrupter Support. XTWinch Interrupter Support. XT
-
65250000153 Hex. Cap Screw 6-32 X 1/4''. XTHex. Cap Screw 6-32 X 1/4''. XT
-
66293800060 Loctite 243, 10 ml. XTLoctite 243, 10 ml. XT
-
67234101601 Helicoidal Lock Washer M10. XTHelicoidal Lock Washer M10. XT
-
68250000029 Hex. Screw M10 X 16. XTHex. Screw M10 X 16. XT
-
69710000992 Clip. XTClip. XT
-
70410301203 Battery, 18 AmperesBattery, 18 Amperes
-
71295500849 Battery Fastener KitBattery Fastener Kit
-
72710000279 Insulator PadInsulator Pad
-
74293850097 Retainer StrapRetainer Strap
-
75293850030 Strap ClipStrap Clip
-
76390402400 Pop Rivet 3/16''Pop Rivet 3/16''
