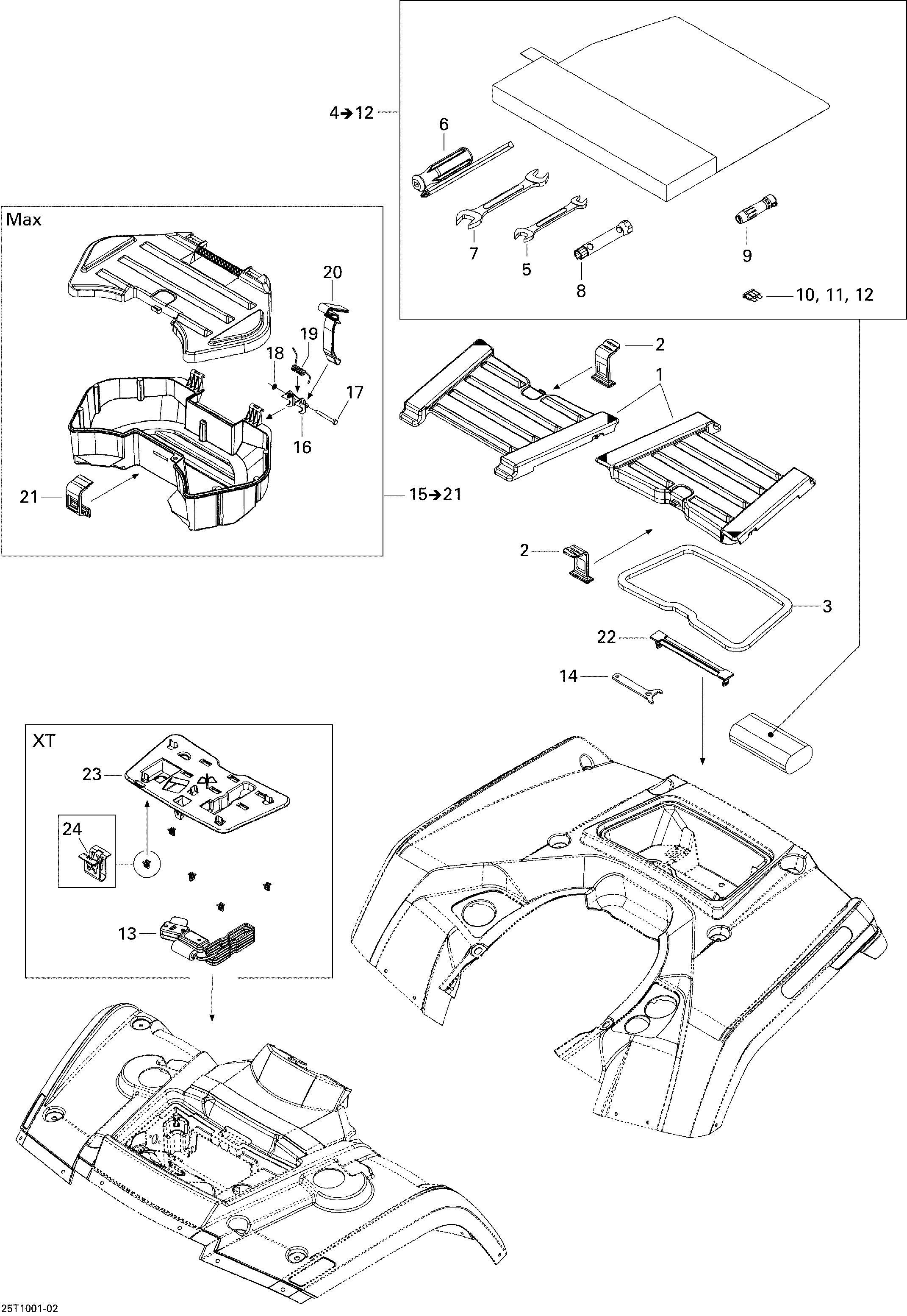

09- Front and Rear Trays для BRP Outlander Max 400 EFI - 2010
-
№АртикулНазвание
-
1705001853 Storage CoverStorage Cover
-
2708200120 Cover LatchCover Latch
-
3293250192 Neoprene SealNeoprene Seal
-
4704700096 Tool Kit. Includes 4 to 12Tool Kit. Includes 4 to 12
-
5529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
6529000004 Driver ScrewDriver Screw
-
7529000003 Fork Wrench 15/17 mmFork Wrench 15/17 mm
-
8529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
9704700003 Pressure GaugePressure Gauge
-
10410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
11409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
12278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
13710001002 Remote Control. XTRemote Control. XT
-
14529000035 Adjustement WrenchAdjustement Wrench
-
15708200119 Box Ass'y. Includes 15 to 21Box Ass'y. Includes 15 to 21
-
16708200066 LatchLatch
-
17207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
18732610072 Push NutPush Nut
-
19708000369 SpringSpring
-
20510004495 BeltBelt
-
21708200120 Cover LatchCover Latch
-
22708200121 Cover Latch KitCover Latch Kit
-
23708200075 Support. XTSupport. XT
-
24517302785 Clip. XTClip. XT
