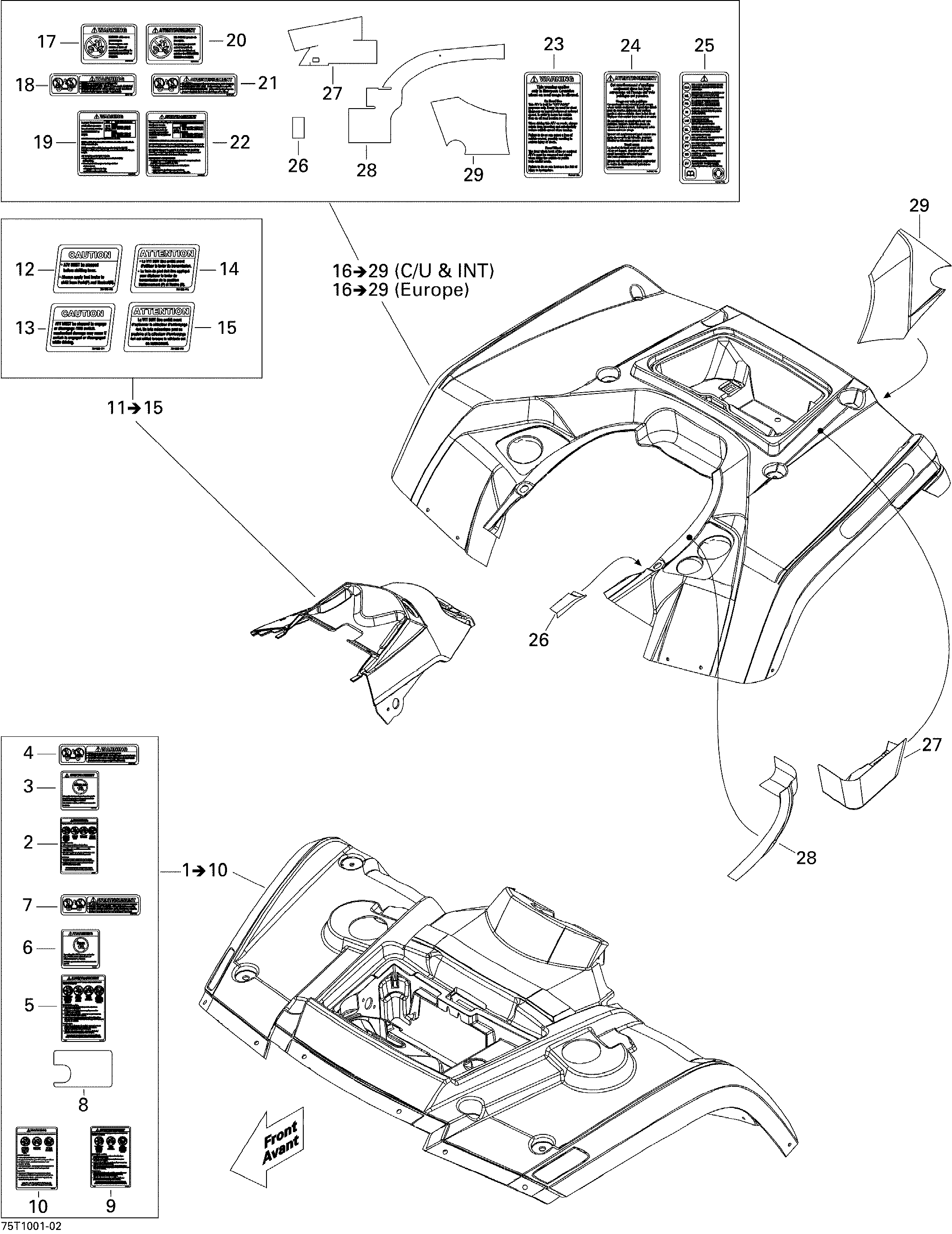

09- Fender And Central Panel Kit для BRP Outlander Max 400 EFI - 2010
-
№АртикулНазвание
-
1715000773 Front Fender Kit, Yellow. Includes 1 to 10, Yellow ModelFront Fender Kit, Yellow. Includes 1 to 10, Yellow Model
-
1715000776 Front Fender Kit, Viper Red. Includes 1 to 10, Viper Red ModelFront Fender Kit, Viper Red. Includes 1 to 10, Viper Red Model
-
1715001037 Front Fender Kit, Green. Includes 1 to 10, Green ModelFront Fender Kit, Green. Includes 1 to 10, Green Model
-
2704901878 Warning Decal, Death And Injuries. English VersionWarning Decal, Death And Injuries. English Version
-
3704900011 Warning Decal, Under 16 Years Old. English VersionWarning Decal, Under 16 Years Old. English Version
-
4704901089 Warning Decal, Load. English VersionWarning Decal, Load. English Version
-
5704900002 Warning Label, Death And Injuries. French VersionWarning Label, Death And Injuries. French Version
-
6704900012 Warning Label, Under 16 Years Old. French VersionWarning Label, Under 16 Years Old. French Version
-
7704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
8705002492 Reflective SheetReflective Sheet
-
8705003830 Reflective Sheet. Green ModelReflective Sheet. Green Model
-
9704901441 Warning Label, Death And Injuries. French VersionWarning Label, Death And Injuries. French Version
-
10704901875 Warning Decal, Death And Injuries. English VersionWarning Decal, Death And Injuries. English Version
-
11705000789 Central Panel Kit, Black. Includes 11 to 15Central Panel Kit, Black. Includes 11 to 15
-
12704900434 Caution Decal, Lever And 4wd Switch. English VersionCaution Decal, Lever And 4wd Switch. English Version
-
13704900471 Caution Label, 4wd Switch. English VersionCaution Label, 4wd Switch. English Version
-
14704900475 Caution Label, Shifting Lever. French VersionCaution Label, Shifting Lever. French Version
-
15704900476 Caution Label, 4wd Switch. French VersionCaution Label, 4wd Switch. French Version
-
16715000798 Rear Fender Kit, Red. Includes 16 to 29, Viper Red ModelRear Fender Kit, Red. Includes 16 to 29, Viper Red Model
-
16715000793 Rear Fender Kit, Yellow. Includes 16 to 29, Yellow ModelRear Fender Kit, Yellow. Includes 16 to 29, Yellow Model
-
16715001035 Rear Fender Kit, Green. Includes 16 to 29, Green ModelRear Fender Kit, Green. Includes 16 to 29, Green Model
-
16715000800 Rear Fender Kit, Red. Includes 16 to 29, Viper Red Model, EuropeRear Fender Kit, Red. Includes 16 to 29, Viper Red Model, Europe
-
16715000795 Rear Fender Kit, Yellow. Includes 16 to 29, Yellow Model, EuropeRear Fender Kit, Yellow. Includes 16 to 29, Yellow Model, Europe
-
17704900005 Warning Decal, Passenger. English VersionWarning Decal, Passenger. English Version
-
18704901089 Warning Decal, Load. English VersionWarning Decal, Load. English Version
-
19704901275 Warning Decal, Tire Pressure. English VersionWarning Decal, Tire Pressure. English Version
-
20704900006 Warning Label, Passenger, French. French VersionWarning Label, Passenger, French. French Version
-
21704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
22704901279 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
23704901444 Warning Decal, Public Road Use. English Version, EuropeWarning Decal, Public Road Use. English Version, Europe
-
24704901158 Warning Label, Public Road Use. French Version, EuropeWarning Label, Public Road Use. French Version, Europe
-
25704901177 International Decal, Multilingual. Multilingual Version, EuropeInternational Decal, Multilingual. Multilingual Version, Europe
-
26705000809 Reflective SheetReflective Sheet
-
27705002189 Reflective SheetReflective Sheet
-
28705002085 Reflective SheetReflective Sheet
-
29705003087 Reflective SheetReflective Sheet
