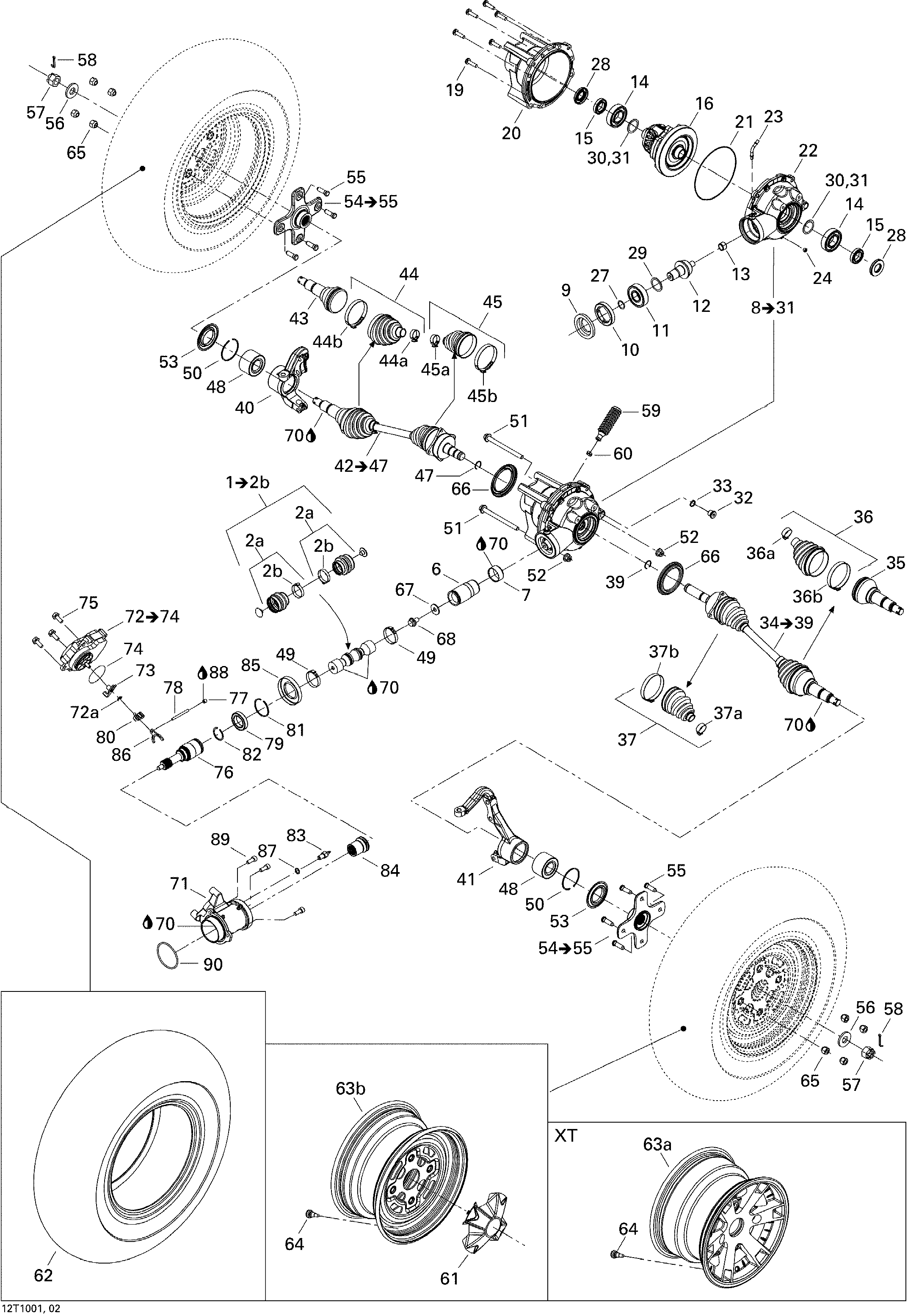

07- Drive System, Front для BRP Outlander Max 400 EFI - 2010
-
№АртикулНазвание
-
1705400337 Front Drive Axle Ass'y. Includes 1 to 2bFront Drive Axle Ass'y. Includes 1 to 2b
-
2a703500255 Rubber Boot KitRubber Boot Kit
-
2b293650138 Oetiker ClampOetiker Clamp
-
6705400149 Coupling SleeveCoupling Sleeve
-
7705400036 Wear RingWear Ring
-
8705400723 Differential Ass'y. Includes 8 to 31Differential Ass'y. Includes 8 to 31
-
9705400027 Oil SealOil Seal
-
10705400661 NutNut
-
11705500260 Ball BearingBall Bearing
-
12705501051 10 Teeth Pinion10 Teeth Pinion
-
13705500261 Needle BearingNeedle Bearing
-
14705500259 Ball BearingBall Bearing
-
15293350044 Ball BearingBall Bearing
-
16705400645 DifferentialDifferential
-
19705500892 ScrewScrew
-
20705400297 Front CoverFront Cover
-
21705500265 SealSeal
-
22705400646 Front CoverFront Cover
-
23705500893 Vent ValveVent Valve
-
24705500894 Drain PlugDrain Plug
-
27705500267 O-RingO-Ring
-
28705500255 Oil SealOil Seal
-
29703500049 Pinion Shim KitPinion Shim Kit
-
29705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
30703500288 Differential Shim KitDifferential Shim Kit
-
31703500050 Differential Shim KitDifferential Shim Kit
-
32250400041 Screw PlugScrew Plug
-
33705500506 Copper WasherCopper Washer
-
34705400660 RH Homocinetic Joint. Includes 34 to 39RH Homocinetic Joint. Includes 34 to 39
-
35705500560 CV JointCV Joint
-
36705400511 Wheel Boot KitWheel Boot Kit
-
36a293650192 Oetiker ClampOetiker Clamp
-
36b293650194 Oetiker ClampOetiker Clamp
-
37705400512 Differential Boot KitDifferential Boot Kit
-
37a293650192 Oetiker ClampOetiker Clamp
-
37b293650193 Oetiker ClampOetiker Clamp
-
39705400042 CirclipCirclip
-
40705400816 LH KnuckleLH Knuckle
-
41705400818 RH KnuckleRH Knuckle
-
42705400659 LH Homocinetic Joint. Includes 42 to 47LH Homocinetic Joint. Includes 42 to 47
-
43705500560 CV JointCV Joint
-
44705400511 Wheel Boot KitWheel Boot Kit
-
44a293650192 Oetiker ClampOetiker Clamp
-
44b293650194 Oetiker ClampOetiker Clamp
-
45705400512 Differential Boot KitDifferential Boot Kit
-
45a293650192 Oetiker ClampOetiker Clamp
-
45b293650193 Oetiker ClampOetiker Clamp
-
47705400042 CirclipCirclip
-
48293350040 Cone BearingCone Bearing
-
49293650138 Oetiker ClampOetiker Clamp
-
50293370019 CirclipCirclip
-
51230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
52233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
53705501121 Wear SleeveWear Sleeve
-
54705501131 Wheel Hub Ass'y. Includes 54 to 55Wheel Hub Ass'y. Includes 54 to 55
-
55250300034 Wheel StudWheel Stud
-
56250200049 Spring WasherSpring Washer
-
57250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
58250400036 Cotter PinCotter Pin
-
59705400552 Rubber BellowRubber Bellow
-
60293650042 Oetiker ClampOetiker Clamp
-
61705400504 Wheel Cap. XTWheel Cap. XT
-
61705400563 Wheel Cap. STDWheel Cap. STD
-
62705400009 Front Tire. STDFront Tire. STD
-
62705400326 Front Tire. XT EuropeFront Tire. XT Europe
-
62705400606 Front Tire. XTFront Tire. XT
-
62705400607 Front Tire. STD EuropeFront Tire. STD Europe
-
63a705400666 Front Rim. XT Europe, InternationalFront Rim. XT Europe, International
-
63a705400667 Front Rim. XT North AmericaFront Rim. XT North America
-
63b705400689 Front Rim. STDFront Rim. STD
-
64705400193 Rim ValveRim Valve
-
65250100042 Wheel Nut. STDWheel Nut. STD
-
65250100082 Chrome Wheel Nut M10 X 1.25. XT North AmericaChrome Wheel Nut M10 X 1.25. XT North America
-
65250100100 Black Wheel Nut M10 X 1.25. XT Europe, InternationalBlack Wheel Nut M10 X 1.25. XT Europe, International
-
66705400780 Wear SleeveWear Sleeve
-
67250200102 Flat Washer M12Flat Washer M12
-
68250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
70293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
71705400169 HousingHousing
-
72705400581 Actuator Ass'y. Includes 72 to 74Actuator Ass'y. Includes 72 to 74
-
72a415129176 CirclipCirclip
-
73705400274 ForkFork
-
74293300117 O-RingO-Ring
-
75250000137 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
76705400172 Union ShaftUnion Shaft
-
77206580890 Pressure Screw M8 X 8Pressure Screw M8 X 8
-
78250400025 Dowell PinDowell Pin
-
79705400249 Ball BearingBall Bearing
-
80705400538 SliderSlider
-
81293370029 CirclipCirclip
-
82293370030 CirclipCirclip
-
83710000324 SwitchSwitch
-
84705400389 Coupling SleeveCoupling Sleeve
-
85293250138 Oil SealOil Seal
-
86705400387 Shifter PlateShifter Plate
-
87705600310 Copper WasherCopper Washer
-
88293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
89250000136 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
90293300091 O-RingO-Ring
