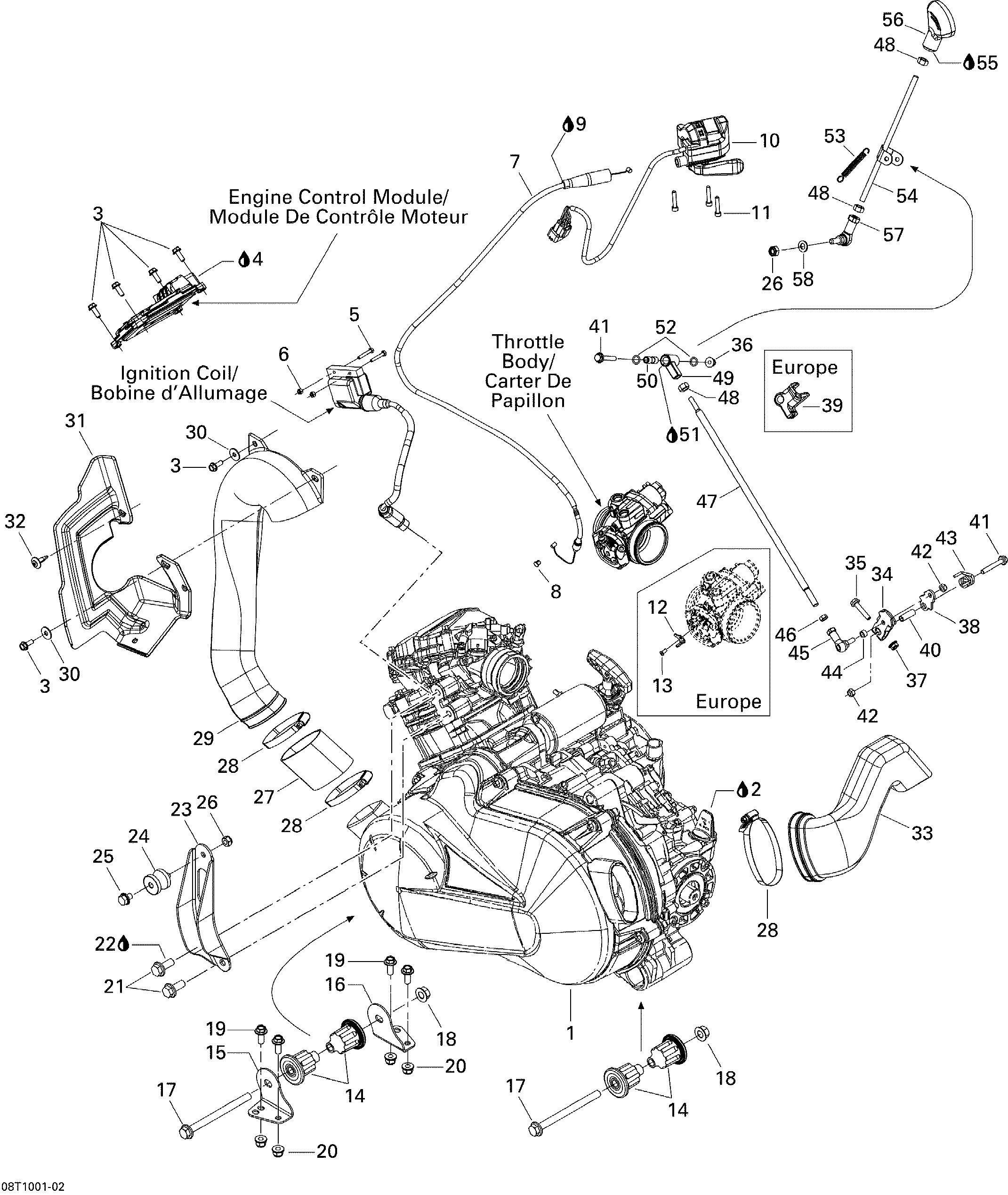

01- Engine And Engine Support для BRP Outlander Max 400 EFI - 2010
-
№АртикулНазвание
-
1420040030 Engine Long Block, 400 EFIEngine Long Block, 400 EFI
-
3210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
5207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
6232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
7707000539 Throttle CableThrottle Cable
-
8707000434 Cable GuideCable Guide
-
9293600041 Cable Lubricant, 400 gCable Lubricant, 400 g
-
10707000595 Throttle HandleThrottle Handle
-
11205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
12707000658 Speed Limiter. EuropeSpeed Limiter. Europe
-
13250000332 Screw M4 X 8. EuropeScrew M4 X 8. Europe
-
14707000655 Anti-vibration PadAnti-vibration Pad
-
15707000802 Engine BracketEngine Bracket
-
16707000803 Engine BracketEngine Bracket
-
17230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
18233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
19207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
20233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
21207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
22293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
23707000224 Upper Engine BracketUpper Engine Bracket
-
24274000839 Rubber IsolatorRubber Isolator
-
25207581046 Flanged Screw M8 x 10 (Scotch Grip)Flanged Screw M8 x 10 (Scotch Grip)
-
26232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
27707000719 Flexible AdaptorFlexible Adaptor
-
28293650206 ClampClamp
-
29707000540 Air IntakeAir Intake
-
30250200082 Flat WasherFlat Washer
-
31707000697 CVT Water DeflectorCVT Water Deflector
-
32414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
33707000718 Air OutletAir Outlet
-
34707000503 LeverLever
-
35207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
38707000507 Pivot PlatePivot Plate
-
39707000676 Pivot. EuropePivot. Europe
-
40293900079 BushingBushing
-
41207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
42232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
43707000310 SpringSpring
-
44293900029 BushingBushing
-
45707000545 LH Ball JointLH Ball Joint
-
46232066414 LH Hex. Nut M6LH Hex. Nut M6
-
47707000567 Threaded RodThreaded Rod
-
48232081414 Hex. Nut M8Hex. Nut M8
-
49707000568 Pivot. All Except EuropePivot. All Except Europe
-
50293900075 BushingBushing
-
51293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
52414583300 O-RingO-Ring
-
53707000569 SpringSpring
-
54707000786 Lever ArmLever Arm
-
55293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
56707000284 Lever HandleLever Handle
-
57707000546 RH Ball JointRH Ball Joint
-
58234081410 Flat Washer 8 mmFlat Washer 8 mm
