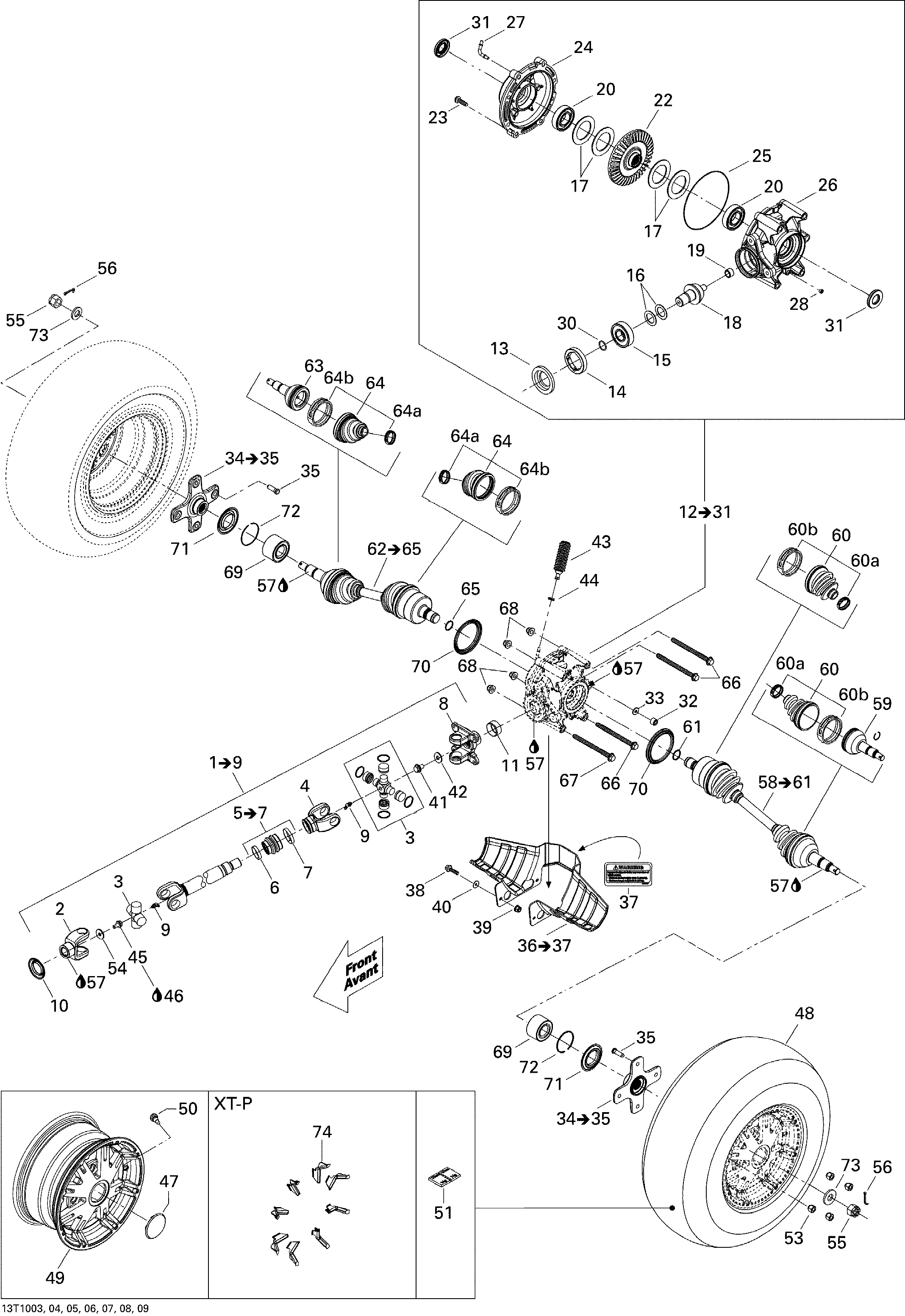

08- Drive System, Rear для BRP Outlander 800R EFI - 2010

  • №
    Артикул
    Название
  • 1
    703500719 Rear Propeller Shaft Kit. Includes 1 to 9, OUTLANDER
    Rear Propeller Shaft Kit. Includes 1 to 9, OUTLANDER
  • 2
    705500371 Fix Joint
    Fix Joint
  • 3
    703000022 Unit Pack Kit
    Unit Pack Kit
  • 4
    705501072 Sliding Joint
    Sliding Joint
  • 5
    703500255 Rubber Boot Kit
    Rubber Boot Kit
  • 7
    293650138 Oetiker Clamp
    Oetiker Clamp
  • 8
    705500526 Disc Joint
    Disc Joint
  • 9
    705500841 Grease Fitting
    Grease Fitting
  • 10
    705501123 Protector
    Protector
  • 11
    705400036 Wear Ring
    Wear Ring
  • 12
    705501047 Rear Differential Ass'y. Includes 12 to 31
    Rear Differential Ass'y. Includes 12 to 31
  • 13
    705400027 Oil Seal
    Oil Seal
  • 14
    705500987 Nut
    Nut
  • 15
    705500260 Ball Bearing
    Ball Bearing
  • 16
    705500075 Pinion Gear Shim .022''
    Pinion Gear Shim .022''
  • 16
    705501163 Pinion Gear Shim 2.12mm
    Pinion Gear Shim 2.12mm
  • 16
    703500049 Pinion Shim Kit
    Pinion Shim Kit
  • 17
    703500548 Differential Shim Kit
    Differential Shim Kit
  • 18
    705501051 10 Teeth Pinion
    10 Teeth Pinion
  • 19
    705500261 Needle Bearing
    Needle Bearing
  • 20
    705500749 Ball Bearing
    Ball Bearing
  • 22
    705501048 Gear, 36 Tooth
    Gear, 36 Tooth
  • 23
    705500892 Screw
    Screw
  • 24
    705501049 Rear Differential Cover
    Rear Differential Cover
  • 25
    705500265 Seal
    Seal
  • 26
    705501066 Rear Cover
    Rear Cover
  • 27
    705500893 Vent Valve
    Vent Valve
  • 28
    705500894 Drain Plug
    Drain Plug
  • 30
    705500267 O-Ring
    O-Ring
  • 31
    705501196 Oil Seal
    Oil Seal
  • 32
    250400041 Screw Plug
    Screw Plug
  • 33
    705500506 Copper Washer
    Copper Washer
  • 34
    705501131 Wheel Hub Ass'y. Includes 34 to 35
    Wheel Hub Ass'y. Includes 34 to 35
  • 35
    250300034 Wheel Stud
    Wheel Stud
  • 36
    703500722 Protector Kit. Includes 36 to 37
    Protector Kit. Includes 36 to 37
  • 37
    704900009 Warning Label, Hitch
    Warning Label, Hitch
  • 38
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 39
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 40
    250200082 Flat Washer
    Flat Washer
  • 41
    250000378 Hex Flanged Screw S.Grip M12 X 16
    Hex Flanged Screw S.Grip M12 X 16
  • 42
    250200102 Flat Washer M12
    Flat Washer M12
  • 43
    705400352 Rubber Bellow
    Rubber Bellow
  • 44
    293650042 Oetiker Clamp
    Oetiker Clamp
  • 45
    250000359 Hex Flanged Screw M12 x 16
    Hex Flanged Screw M12 x 16
  • 46
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
  • 47
    705400680 Wheel Cap
    Wheel Cap
  • 48
    705500606 Rear Tire. XT Europe (Except Camo), XT-P Europe
    Rear Tire. XT Europe (Except Camo), XT-P Europe
  • 48
    705500685 Rear Tire. STD
    Rear Tire. STD
  • 48
    705500938 Rear Tire. STD Europe
    Rear Tire. STD Europe
  • 48
    705500940 Rear Tire. XT, XT-P
    Rear Tire. XT, XT-P
  • 49
    705500986 Rear Wheel. XT (Except Camo)
    Rear Wheel. XT (Except Camo)
  • 49
    705501019 Rear Wheel. XT Camo, XT-P
    Rear Wheel. XT Camo, XT-P
  • 49
    705501188 Rear Wheel. STD
    Rear Wheel. STD
  • 50
    705400193 Rim Valve
    Rim Valve
  • 51
    705500824 Adhesive Weight, 1/2 Oz
    Adhesive Weight, 1/2 Oz
  • 53
    250100100 Black Wheel Nut M10 X 1.25. XT Camo, XT-P
    Black Wheel Nut M10 X 1.25. XT Camo, XT-P
  • 53
    250100082 Chrome Wheel Nut M10 X 1.25. STD, XT (Except Camo)
    Chrome Wheel Nut M10 X 1.25. STD, XT (Except Camo)
  • 54
    250200102 Flat Washer M12
    Flat Washer M12
  • 55
    250100047 Hex. Castellated Nut M18
    Hex. Castellated Nut M18
  • 56
    250400036 Cotter Pin
    Cotter Pin
  • 57
    293550010 Synthetic Grease, 400 G
    Synthetic Grease, 400 G
  • 58
    705500979 LH CV Joint Ass'y. Includes 58 to 61
    LH CV Joint Ass'y. Includes 58 to 61
  • 59
    705500980 CV Joint
    CV Joint
  • 60
    705500870 Boot Kit
    Boot Kit
  • 60a
    293650204 Oetiker Clamp (81mm)
    Oetiker Clamp (81mm)
  • 60b
    293650203 Oetiker Clamp (27,5mm)
    Oetiker Clamp (27,5mm)
  • 61
    705500845 Circlip
    Circlip
  • 62
    705500983 RH CV Joint Ass'y. Includes 62 to 65
    RH CV Joint Ass'y. Includes 62 to 65
  • 63
    705500980 CV Joint
    CV Joint
  • 64
    705500870 Boot Kit
    Boot Kit
  • 64a
    293650204 Oetiker Clamp (81mm)
    Oetiker Clamp (81mm)
  • 64b
    293650203 Oetiker Clamp (27,5mm)
    Oetiker Clamp (27,5mm)
  • 65
    705500845 Circlip
    Circlip
  • 66
    230603036 Hex. Flanged Screw M10 X 130
    Hex. Flanged Screw M10 X 130
  • 67
    230603536 Hex. Flanged Screw M10 X 135
    Hex. Flanged Screw M10 X 135
  • 68
    233201436 Flanged Elastic Nut
    Flanged Elastic Nut
  • 69
    293350040 Cone Bearing
    Cone Bearing
  • 70
    705501124 Wear Ring
    Wear Ring
  • 71
    705501121 Wear Sleeve
    Wear Sleeve
  • 72
    293370019 Circlip
    Circlip
  • 73
    250200049 Spring Washer
    Spring Washer
  • 74
    705400681 Fin Wheel Moulding. XT-P
    Fin Wheel Moulding. XT-P
