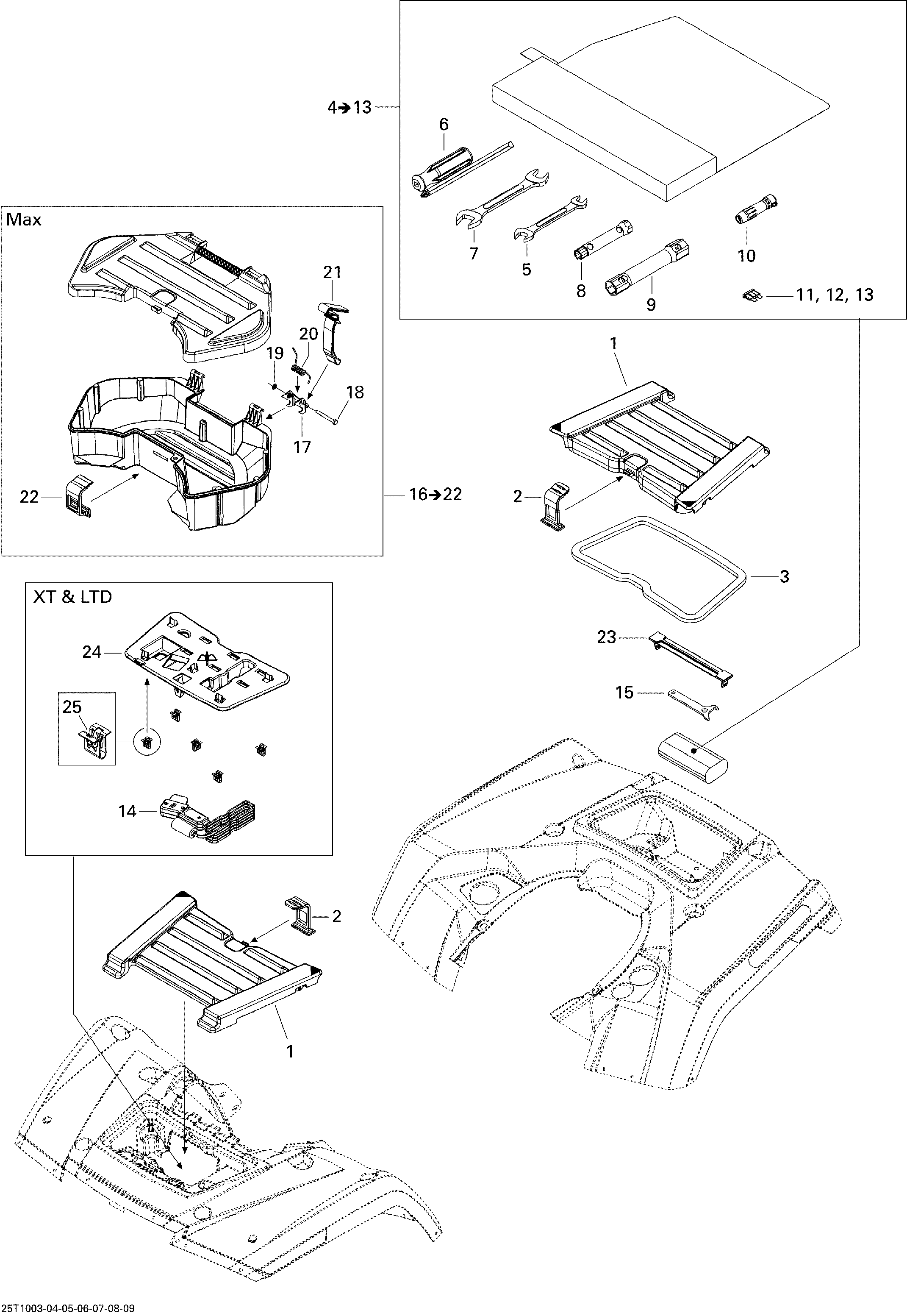

09- Front and Rear Trays для BRP Outlander 650 EFI - 2010
-
№АртикулНазвание
-
1705001853 Storage CoverStorage Cover
-
2708200120 Cover LatchCover Latch
-
3293250192 Neoprene SealNeoprene Seal
-
4704700096 Tool Kit. Includes 4 to 13Tool Kit. Includes 4 to 13
-
5529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
6529000004 Screw DriverScrew Driver
-
7529000003 Fork Wrench 15/17 mmFork Wrench 15/17 mm
-
8529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
10704700003 Pressure GaugePressure Gauge
-
11410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
12409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
13278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
14710001002 Remote Control. XTRemote Control. XT
-
15529000035 Adjustement WrenchAdjustement Wrench
-
23708200121 Cover Latch KitCover Latch Kit
-
24708200075 Support. XTSupport. XT
-
25517302785 Clip. XTClip. XT
