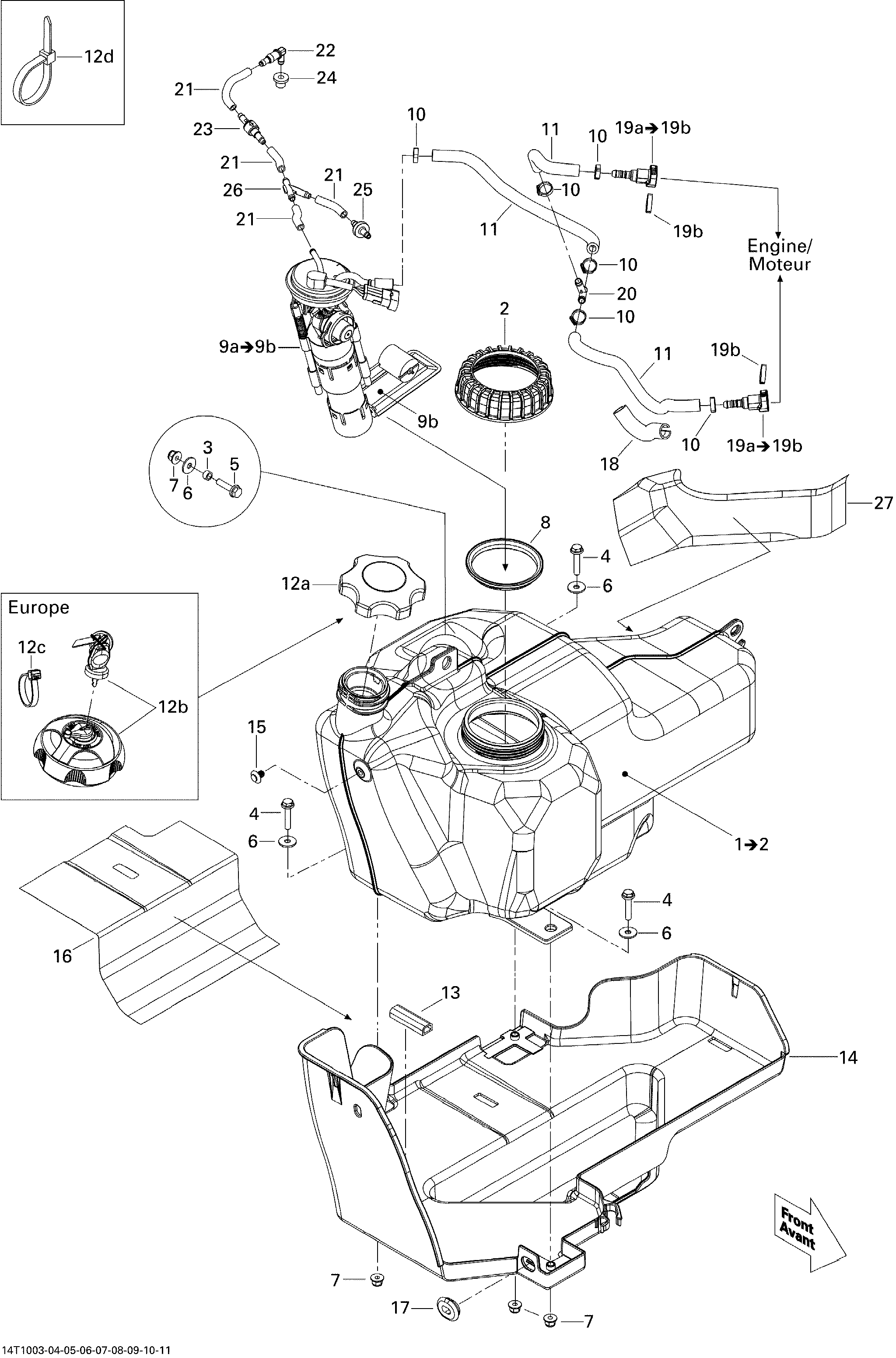

02- Fuel System для BRP Outlander 650 EFI - 2010
-
№АртикулНазвание
-
1709000220 Fuel Tank. Includes 1 to 2Fuel Tank. Includes 1 to 2
-
2513033040 Nut, Fuel Pump ModuleNut, Fuel Pump Module
-
3293900029 BushingBushing
-
4207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6224060251 Flat WasherFlat Washer
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8709000208 SealSeal
-
9a709000245 Fuel Pump. Includes 9a to 9bFuel Pump. Includes 9a to 9b
-
10293650046 Oetiker ClampOetiker Clamp
-
11709000163 Fuel LineFuel Line
-
12a513033025 Fuel Tank CapFuel Tank Cap
-
12b709000267 Fuel Tank Cap. EuropeFuel Tank Cap. Europe
-
12c293750001 Tie-Rap 94 mm. EuropeTie-Rap 94 mm. Europe
-
12d293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
13293200093 Neoprene SealNeoprene Seal
-
14709000207 Tank ProtectorTank Protector
-
15293150168 Plastic Tuklock RivetPlastic Tuklock Rivet
-
16709000149 Reflective SheetReflective Sheet
-
17705005156 Oblong WasherOblong Washer
-
18409901800 Tubing 13 mmTubing 13 mm
-
19a709000125 Female Quick Fitting Ass'y. Includes 19a to 19bFemale Quick Fitting Ass'y. Includes 19a to 19b
-
19b513033135 Locking ClipLocking Clip
-
20293710136 Y Fitting, 5/16''Y Fitting, 5/16''
-
21415080200 Polyurethane HosePolyurethane Hose
-
22414580600 Elbow Male ConnectorElbow Male Connector
-
23513033469 Check ValveCheck Valve
-
24293720029 GrommetGrommet
-
25275500398 Check ValveCheck Valve
-
26293710059 Y-FittingY-Fitting
-
27709000204 Reflecting SheetReflecting Sheet
