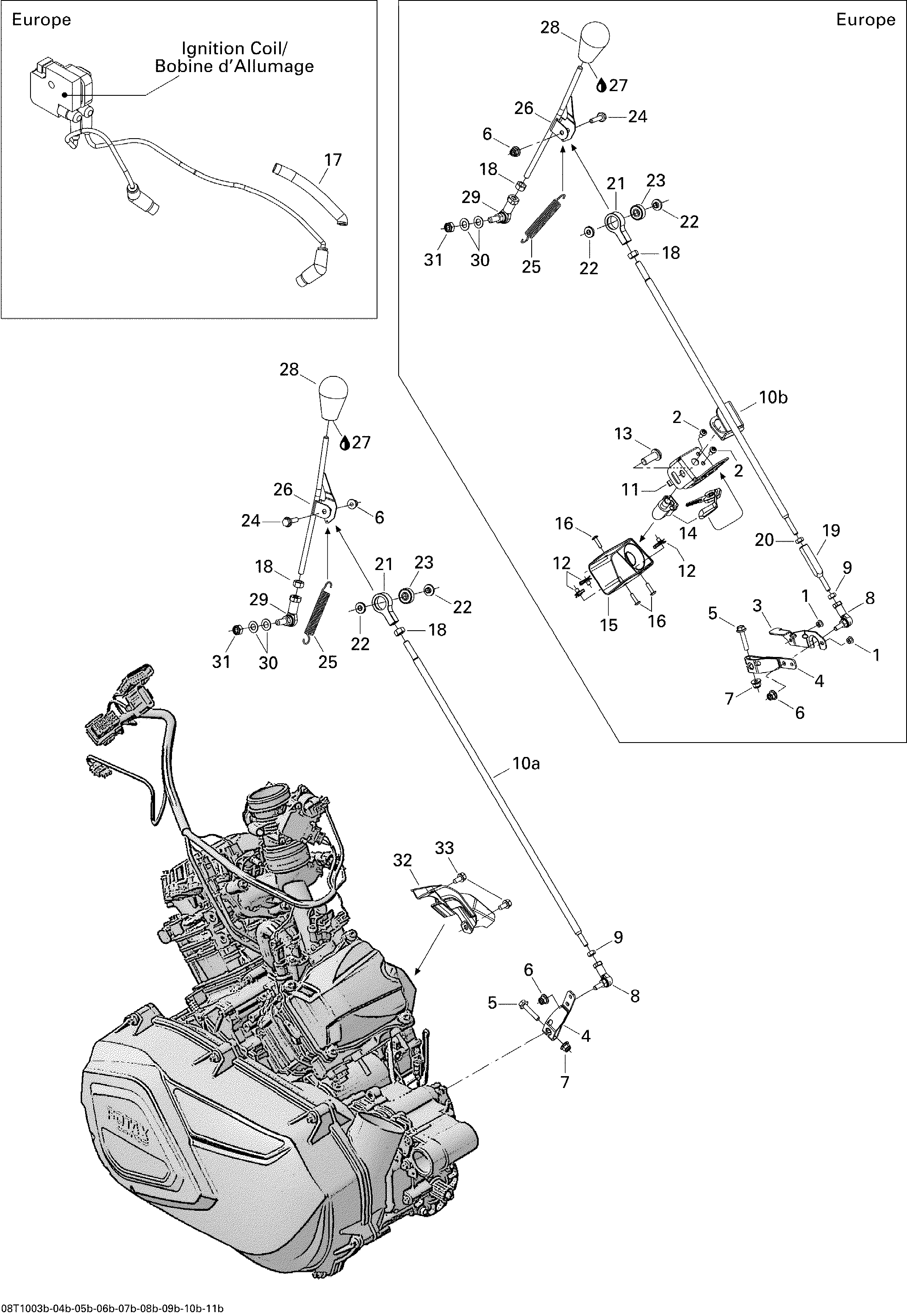

01- Engine 2 для BRP Outlander 650 EFI - 2010
-
№АртикулНазвание
-
1390402200 Pop Rivet 3/16''. EuropePop Rivet 3/16''. Europe
-
2205951046 Socket Head Screw M5 X 10. EuropeSocket Head Screw M5 X 10. Europe
-
3707000692 Antitheft Plate. EuropeAntitheft Plate. Europe
-
4707000691 LeverLever
-
5207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8707000545 LH Ball JointLH Ball Joint
-
9232066414 LH Hex. Nut M6LH Hex. Nut M6
-
10a707000579 Threaded Rod. Except EuropeThreaded Rod. Except Europe
-
10b707000661 Threaded Rod. EuropeThreaded Rod. Europe
-
11707000664 Fixing Plate. EuropeFixing Plate. Europe
-
12250100048 Extruded Panel Nut M4 X 0.7. EuropeExtruded Panel Nut M4 X 0.7. Europe
-
13205402596 Socket Head Screw M10 X 25. EuropeSocket Head Screw M10 X 25. Europe
-
14707000666 Lock. EuropeLock. Europe
-
15707000667 Cover Lock. EuropeCover Lock. Europe
-
16250000242 Truss Torx Screw M4 X 16. EuropeTruss Torx Screw M4 X 16. Europe
-
17409901800 Tubing 13 mm. EuropeTubing 13 mm. Europe
-
18232081414 Hex. Nut M8Hex. Nut M8
-
19707000668 Adjustment Block. EuropeAdjustment Block. Europe
-
20232061600 Hex. Nut M6. EuropeHex. Nut M6. Europe
-
21707000575 PivotPivot
-
22707000576 BushingBushing
-
23293350039 Ball BearingBall Bearing
-
24207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
25707000577 SpringSpring
-
26707000783 Lever ArmLever Arm
-
27293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
28705500022 Lever ButtonLever Button
-
29707000546 RH Ball JointRH Ball Joint
-
30506151252 WasherWasher
-
31232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
32707000410 Cover OPSCover OPS
-
33210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
