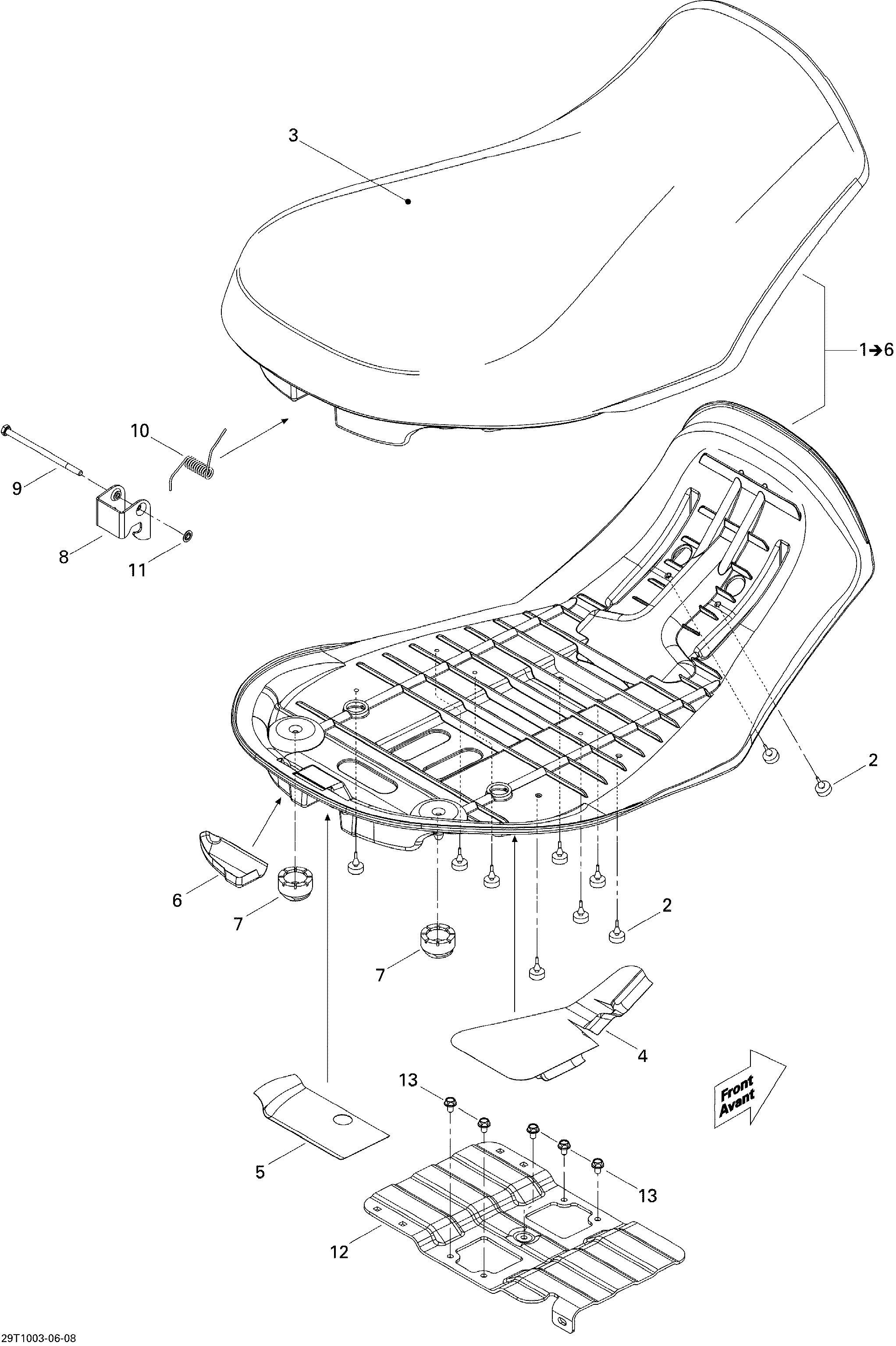

09- Seat для BRP Outlander 500 EFI - 2010
-
№АртикулНазвание
-
1715500323 Seat Ass'y. Includes 1 to 6Seat Ass'y. Includes 1 to 6
-
2708000771 Rubber StopperRubber Stopper
-
3708000538 Seat CoverSeat Cover
-
4708000800 Reflecting SheetReflecting Sheet
-
5708000470 Reflecting SheetReflecting Sheet
-
6708000487 Reflecting SheetReflecting Sheet
-
7708000760 Bumper RubberBumper Rubber
-
8708000144 Latch, BlackLatch, Black
-
9230061034 Hex Screw M6 X 110Hex Screw M6 X 110
-
10708000369 SpringSpring
-
11732610072 Push NutPush Nut
-
12708000629 Seat ReinforcementSeat Reinforcement
-
13210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
