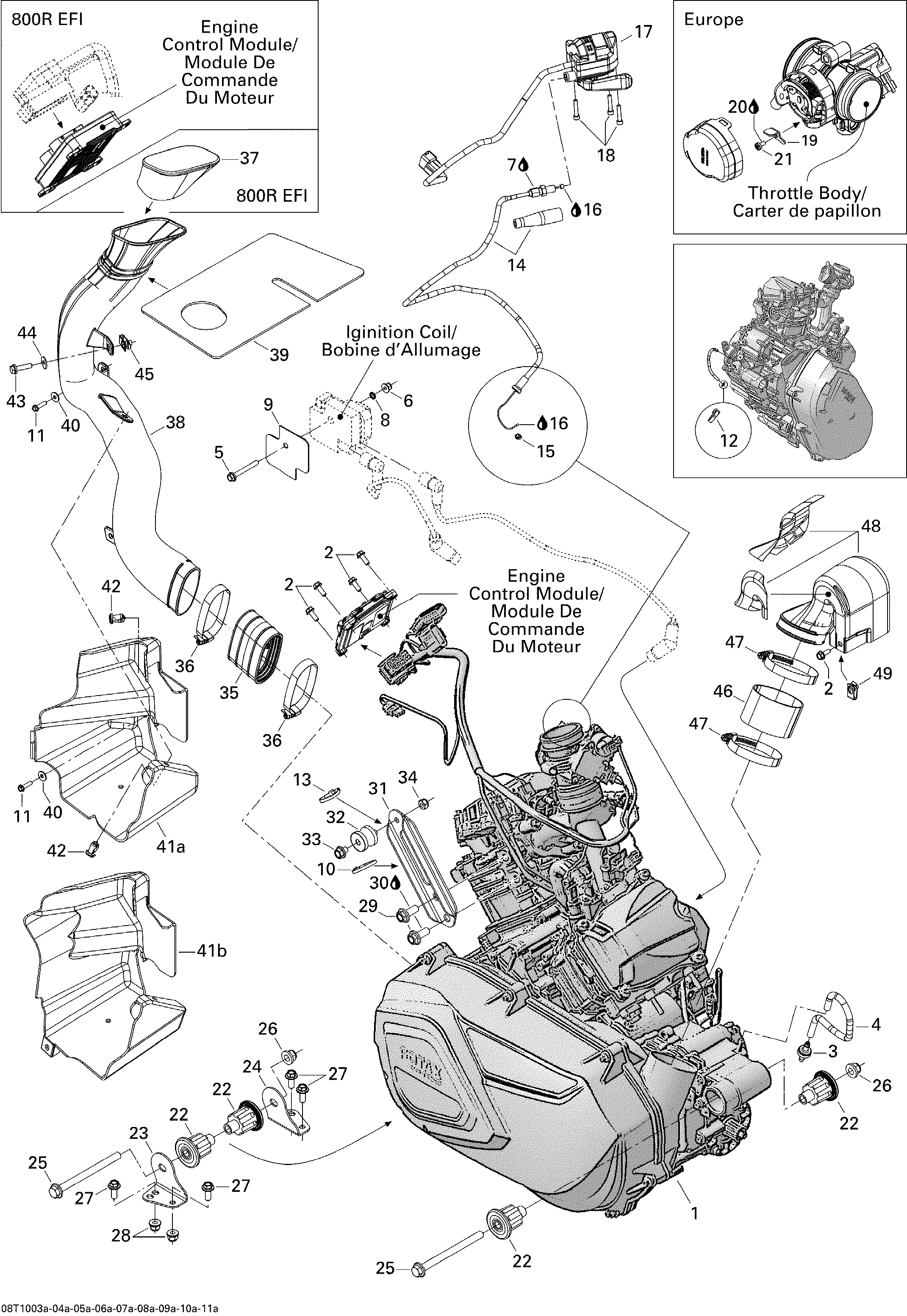

01- Engine 1 для BRP Outlander 500 EFI - 2010
-
№АртикулНазвание
-
1420049035 Long Block, 500 EFILong Block, 500 EFI
-
2210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3275500398 Check ValveCheck Valve
-
4276000048 Hose 6 mmHose 6 mm
-
5207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
8234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
9710000073 Insulator PadInsulator Pad
-
10414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
11210252040 Hex. Forming ScrewHex. Forming Screw
-
12293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
13414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
14707000393 Throttle CableThrottle Cable
-
15707000434 Cable GuideCable Guide
-
16293600041 Cable Lubricant, 400 gCable Lubricant, 400 g
-
17707000595 Throttle HandleThrottle Handle
-
18205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
19707000573 Speed Limiter. EuropeSpeed Limiter. Europe
-
20293800060 Loctite 243, 10 ml. EuropeLoctite 243, 10 ml. Europe
-
21250000332 Screw M4 X 8. EuropeScrew M4 X 8. Europe
-
22707000426 Anti-Vibration MountAnti-Vibration Mount
-
23707000802 Engine BracketEngine Bracket
-
24707000803 Engine BracketEngine Bracket
-
25230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
26233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
27207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
28233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
29207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31707000371 Upper Engine Bracket, BlackUpper Engine Bracket, Black
-
32274000839 Rubber IsolatorRubber Isolator
-
33207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
34232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
35707000719 Flexible AdaptorFlexible Adaptor
-
36293650206 ClampClamp
-
38707000777 Air InletAir Inlet
-
39707000778 Water DeflectorWater Deflector
-
40234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
41a707000779 Water DeflectorWater Deflector
-
42293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
43207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
44234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
45250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
46707000789 AdaptorAdaptor
-
47514052859 Norma Gear ClampNorma Gear Clamp
-
48707000459 Air Outlet Ass'yAir Outlet Ass'y
-
49250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
