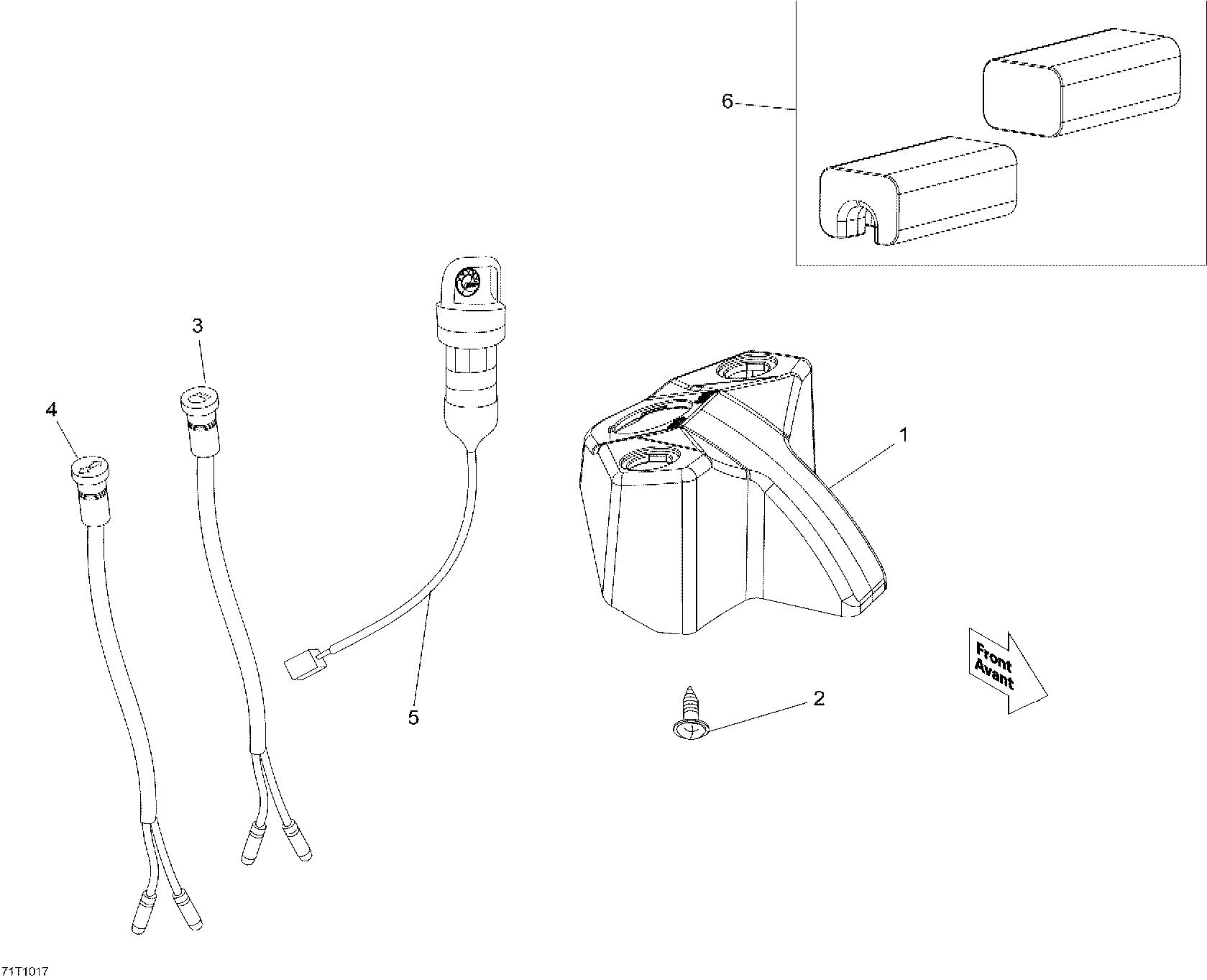

10- Indicator Lights And Cover для BRP DS 90 X - 2010
-
№АртикулНазвание
-
1V80109DGF02H DashboardDashboard
-
2V9309305016 Tapping ScrewTapping Screw
-
3V33512DGF020GR Indicator Lights, NeutralIndicator Lights, Neutral
-
4V33513DGF020RD Indicator Lights, ReverseIndicator Lights, Reverse
-
5V35100DGF010LL Main SwitchMain Switch
-
6V77106DGF02H Steering Cover Ass'ySteering Cover Ass'y
