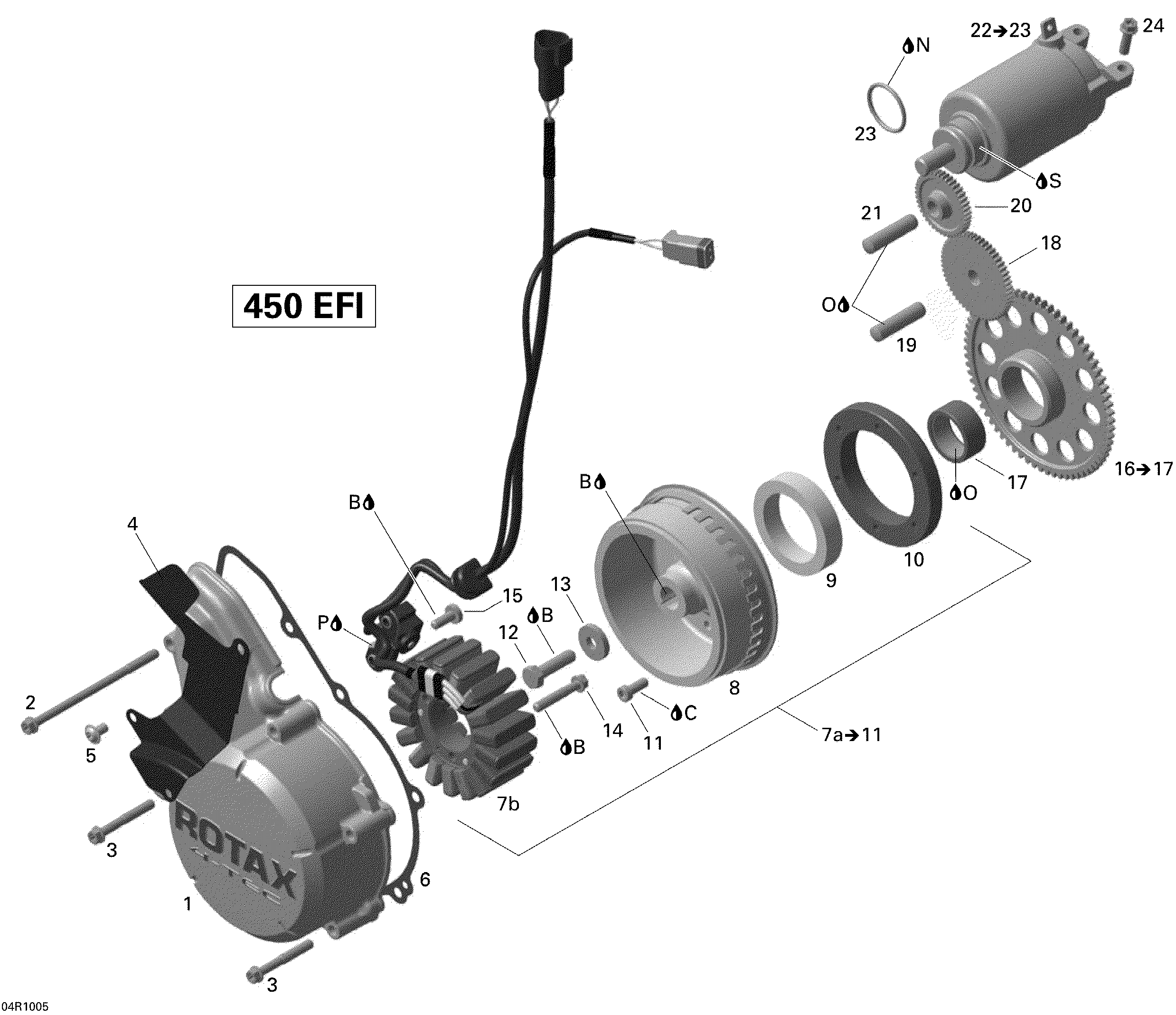

03- Magneto And Electric Starter для BRP DS 450 Xxc, Xmx EFI - 2010

№

Артикул

Название
1

420611700 Ignition Cover

Ignition Cover

12 390 ₽
2

420440612 Flanged Torx Screw M6 X 105

Flanged Torx Screw M6 X 105

680 ₽
3

420641198 Flanged Torx Screw M6 X 45

Flanged Torx Screw M6 X 45

1 450 ₽
4

420651020 Protection Shield

Protection Shield

1 700 ₽
5

420240602 Flanged Screw M6 X 10

Flanged Screw M6 X 10

0 ₽
6

420430980 Gasket

Gasket

1 820 ₽
7A

420685171 Magneto Ass'y. Includes 7a to 11

Magneto Ass'y. Includes 7a to 11

92 810 ₽
7b

420296323 Stator Plate

Stator Plate

43 130 ₽
9

420259070 Sprag Clutch

Sprag Clutch

23 580 ₽
10

420659860 Sprag Clutch Housing

Sprag Clutch Housing

15 290 ₽
11

420640980 Socket Head Screw M6 X 16

Socket Head Screw M6 X 16

660 ₽
12

420940485 Screw M8 x 30

Screw M8 x 30

470 ₽
13

420626460 Washer 23 mm

Washer 23 mm

760 ₽
14

420641258 Flanged Torx Screw M6 X 35

Flanged Torx Screw M6 X 35

1 800 ₽
15

420640321 Hex. Taptite Screw M6 X 16

Hex. Taptite Screw M6 X 16

0 ₽
16

420635155 Starting Gear Ass'y, 68 Teeth. Includes 16 to 17

Starting Gear Ass'y, 68 Teeth. Includes 16 to 17

26 910 ₽
18

420685300 Friction Clutch

Friction Clutch

11 160 ₽
19

420229301 Location Pin

Location Pin

1 130 ₽
20

420434790 Intermediate Gear, 41 Teeth

Intermediate Gear, 41 Teeth

7 020 ₽
21

420929935 Intermediate Gear Shaft

Intermediate Gear Shaft

680 ₽
22

420685100 Electric Starter Ass'y. Includes 22 to 23

Electric Starter Ass'y. Includes 22 to 23

45 890 ₽
23

420250140 O-Ring

O-Ring

3 000 ₽
24

420440202 Flanged Torx Screw M6 X 20

Flanged Torx Screw M6 X 20

0 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
C

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml

3 420 ₽
N

293550030 Grease, Super Lube

Grease, Super Lube

3 520 ₽
P

293800081 Loctite 5910, 300 ml

Loctite 5910, 300 ml

7 550 ₽
S

293800070 Loctite 767, Antiseize Lubricant, 8 oz

Loctite 767, Antiseize Lubricant, 8 oz

3 130 ₽
