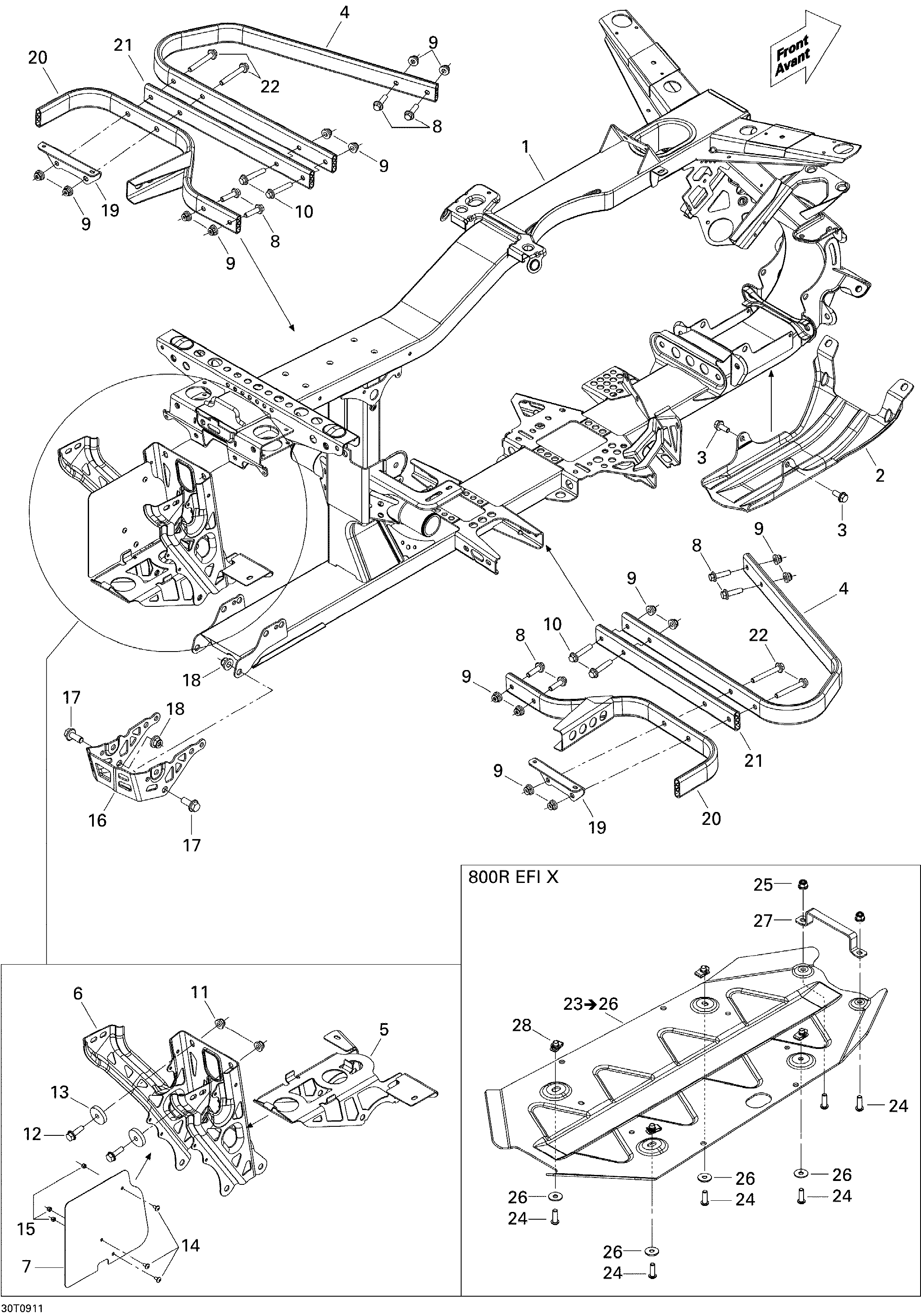

09- Frame для BRP Renegade 800R EFI X - 2009

  • №
    Артикул
    Название
  • 1
    705201751 Frame, Black
    Frame, Black
  • 2
    705201432 Skid Plate
    Skid Plate
  • 3
    207582084 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 4
    705200883 Reinforcement Footrest
    Reinforcement Footrest
  • 5
    705201105 Battery Support Base
    Battery Support Base
  • 6
    705201603 Rear Battery Support, Black
    Rear Battery Support, Black
  • 7
    705201510 Head Shield
    Head Shield
  • 8
    207683044 Hex. Flanged Screw M8 X 30
    Hex. Flanged Screw M8 X 30
  • 9
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 10
    207684544 Hex. Flanged Screw M8 X 45
    Hex. Flanged Screw M8 X 45
  • 11
    233281416 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
  • 12
    207582586 Hex. Flanged Screw M8 X 25, Scotch Grip
    Hex. Flanged Screw M8 X 25, Scotch Grip
  • 13
    705201544 Spacer
    Spacer
  • 14
    250000127 Torx Screw M4 X 8
    Torx Screw M4 X 8
  • 15
    232541484 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 16
    705201504 Support, Black
    Support, Black
  • 17
    207602544 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 18
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 19
    705201535 Support
    Support
  • 20
    705201861 Rear Footrest
    Rear Footrest
  • 21
    705201418 Tube
    Tube
  • 22
    207686044 Hex. Flanged Screw M8 x 60
    Hex. Flanged Screw M8 x 60
  • 23
    715000524 Skid Kit. Includes 23 to 26
    Skid Kit. Includes 23 to 26
  • 24
    250000283 Socket Head Screw M8 X 25, S-Grip
    Socket Head Screw M8 X 25, S-Grip
  • 25
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 26
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 27
    705002633 Skid Bracket
    Skid Bracket
  • 28
    250100111 Panel Nut M8
    Panel Nut M8
