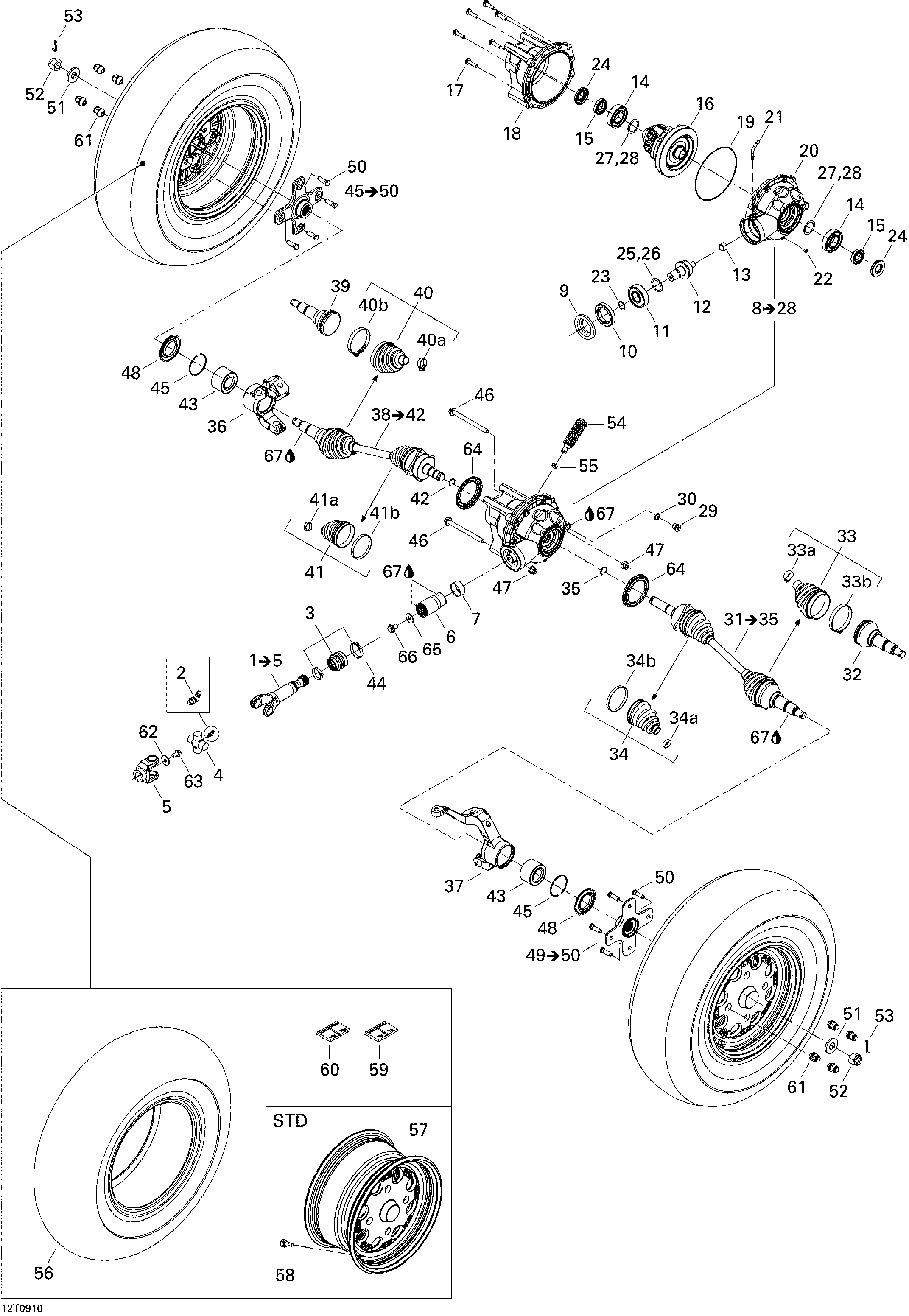

07- Drive System, Front для BRP Renegade 500 - 2009
-
№АртикулНазвание
-
1705400551 Front Drive Axle Ass'y. Includes 1 to 5Front Drive Axle Ass'y. Includes 1 to 5
-
2715900067 Grease FittingGrease Fitting
-
3703500255 Rubber Boot KitRubber Boot Kit
-
4703000024 Unit Pack KitUnit Pack Kit
-
5705400391 Yoke, Fixed JointYoke, Fixed Joint
-
6705400149 Coupling SleeveCoupling Sleeve
-
7705400036 Wear RingWear Ring
-
8705400723 Differential Ass'y. Includes 8 to 28Differential Ass'y. Includes 8 to 28
-
9705400027 Oil SealOil Seal
-
10705400661 NutNut
-
11705500260 Ball BearingBall Bearing
-
12705501051 10 Teeth Pinion10 Teeth Pinion
-
13705500261 Needle BearingNeedle Bearing
-
14705500259 Ball BearingBall Bearing
-
15293350044 Ball BearingBall Bearing
-
16705400645 DifferentialDifferential
-
17705500892 ScrewScrew
-
18705400297 Front CoverFront Cover
-
19705500265 SealSeal
-
20705400646 Front CoverFront Cover
-
21705500893 Vent ValveVent Valve
-
22705500894 Drain PlugDrain Plug
-
23705500267 O-RingO-Ring
-
24705500255 Oil SealOil Seal
-
25703500049 Pinion Shim KitPinion Shim Kit
-
26705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
27703500288 Differential Shim KitDifferential Shim Kit
-
28703500050 Differential Shim KitDifferential Shim Kit
-
29250400041 Screw PlugScrew Plug
-
30705500506 Copper WasherCopper Washer
-
31705400660 RH Homocinetic Joint. Includes 31 to 35RH Homocinetic Joint. Includes 31 to 35
-
32705500560 CV JointCV Joint
-
33705400511 Wheel Boot KitWheel Boot Kit
-
33a293650192 Oetiker ClampOetiker Clamp
-
33b293650194 Oetiker ClampOetiker Clamp
-
34705400512 Differential Boot KitDifferential Boot Kit
-
34a293650192 Oetiker ClampOetiker Clamp
-
34b293650193 Oetiker ClampOetiker Clamp
-
35705400042 CirclipCirclip
-
36705400463 LH KnuckleLH Knuckle
-
37705400465 RH KnuckleRH Knuckle
-
38705400659 LH Homocinetic Joint. Includes 38 to 42LH Homocinetic Joint. Includes 38 to 42
-
39705500560 CV JointCV Joint
-
40705400511 Wheel Boot KitWheel Boot Kit
-
40a293650192 Oetiker ClampOetiker Clamp
-
40b293650194 Oetiker ClampOetiker Clamp
-
41705400512 Differential Boot KitDifferential Boot Kit
-
41a293650192 Oetiker ClampOetiker Clamp
-
41b293650193 Oetiker ClampOetiker Clamp
-
42705400042 CirclipCirclip
-
43293350040 Cone BearingCone Bearing
-
44293650138 Oetiker ClampOetiker Clamp
-
45293370019 CirclipCirclip
-
46230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
47233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
48705500904 Wear SleeveWear Sleeve
-
49705400591 Wheel Hub Ass'y. Includes 49 to 50Wheel Hub Ass'y. Includes 49 to 50
-
50250300034 Wheel StudWheel Stud
-
51250200049 Spring WasherSpring Washer
-
52250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
53250400036 Cotter PinCotter Pin
-
54705400552 Rubber BellowRubber Bellow
-
55293650042 Oetiker ClampOetiker Clamp
-
56705400475 Front Tire. EUROPEFront Tire. EUROPE
-
56705400600 Front TireFront Tire
-
57705400506 Front Rim. STDFront Rim. STD
-
58705400193 Rim ValveRim Valve
-
59705501430 Adhesive Weight, 1/4 OzAdhesive Weight, 1/4 Oz
-
60705500824 Adhesive Weight, 1/2 OzAdhesive Weight, 1/2 Oz
-
61250100082 Chrome Wheel Nut M10 X 1.25. P-STDChrome Wheel Nut M10 X 1.25. P-STD
-
62211200041 WasherWasher
-
63207581646 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
64705400643 Wear RingWear Ring
-
65250200102 Flat Washer M12Flat Washer M12
-
66250000378 Hex Flanged Screw S.Grip M12 X 16Hex Flanged Screw S.Grip M12 X 16
-
67293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
