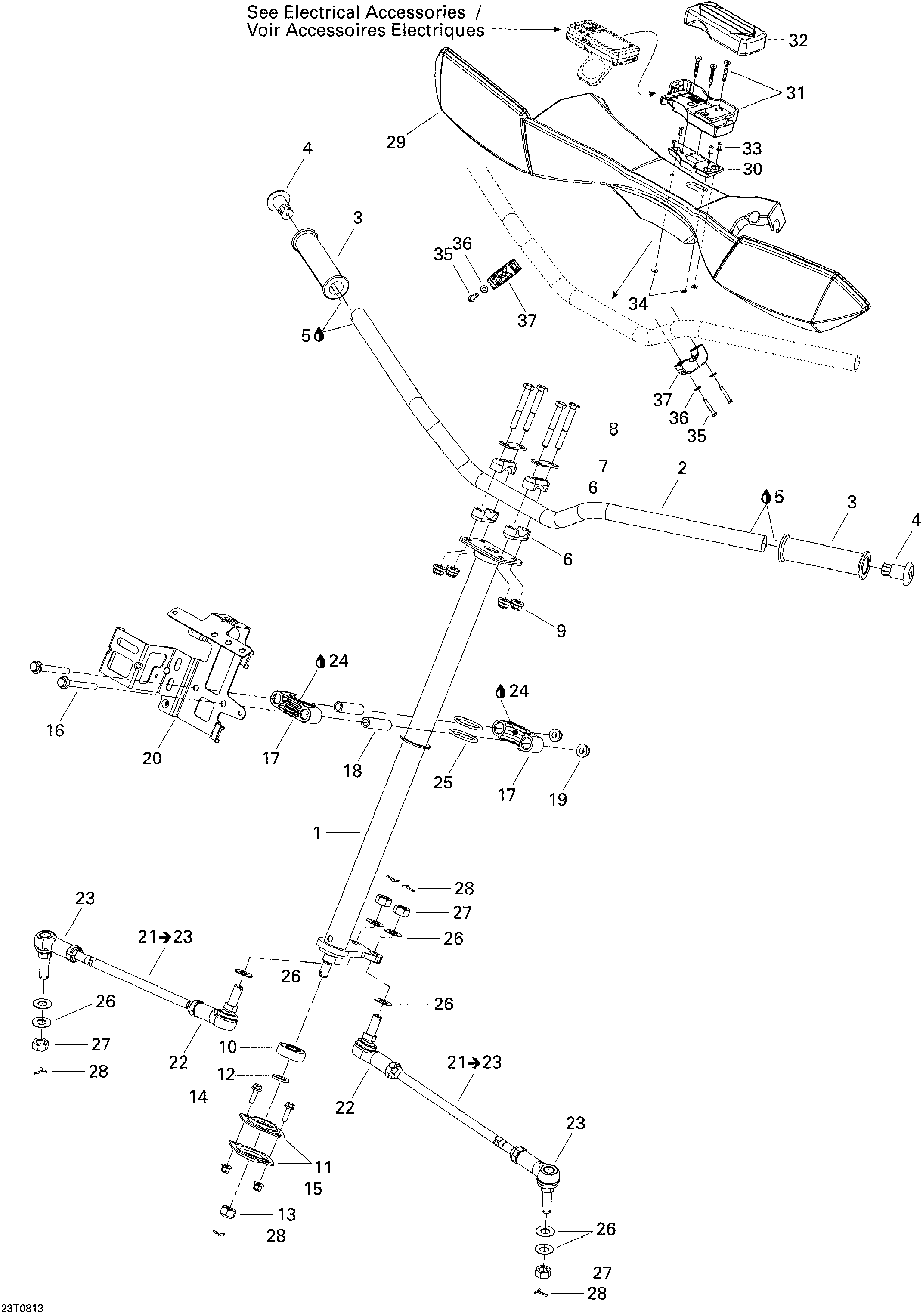

07- Steering для BRP Outlander Max 800R EFI Ltd - 2009
-
№АртикулНазвание
-
1709400645 Main TubeMain Tube
-
2709400292 Handle Bar, BlackHandle Bar, Black
-
3709400443 Handle Grip, GreyHandle Grip, Grey
-
4709400449 End PieceEnd Piece
-
5293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
6506151622 Steering SupportSteering Support
-
7709400509 StiffnerStiffner
-
8207086046 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
9233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
10709400439 Ball BearingBall Bearing
-
11709400152 Thrust WasherThrust Washer
-
12234021410 Flat Washer 12 mmFlat Washer 12 mm
-
13250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
14207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
15233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
16207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
17709400471 Half BushingHalf Bushing
-
18709400072 BushingBushing
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
20705201532 SupportSupport
-
21709400485 Tie Rod Ass'y. Includes 21 to 23Tie Rod Ass'y. Includes 21 to 23
-
22709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
23709400487 Ball Joint, RH ThreadsBall Joint, RH Threads
-
24293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
25293300068 O-RingO-Ring
-
26706200281 Hardened WasherHardened Washer
-
27250100099 Nut M12Nut M12
-
28211400013 Cotter PinCotter Pin
-
29709400398 Handle Bar ProtectorHandle Bar Protector
-
30709400446 GPS Support BaseGPS Support Base
-
31709400448 GPS SupportGPS Support
-
32709400450 GPS Support ProtectorGPS Support Protector
-
33293150152 RivetRivet
-
34234032600 Flat Washer 3 mmFlat Washer 3 mm
-
35241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
36211200035 Flat WasherFlat Washer
-
37517303264 U-ClampU-Clamp
