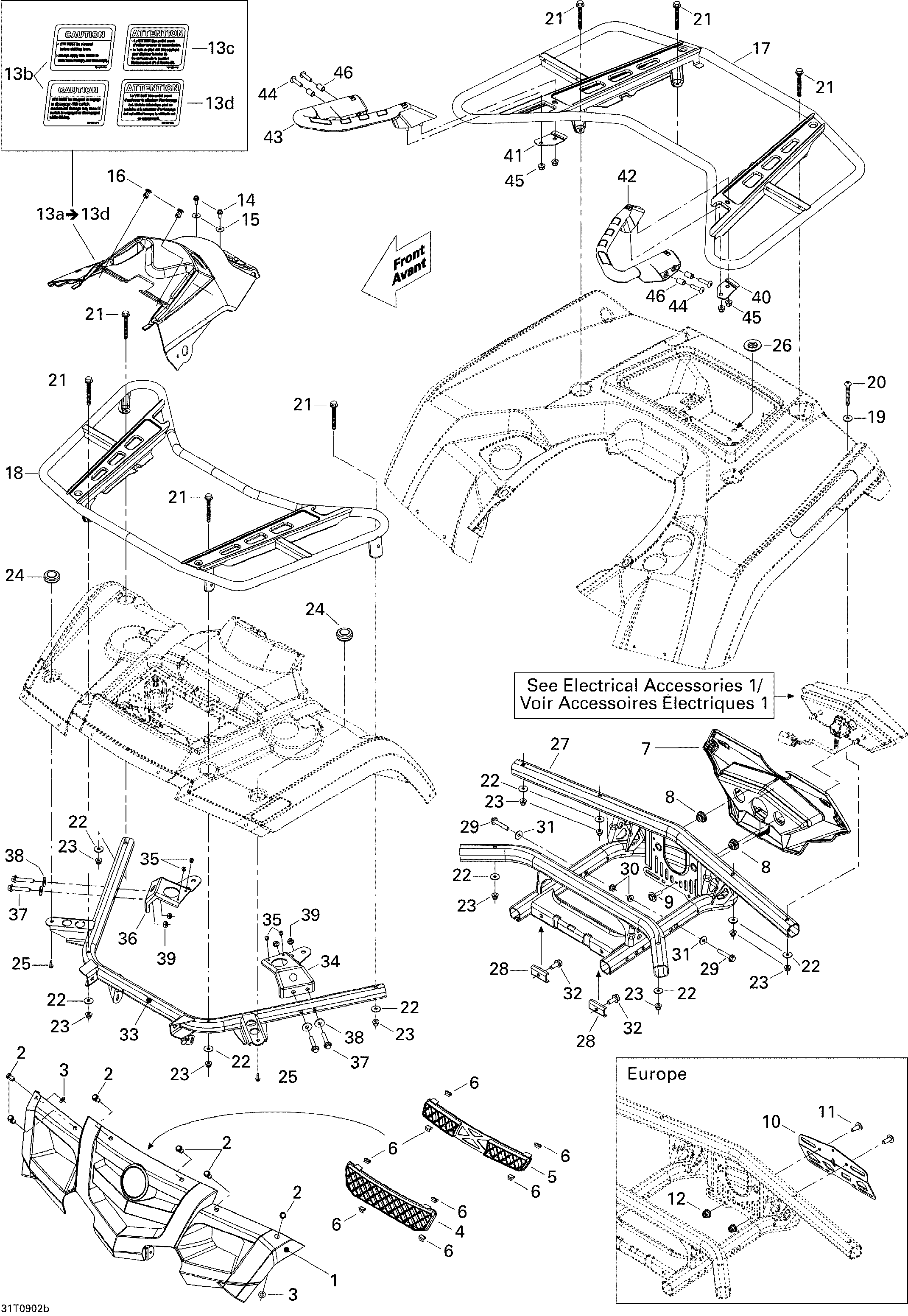

09- Body And Accessories 2 для BRP Outlander Max 400 EFI - 2009
-
№АртикулНазвание
-
1705001313 Front Fascia, Red. Viper RedFront Fascia, Red. Viper Red
-
1705001991 Front Fascia, Yellow. YellowFront Fascia, Yellow. Yellow
-
1705003198 Front Fascia, Black. BlackFront Fascia, Black. Black
-
2293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3506151252 WasherWasher
-
4705001679 Lower GrillLower Grill
-
5705001901 Upper GrillUpper Grill
-
6517302674 ClipClip
-
7705002464 Rear FaciaRear Facia
-
8705001119 GrommetGrommet
-
9250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
10705002499 Support. EuropeSupport. Europe
-
11250000261 Torx Screw M6 X 16. EuropeTorx Screw M6 X 16. Europe
-
12233261414 Hex. Flanged Elastic Nut M6. EuropeHex. Flanged Elastic Nut M6. Europe
-
13a715000789 Dash-board Kit, Black. Includes 13a to 13dDash-board Kit, Black. Includes 13a to 13d
-
13b704900434 Caution Decal, Lever And 4wd SwitchCaution Decal, Lever And 4wd Switch
-
13c704900475 Caution Label, Shifting LeverCaution Label, Shifting Lever
-
13d704900476 Caution Label, 4wd SwitchCaution Label, 4wd Switch
-
14210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
15391302000 Flat WasherFlat Washer
-
16293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
17705001780 Rear Luggage RackRear Luggage Rack
-
18705001769 Front Luggage RackFront Luggage Rack
-
19250200040 Flat WasherFlat Washer
-
20250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
21207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
22250200072 Flat WasherFlat Washer
-
23233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
24705002042 Rubber CapRubber Cap
-
25365901100 Hex. Screw 12 X 3/4Hex. Screw 12 X 3/4
-
26414859400 CapCap
-
27705002851 SupportSupport
-
28705002668 U ReinforcementU Reinforcement
-
29207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
30233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
31234082410 Flat Washer 8 mmFlat Washer 8 mm
-
32207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
33705003062 Front SupportFront Support
-
34705002995 LH Anchor PlateLH Anchor Plate
-
35390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
36705002997 RH Anchor PlateRH Anchor Plate
-
37207684544 Hex. Flanged Screw M8 X 45Hex. Flanged Screw M8 X 45
-
38234082410 Flat Washer 8 mmFlat Washer 8 mm
-
39232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
40705002762 LH Fixation PlateLH Fixation Plate
-
41705002760 RH Fixation PlateRH Fixation Plate
-
42705002700 LH HandleLH Handle
-
43705002699 RH HandleRH Handle
-
44250000316 Torx Truss Screw M8 X 35Torx Truss Screw M8 X 35
-
45233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
46705002153 BushingBushing
