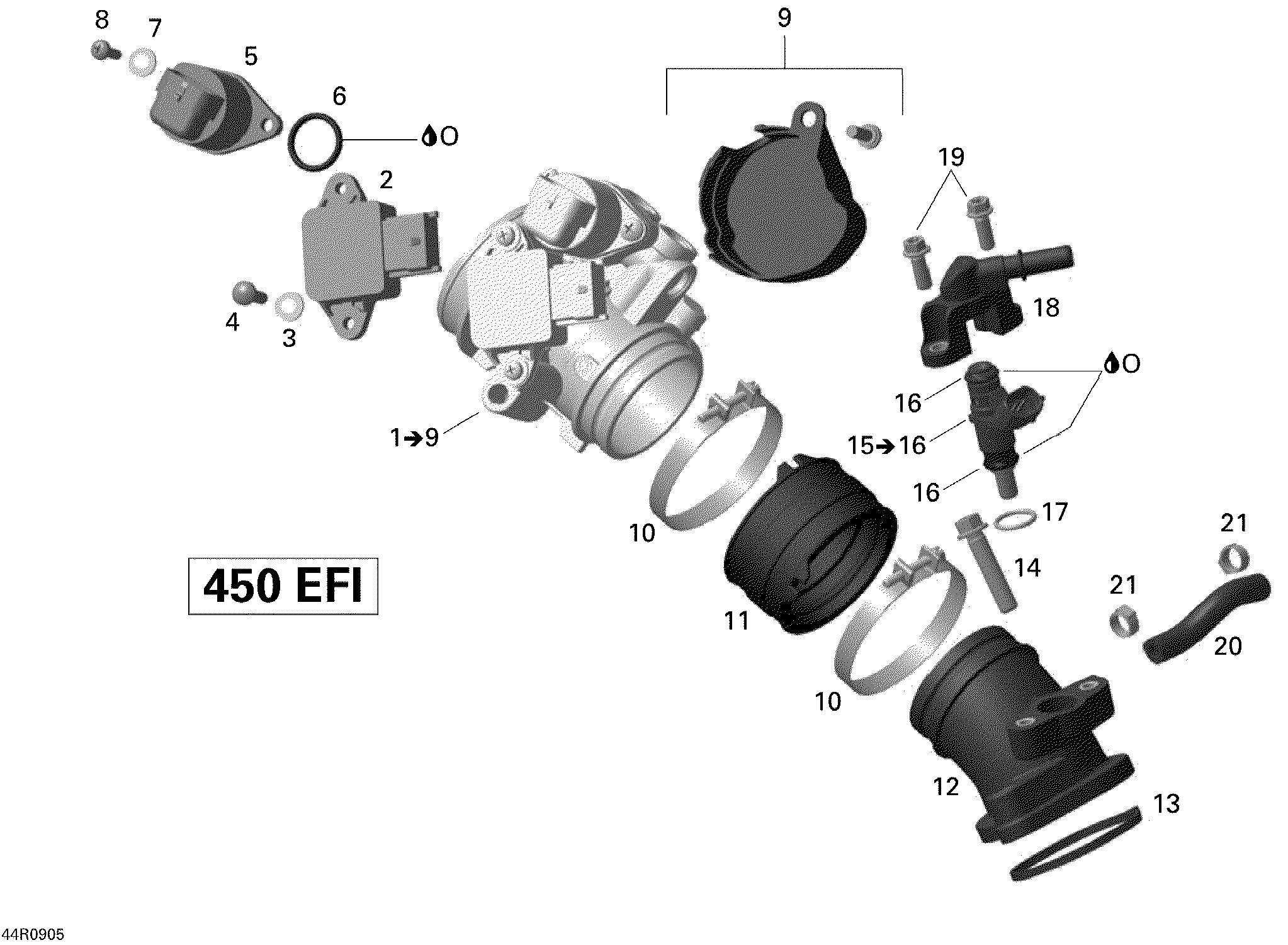

02- Intake Manifold And Throttle Body для BRP DS 450 EFI - 2009
-
№АртикулНазвание
-
1420296874 Throttle Body Ass'y. Includes 1 to 9Throttle Body Ass'y. Includes 1 to 9
-
2270000251 Position SensorPosition Sensor
-
3234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
4208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
5420963057 Idle Bypass ValveIdle Bypass Valve
-
6420631780 O-RingO-Ring
-
7420845710 Snap RingSnap Ring
-
8420440911 Binding Head Screw M5 X 16Binding Head Screw M5 X 16
-
9420281540 Cover KitCover Kit
-
10420251480 Hose ClampHose Clamp
-
11420267480 Intake AdaptorIntake Adaptor
-
12420267510 Elbow Intake AdaptorElbow Intake Adaptor
-
13420431230 GasketGasket
-
14420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
15420874402 Injection Valve. Includes 15 to 16Injection Valve. Includes 15 to 16
-
16420631220 O-RingO-Ring
-
17420631295 O-RingO-Ring
-
18420874900 Fuel RailFuel Rail
-
19420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
20420260420 Hose 88 mm, MAPS SensorHose 88 mm, MAPS Sensor
-
21420851468 Gear ClampGear Clamp
