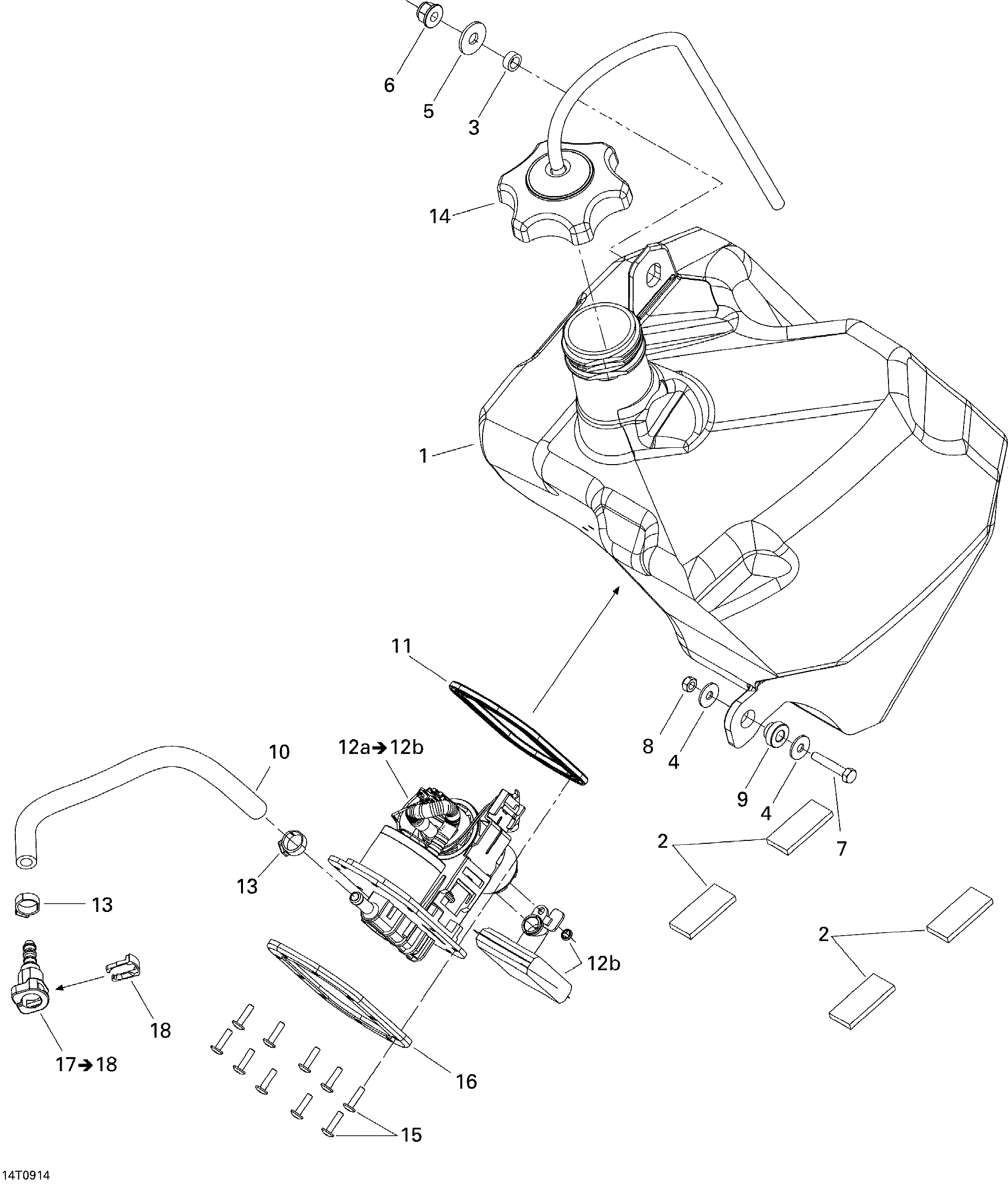

02- Fuel System для BRP DS 450 CE STD & X (3F9D,3G9D) - 2009
-
№АртикулНазвание
-
1709000180 Fuel TankFuel Tank
-
2274001010 Rubber PadRubber Pad
-
3293900067 BushingBushing
-
4250200082 Flat WasherFlat Washer
-
5234082430 Flat WasherFlat Washer
-
6233281434 Hex. Flanged Elastic NutHex. Flanged Elastic Nut
-
7207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
8232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
9293900088 BushingBushing
-
10709000163 Fuel LineFuel Line
-
11709000109 GasketGasket
-
12a709000147 Fuel Pump. Includes 12a to 12bFuel Pump. Includes 12a to 12b
-
12b715900063 Filter KitFilter Kit
-
13293650047 Oetiker ClampOetiker Clamp
-
14709000117 Fuel CapFuel Cap
-
15250000242 Truss Torx Screw M4 X 16Truss Torx Screw M4 X 16
-
16709000170 Pump RingPump Ring
-
17709000125 Female Quick Fitting. Includes 17 to 18Female Quick Fitting. Includes 17 to 18
-
18513033135 Locking ClipLocking Clip
