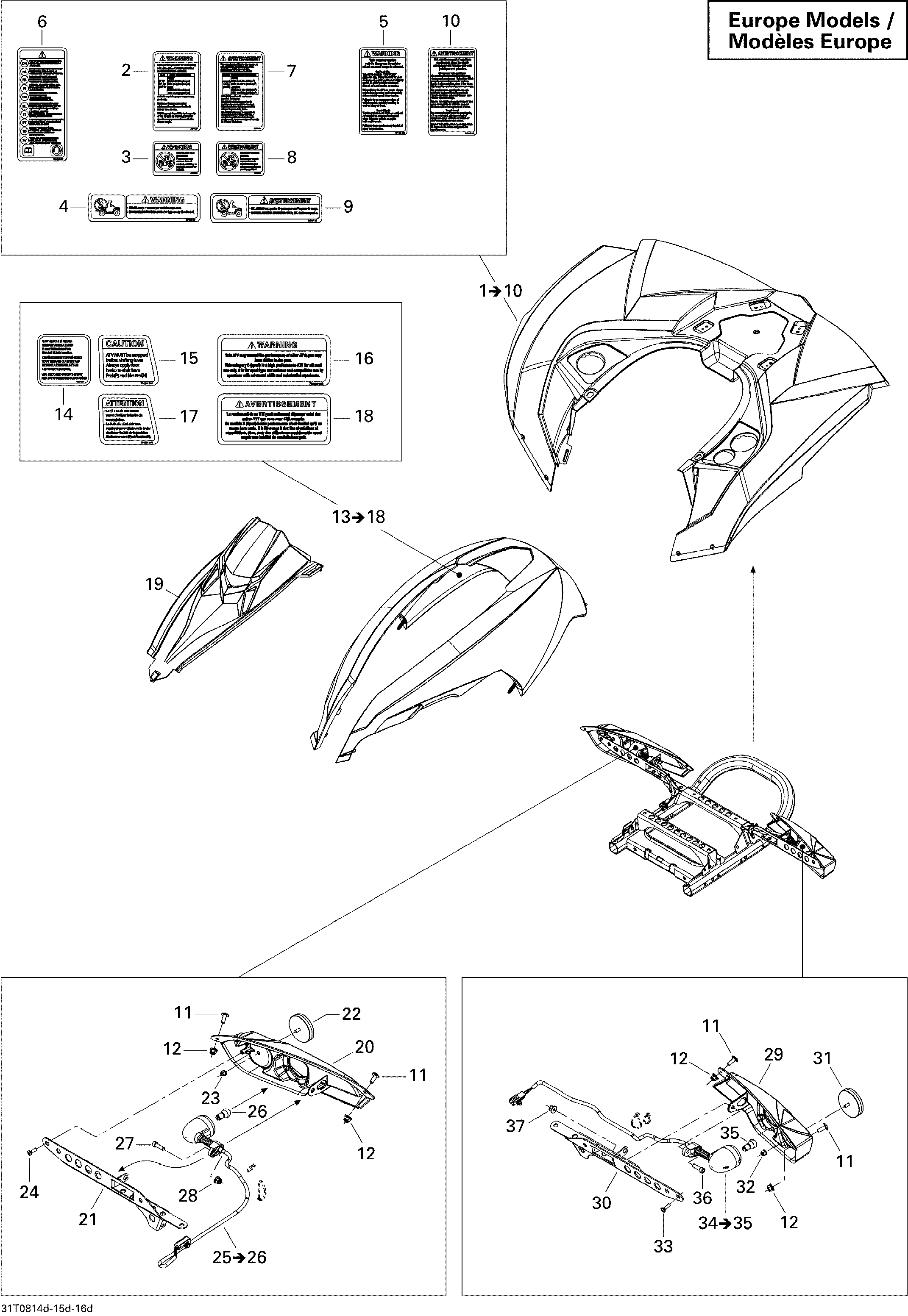

09- Body And Accessories Europe для BRP Renegade 800 X - 2008
-
№АртикулНазвание
-
1715000499 Rear Fender Kit, Black. Includes 1 to 10Rear Fender Kit, Black. Includes 1 to 10
-
2704901419 Warning Label, Tire Pressure. English VersionWarning Label, Tire Pressure. English Version
-
3704900005 Warning Label, Passenger. English VersionWarning Label, Passenger. English Version
-
4704901444 Europe Warning Label. English VersionEurope Warning Label. English Version
-
5704901112 Warning Label, Road Use. English VersionWarning Label, Road Use. English Version
-
6704901177 International Decal, MultilingualInternational Decal, Multilingual
-
7704901418 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
8704900006 Warning Label, Passenger. French VersionWarning Label, Passenger. French Version
-
9704901334 Warning Label, Load. French VersionWarning Label, Load. French Version
-
10704901158 Warning Label, Road Use. French VersionWarning Label, Road Use. French Version
-
11250000129 Truss Torx Screw M6 X 16Truss Torx Screw M6 X 16
-
12233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
13715000503 Central Panel. Includes 13 to 18Central Panel. Includes 13 to 18
-
14704901315 Transport Canada LabelTransport Canada Label
-
15704901309 Caution Label, Shifting Lever. English VersionCaution Label, Shifting Lever. English Version
-
16704900089 Warning Label, Performance. English VersionWarning Label, Performance. English Version
-
17704901330 Caution Label, Shifting Lever. French VersionCaution Label, Shifting Lever. French Version
-
18704900105 Warning Label, Performance. French VersionWarning Label, Performance. French Version
-
19705002460 DashboardDashboard
-
20705002265 RH Rear FaciaRH Rear Facia
-
21705002431 RH Rear Facia SupportRH Rear Facia Support
-
22705002408 Reflector, RedReflector, Red
-
23233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
24250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
25710001079 Flashing Light. Includes 25 to 26Flashing Light. Includes 25 to 26
-
26415129258 BulbBulb
-
27205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
28233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
29705002266 LH Rear FaciaLH Rear Facia
-
30705002432 LH Rear Facia SupportLH Rear Facia Support
-
31705002408 Reflector, RedReflector, Red
-
32233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
33250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
34710001080 Flashing Light. Includes 34 to 35Flashing Light. Includes 34 to 35
-
35415129258 BulbBulb
-
36205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
37233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
