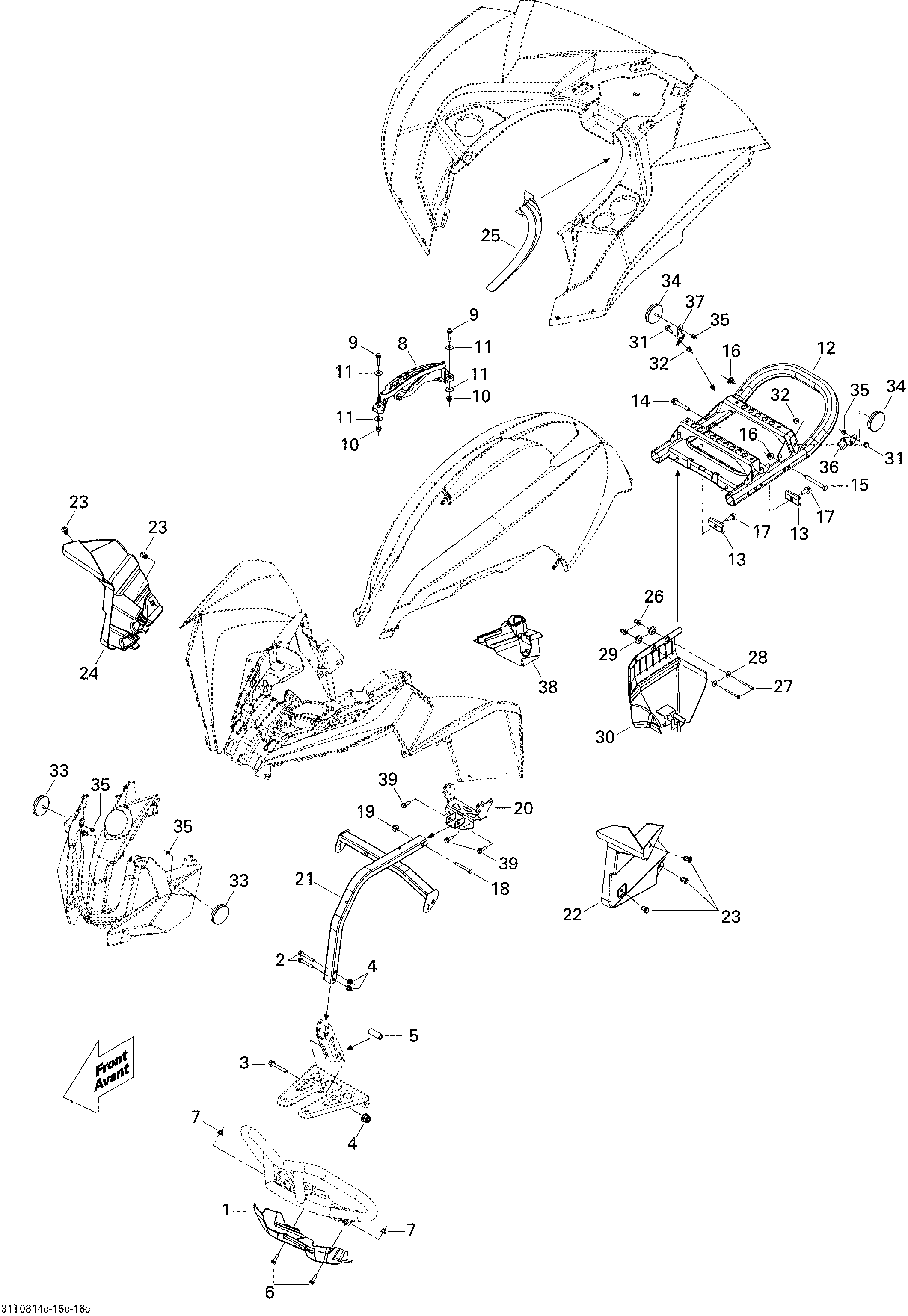

09- Body And Accessories 3 для BRP Renegade 800 X - 2008
-
№АртикулНазвание
-
1705002248 Front Proctection PlateFront Proctection Plate
-
2207664544 Flanged Hex Screw M6 X 45Flanged Hex Screw M6 X 45
-
3207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
4233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
5504152798 SpacerSpacer
-
6207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
8705001532 Lever IndicatorLever Indicator
-
9207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
10233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
11224061201 Flat WasherFlat Washer
-
12705002247 Rear SupportRear Support
-
13705002668 U ReinforcementU Reinforcement
-
14207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
15207087044 Hex Screw M8 X 70Hex Screw M8 X 70
-
16233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
17207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
18207664544 Flanged Hex Screw M6 X 45Flanged Hex Screw M6 X 45
-
19233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
20705002671 Fuse Holder SupportFuse Holder Support
-
21705002669 SupportSupport
-
22705002242 LH Inner FenderLH Inner Fender
-
23293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
24705002241 RH Inner FenderRH Inner Fender
-
25705002451 Reflective SheetReflective Sheet
-
26517303439 KnobKnob
-
27241055030 Hex. Screw K50 X 50Hex. Screw K50 X 50
-
28391301600 WasherWasher
-
29293720053 GrommetGrommet
-
30705002264 Wire CoverWire Cover
-
31207661684 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
32233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
33705002409 Reflector, Amber. Except Europe ModelReflector, Amber. Except Europe Model
-
34705002408 Reflector, Red. Except Europe ModelReflector, Red. Except Europe Model
-
35233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
36705002456 LH Reflector Support. Except Europe ModelLH Reflector Support. Except Europe Model
-
37705002459 RH Reflector Support. Except Europe ModelRH Reflector Support. Except Europe Model
-
38705002410 Master Cylinder CoverMaster Cylinder Cover
-
39207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
