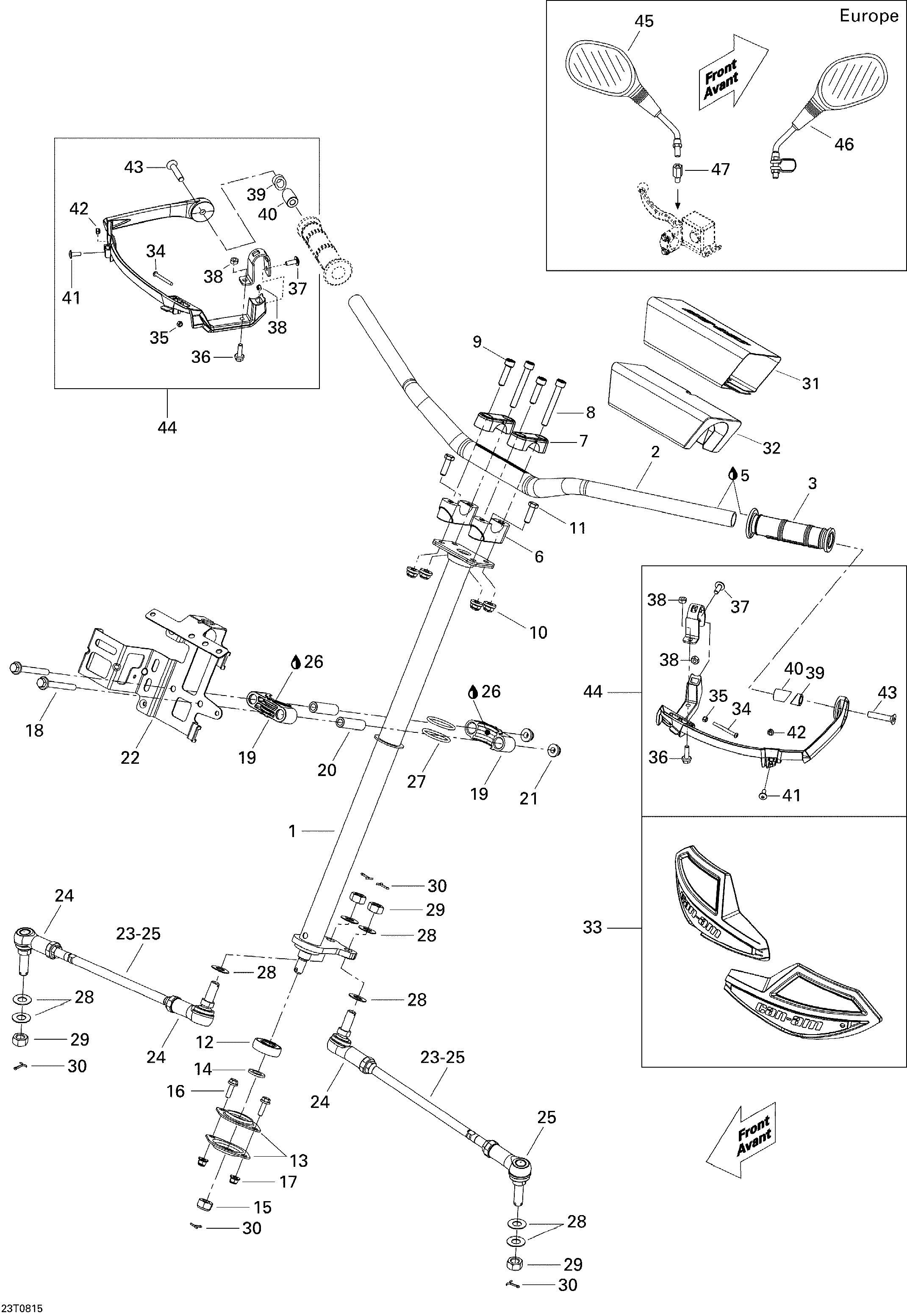

07- Steering для BRP Renegade 800 X - 2008
-
№АртикулНазвание
-
1709400283 Main Tube, BlackMain Tube, Black
-
2709400513 Aluminum- Handle BarAluminum- Handle Bar
-
3709400493 Handle GripHandle Grip
-
5293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
6709400497 Steering SupportSteering Support
-
7709400496 SupportSupport
-
8205086060 Socket Head Screw M8 X 60Socket Head Screw M8 X 60
-
9205083060 Socket Screw M8 X 30Socket Screw M8 X 30
-
10233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
11207183060 Hex. Screw M8 X 30Hex. Screw M8 X 30
-
12709400439 Ball BearingBall Bearing
-
13709400152 Thrust WasherThrust Washer
-
14234021410 Flat Washer 12 mmFlat Washer 12 mm
-
15250000047 Hex. Nut M12Hex. Nut M12
-
16207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
19709400471 Half BushingHalf Bushing
-
20709400072 BushingBushing
-
21233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22705201532 SupportSupport
-
23709400485 Tie Rod Ass'yTie Rod Ass'y
-
24709400486 Ball Joint, LH ThreadsBall Joint, LH Threads
-
25709400487 Ball Joint, RH ThreadsBall Joint, RH Threads
-
26293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
27293300068 O-RingO-Ring
-
28706200281 Hardened WasherHardened Washer
-
29250100099 Nut M12Nut M12
-
30211400013 Cotter PinCotter Pin
-
31709400519 CoverCover
-
32709400422 FoamFoam
-
33715000525 Deflector Kit. XDeflector Kit. X
-
34205444086 Socket Head Screw M4 X 40. XSocket Head Screw M4 X 40. X
-
35232541414 Elastic Stop Nut M4. XElastic Stop Nut M4. X
-
36207662044 Hex. Flanged Screw M6 X 20. XHex. Flanged Screw M6 X 20. X
-
37250000223 Torx Screw. XTorx Screw. X
-
38232561600 Hex. Flanged Elastic Nut M6. XHex. Flanged Elastic Nut M6. X
-
39709400161 Bracket. XBracket. X
-
40709400162 Bracket. XBracket. X
-
41250000145 Torx Screw M5 X 14. XTorx Screw M5 X 14. X
-
42232551600 Hex. Elastic Nut M5. XHex. Elastic Nut M5. X
-
43205384034 Socket Head Screw. XSocket Head Screw. X
-
44715000545 Deflector Support Kit. XDeflector Support Kit. X
-
45709400406 LH Mirror. EuropeLH Mirror. Europe
-
46709400407 RH Mirror. EuropeRH Mirror. Europe
-
47705000673 Mirror Support. EuropeMirror Support. Europe
