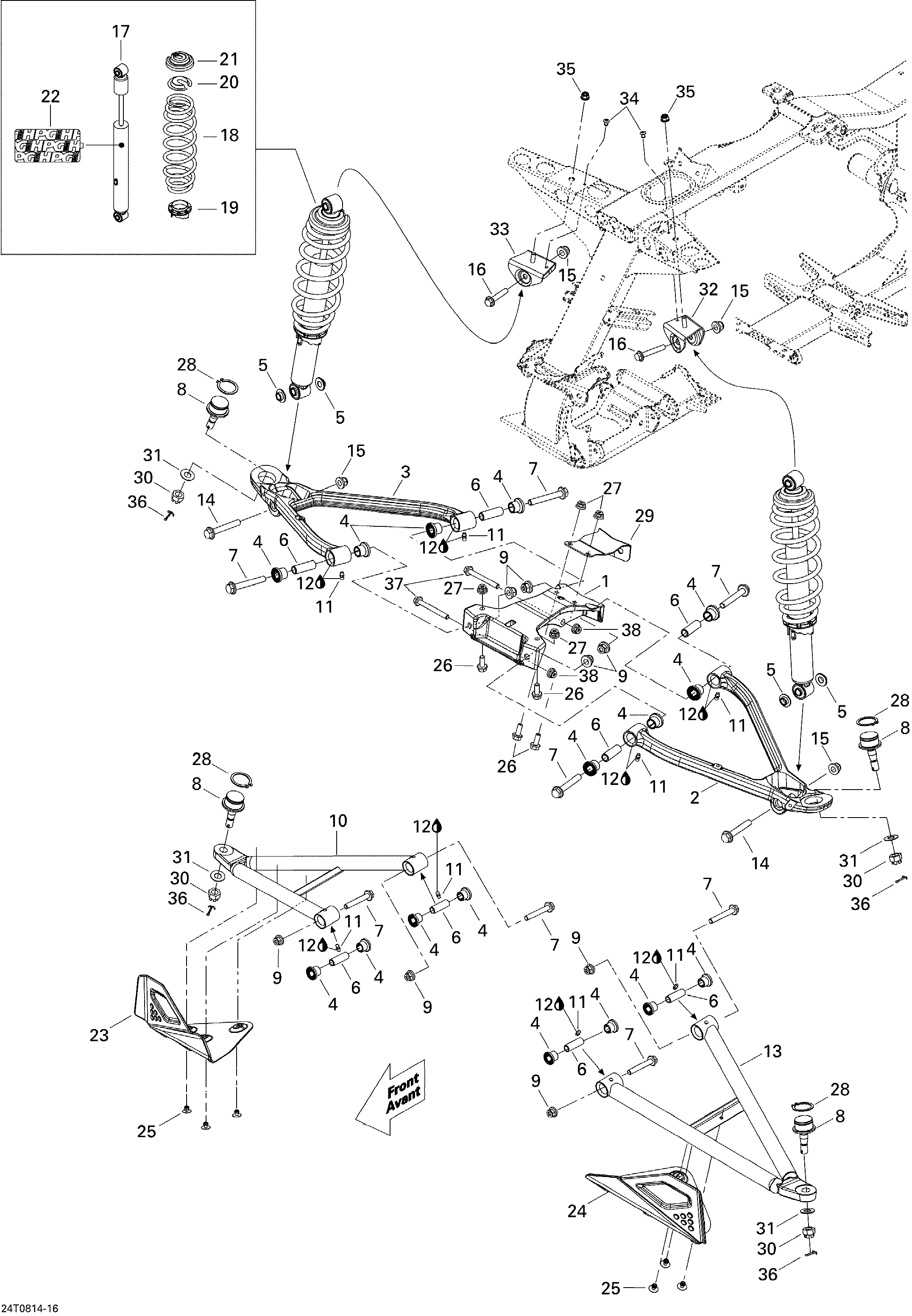

07- Front Suspension для BRP Renegade 500 - 2008
-
№АртикулНазвание
-
1706200476 Upper Arm BracketUpper Arm Bracket
-
2706200602 LH Upper ArmLH Upper Arm
-
3706200603 RH Upper ArmRH Upper Arm
-
4706200181 CushionCushion
-
5706200677 Spacer BushingSpacer Bushing
-
6706200678 Inner BushingInner Bushing
-
7207607046 Hex Flanged Screw M10 X 70Hex Flanged Screw M10 X 70
-
8706200653 Ball JointBall Joint
-
9233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
10706200612 RH Suspension Arm, BlackRH Suspension Arm, Black
-
11408200700 Grease FittingGrease Fitting
-
12293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
13706200604 LH Suspension Arm, blackLH Suspension Arm, black
-
14207606546 Hex Flanged Screw M10 X 65Hex Flanged Screw M10 X 65
-
15233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
16207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
17706200667 Front ShockFront Shock
-
18706200632 Shock SpringShock Spring
-
19706000294 Adjuster RingAdjuster Ring
-
20503191611 Spring StopperSpring Stopper
-
21503191610 CapCap
-
23706200616 RH ProtectorRH Protector
-
24706200615 LH ProtectorLH Protector
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
26207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
27233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
28293370009 Circlip 32 mmCirclip 32 mm
-
29706200405 Upper Arm BracketUpper Arm Bracket
-
30250100099 Nut M12Nut M12
-
31706200281 Hardened WasherHardened Washer
-
32706200735 LH Upper BracketLH Upper Bracket
-
33706200736 RH Upper BracketRH Upper Bracket
-
34390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
35233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
36211400017 Cotter PinCotter Pin
-
37207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
38233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
