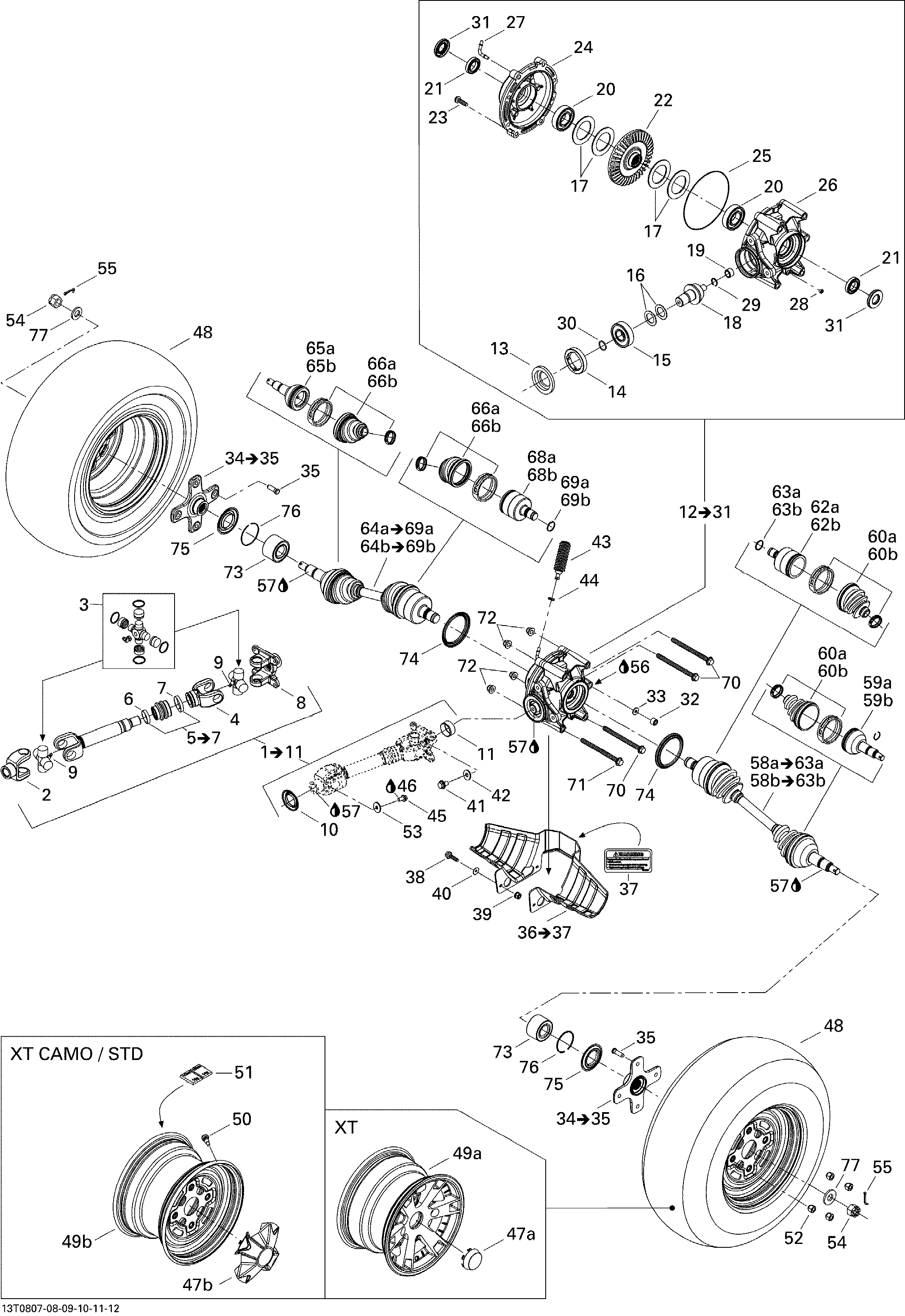

08- Drive System, Rear XT для BRP Outlander MAX 800 XT - 2008
-
№АртикулНазвание
-
1703500705 Drive Axle Ass'y. Includes 1 to 11Drive Axle Ass'y. Includes 1 to 11
-
2705500371 Fix JointFix Joint
-
3703000022 Unit Pack KitUnit Pack Kit
-
4705500528 Sliding JointSliding Joint
-
5703500255 Rubber Boot KitRubber Boot Kit
-
6293650138 Oetiker ClampOetiker Clamp
-
8705500526 Disc JointDisc Joint
-
9705500841 Grease FittingGrease Fitting
-
10705500902 ProtectorProtector
-
11705400036 Wear RingWear Ring
-
12705500891 Differential. Includes 12 to 31Differential. Includes 12 to 31
-
13705400027 Oil SealOil Seal
-
14705500905 NutNut
-
15705500260 Ball BearingBall Bearing
-
16705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
16703500049 Pinion Shim KitPinion Shim Kit
-
17703500548 Differential Shim KitDifferential Shim Kit
-
18705500268 Gear, 10 TeethGear, 10 Teeth
-
19705500261 Needle BearingNeedle Bearing
-
20705500749 Ball BearingBall Bearing
-
21705500750 Ball BearingBall Bearing
-
22705500775 Gear, 36 ToothGear, 36 Tooth
-
23705500892 ScrewScrew
-
24705500697 Rear Differential CoverRear Differential Cover
-
25705500265 SealSeal
-
26705500843 Rear CoverRear Cover
-
27705500893 Vent ValveVent Valve
-
28705500245 Drain PlugDrain Plug
-
29705500269 Retaining RingRetaining Ring
-
30705500267 O-RingO-Ring
-
31705500751 Oil SealOil Seal
-
32250400041 Screw PlugScrew Plug
-
33705500506 Copper WasherCopper Washer
-
34705500909 Wheel Hub Ass'y. Includes 34 to 35Wheel Hub Ass'y. Includes 34 to 35
-
35250300034 Wheel StudWheel Stud
-
36703500289 Protector Kit. Includes 36 to 37Protector Kit. Includes 36 to 37
-
37704900009 Warning Label, HitchWarning Label, Hitch
-
38207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
39233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
40391302000 Flat WasherFlat Washer
-
41250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
42250200014 Flat WasherFlat Washer
-
43705400552 Rubber BellowRubber Bellow
-
44293650042 Oetiker ClampOetiker Clamp
-
45250000247 Flanged Hex Screw M10 X 16Flanged Hex Screw M10 X 16
-
46293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
47a705400504 Wheel Cap. XT, Red, Yellow, GreenWheel Cap. XT, Red, Yellow, Green
-
47b705400563 Wheel Cap. XT CAMOWheel Cap. XT CAMO
-
48705500606 Rear Tire. XT EURORear Tire. XT EURO
-
48705500940 Rear Tire. XT, C/U, INTRear Tire. XT, C/U, INT
-
49a705500798 Rear Rim. XT, Red, Yellow, GreenRear Rim. XT, Red, Yellow, Green
-
49b705500880 Rear Rim. XT CAMORear Rim. XT CAMO
-
50705400193 Rim ValveRim Valve
-
51705501430 Adhesive Weight, 1/4 OzAdhesive Weight, 1/4 Oz
-
51705500824 Adhesive Weight, 1/2 OzAdhesive Weight, 1/2 Oz
-
52250100082 Chrome Wheel Nut M10 X 1.25. XT, Red, Yellow, GreenChrome Wheel Nut M10 X 1.25. XT, Red, Yellow, Green
-
52250100042 Wheel Nut. XT CAMOWheel Nut. XT CAMO
-
53250200014 Flat WasherFlat Washer
-
54250100047 Hex Castellated Nut M18Hex Castellated Nut M18
-
55250400036 Cotter PinCotter Pin
-
56293600011 Pump Oil, 75W90, 12 X 6 OzPump Oil, 75W90, 12 X 6 Oz
-
57293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
58a705500867 LH CV Joint Ass'y (7mm wide Clamp Version). Includes 58a to 63aLH CV Joint Ass'y (7mm wide Clamp Version). Includes 58a to 63a
-
59a705500869 CV Joint (7mm wide Clamp Version)CV Joint (7mm wide Clamp Version)
-
60a705500953 Boot Kit (7mm wide Clamp Version)Boot Kit (7mm wide Clamp Version)
-
62a705500871 Plunging Joint (7mm wide Clamp Version)Plunging Joint (7mm wide Clamp Version)
-
63a705500845 CirclipCirclip
-
58b705500979 LH CV Joint Ass'y (10mm wide Clamp Version). Includes 58b to 63bLH CV Joint Ass'y (10mm wide Clamp Version). Includes 58b to 63b
-
59b705500980 CV Joint (10mm wide Clamp Version)CV Joint (10mm wide Clamp Version)
-
60b705500870 Boot Kit (10mm wide Clamp Version)Boot Kit (10mm wide Clamp Version)
-
63b705500845 CirclipCirclip
-
64a705500868 RH CV Joint Ass'y (7mm wide Clamp Version). Includes 64a to 69aRH CV Joint Ass'y (7mm wide Clamp Version). Includes 64a to 69a
-
65a705500869 CV Joint (7mm wide Clamp Version)CV Joint (7mm wide Clamp Version)
-
66a705500953 Boot Kit (7mm wide Clamp Version)Boot Kit (7mm wide Clamp Version)
-
68a705500871 Plunging Joint (7mm wide Clamp Version)Plunging Joint (7mm wide Clamp Version)
-
69a705500845 CirclipCirclip
-
64b705500983 RH CV Joint Ass'y (10mm wide Clamp Version). Includes 64b to 69bRH CV Joint Ass'y (10mm wide Clamp Version). Includes 64b to 69b
-
65b705500980 CV Joint (10mm wide Clamp Version)CV Joint (10mm wide Clamp Version)
-
66b705500870 Boot Kit (10mm wide Clamp Version)Boot Kit (10mm wide Clamp Version)
-
69b705500845 CirclipCirclip
-
70230603046 Flanged Hex Screw, M10 X 130Flanged Hex Screw, M10 X 130
-
71230603546 Hex Flanged Screw M10 X 135Hex Flanged Screw M10 X 135
-
72233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
73293350040 Cone BearingCone Bearing
-
74705500900 Wear SleeveWear Sleeve
-
75705500899 Wear SleeveWear Sleeve
-
76293370019 CirclipCirclip
-
77250200049 Spring WasherSpring Washer
