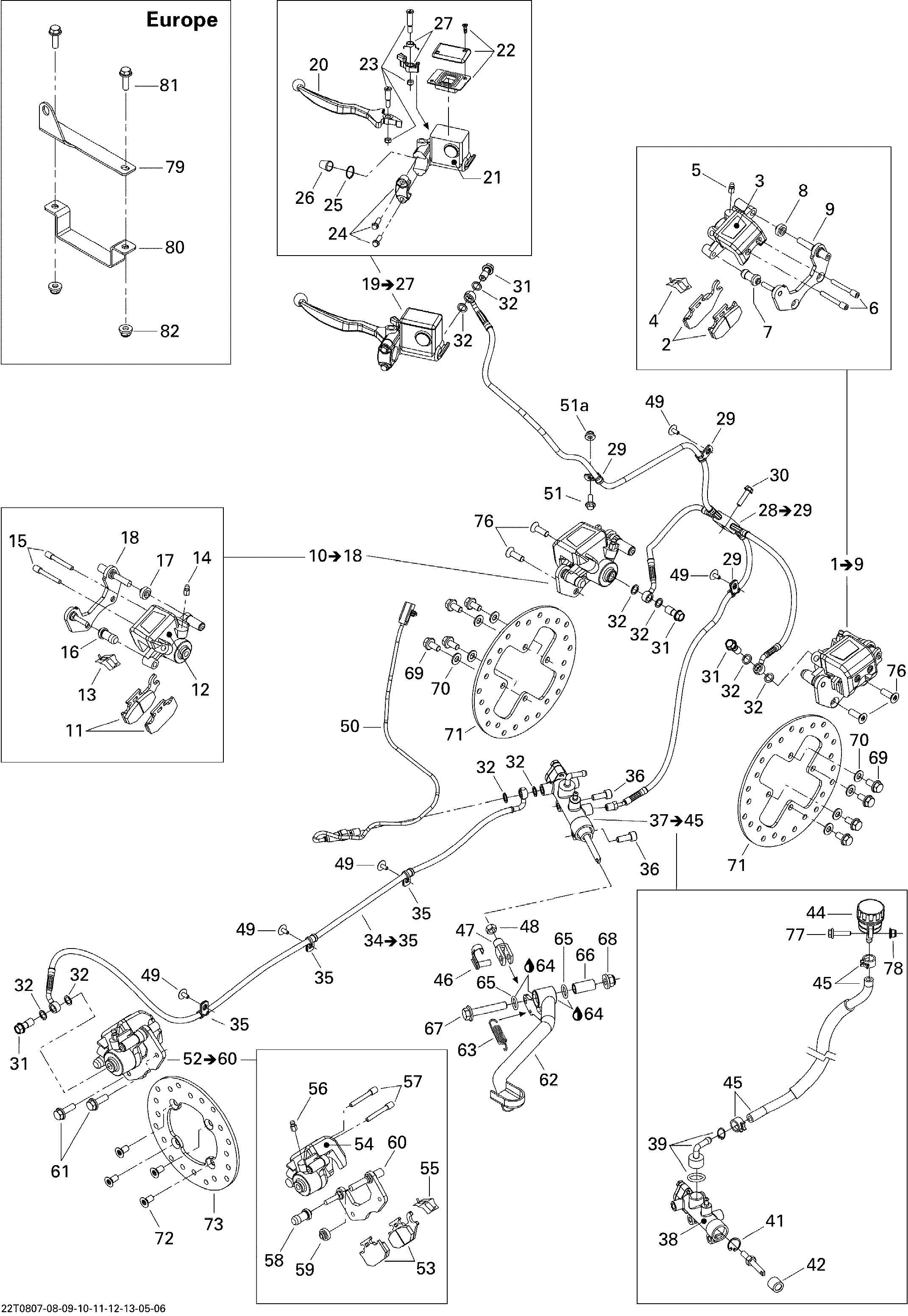

06- Hydraulic Brakes для BRP Outlander MAX 800 XT - 2008
-
№АртикулНазвание
-
1705600575 RH Caliper. Includes 1 to 9RH Caliper. Includes 1 to 9
-
2705600349 Brake Pad KitBrake Pad Kit
-
3705600078 Piston SetPiston Set
-
4705600079 SpringSpring
-
5705600080 Bleeding ScrewBleeding Screw
-
6705600081 Pin SetPin Set
-
7705600082 Compression BootCompression Boot
-
8705600083 Compression BootCompression Boot
-
10705600576 LH Caliper. Includes 10 to 18LH Caliper. Includes 10 to 18
-
11705600350 RH Brake Pad KitRH Brake Pad Kit
-
12705600078 Piston SetPiston Set
-
13705600079 SpringSpring
-
14705600080 Bleeding ScrewBleeding Screw
-
15705600081 Pin SetPin Set
-
16705600082 Compression BootCompression Boot
-
17705600083 Compression BootCompression Boot
-
18705600297 LH Caliper SupportLH Caliper Support
-
19705600578 Master Cylinder. Includes 19 to 27Master Cylinder. Includes 19 to 27
-
20705600243 Lever ArmLever Arm
-
21705600244 Piston KitPiston Kit
-
22705600084 Cap SetCap Set
-
23705600246 Brake Lever Bolt KitBrake Lever Bolt Kit
-
24705600087 Bracket KitBracket Kit
-
25705600088 CirclipCirclip
-
26705600089 Compression BootCompression Boot
-
27705600477 Parking Kit, Brake Lever LockParking Kit, Brake Lever Lock
-
28705600579 Front Hose. Includes 28 to 29Front Hose. Includes 28 to 29
-
29705600459 ClampClamp
-
30210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
31705600396 Banjo BoltBanjo Bolt
-
32705600310 Copper WasherCopper Washer
-
34705600582 Rear Hose. Includes 34 to 35Rear Hose. Includes 34 to 35
-
35705600459 ClampClamp
-
36250000136 Socket Screw M8 X 20, Scotch GripSocket Screw M8 X 20, Scotch Grip
-
37705600543 Master Cylinder. Includes 37 to 45Master Cylinder. Includes 37 to 45
-
38705600255 Piston SetPiston Set
-
39705600064 Pusher Bracket, Hose ConnectorPusher Bracket, Hose Connector
-
41705600068 CirclipCirclip
-
42705600090 Compression BootCompression Boot
-
44705600182 Oil Tank, Brake Fluid ReservoirOil Tank, Brake Fluid Reservoir
-
45705600262 Oil Housing HoseOil Housing Hose
-
46250400007 PinPin
-
47705600100 YokeYoke
-
48232081414 Hex Nut M8Hex Nut M8
-
49390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
50710000853 Brake SwitchBrake Switch
-
51207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
51a233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
52705600577 Rear Caliper. Includes 52 to 60Rear Caliper. Includes 52 to 60
-
53705600398 Brake Pad KitBrake Pad Kit
-
54705600399 Piston SetPiston Set
-
55705600079 SpringSpring
-
56705600080 Bleeding ScrewBleeding Screw
-
57705600081 Pin SetPin Set
-
58705600082 Compression BootCompression Boot
-
59705600083 Compression BootCompression Boot
-
60705600298 LH Caliper SupportLH Caliper Support
-
61207582544 Hex Flanged Screw M8 X 25, Scotch GripHex Flanged Screw M8 X 25, Scotch Grip
-
62705600555 Brake Pedal, BlackBrake Pedal, Black
-
63705600098 Break Pedal SpringBreak Pedal Spring
-
64293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
65293300053 O-RingO-Ring
-
66705600283 SpacerSpacer
-
67207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
68233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
69207581646 Hex Flanged Screw M8 X 16, Scotch GripHex Flanged Screw M8 X 16, Scotch Grip
-
70234281474 Conical Spring Washer M8Conical Spring Washer M8
-
71705600279 Front Brake DiscFront Brake Disc
-
72235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
73705600271 Brake DiscBrake Disc
-
76250000143 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
77207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
78233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
79705201540 Support. EuropeSupport. Europe
-
80705000416 Bracket. EuropeBracket. Europe
-
81207682544 Hex. Flanged Screw M8 X 25. EuropeHex. Flanged Screw M8 X 25. Europe
-
82233281414 Hex Flanged Elastic Nut M8. EuropeHex Flanged Elastic Nut M8. Europe
