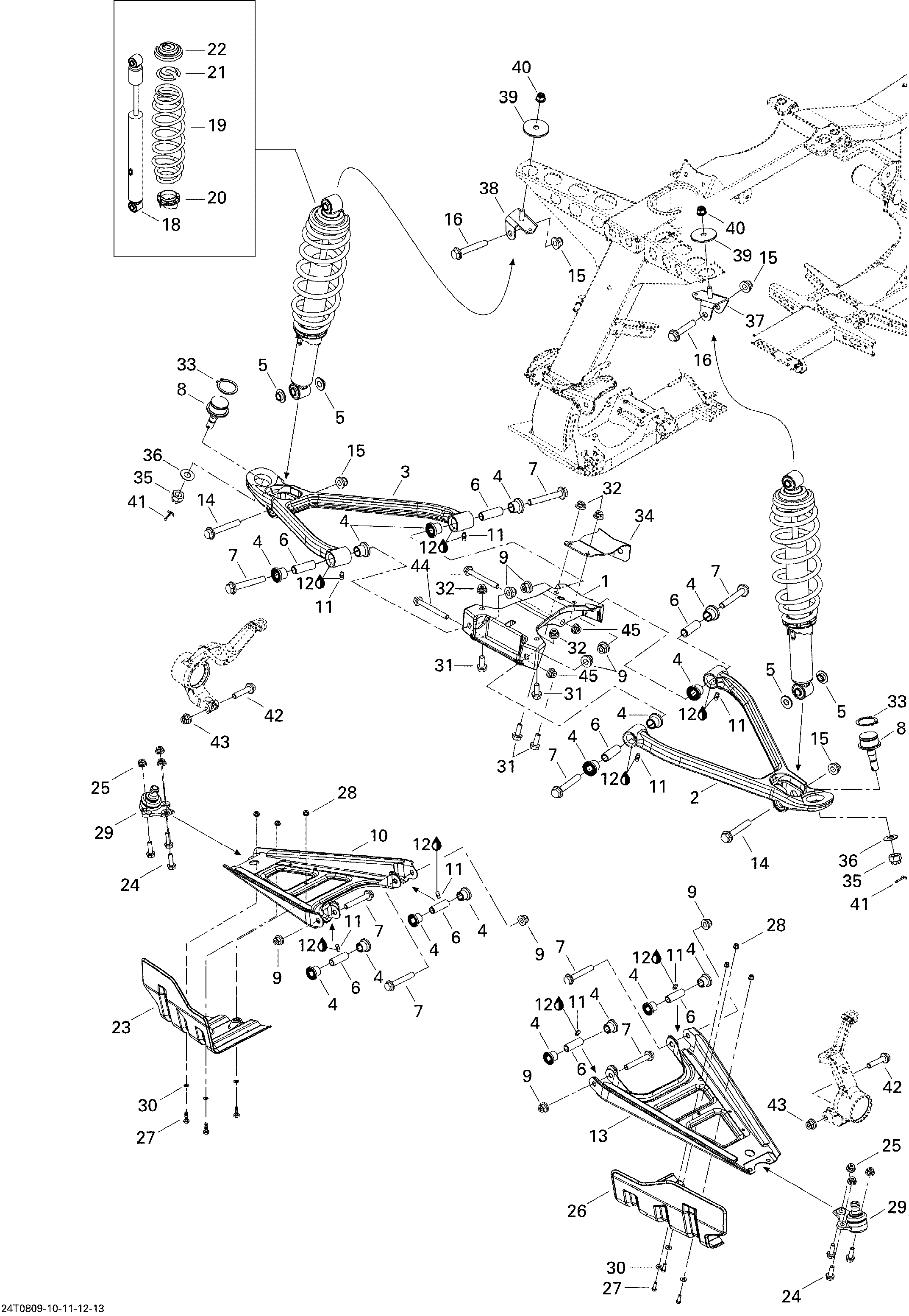

07- Front Suspension для BRP Outlander MAX 800 LTD - 2008
-
№АртикулНазвание
-
1706200476 Upper Arm BracketUpper Arm Bracket
-
2706200643 LH Upper ArmLH Upper Arm
-
3706200644 RH Upper ArmRH Upper Arm
-
4706200181 CushionCushion
-
5706200677 Spacer BushingSpacer Bushing
-
6706200678 Inner BushingInner Bushing
-
7207607046 Hex Flanged Screw M10 X 70Hex Flanged Screw M10 X 70
-
8706200653 Ball JointBall Joint
-
9233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
10706200509 Suspension Arm, BlackSuspension Arm, Black
-
11408200700 Grease FittingGrease Fitting
-
12293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
13706200509 Suspension Arm, BlackSuspension Arm, Black
-
14207606546 Hex Flanged Screw M10 X 65Hex Flanged Screw M10 X 65
-
15233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
16207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
18706200408 Front ShockFront Shock
-
19706200702 SpringSpring
-
20706000294 Adjuster RingAdjuster Ring
-
21503191611 Spring StopperSpring Stopper
-
22503191610 CapCap
-
23706200214 RH ProtectorRH Protector
-
24207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
25233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
26706200213 LH ProtectorLH Protector
-
27207151644 Hex Screw M5 X 16Hex Screw M5 X 16
-
28233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
29706200444 Joint AttachmentJoint Attachment
-
30391301700 WasherWasher
-
31207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
32233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
33293370009 Circlip 32 mmCirclip 32 mm
-
34706200405 Upper Arm BracketUpper Arm Bracket
-
35250100099 Nut M12Nut M12
-
36706200281 Hardened WasherHardened Washer
-
37706200729 LH Upper BracketLH Upper Bracket
-
38706200730 RH Upper BracketRH Upper Bracket
-
39706200724 SpacerSpacer
-
40233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
41211400017 Cotter PinCotter Pin
-
42207604544 Hex Flanged Screw M10 X 45Hex Flanged Screw M10 X 45
-
43233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
44207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
45233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
