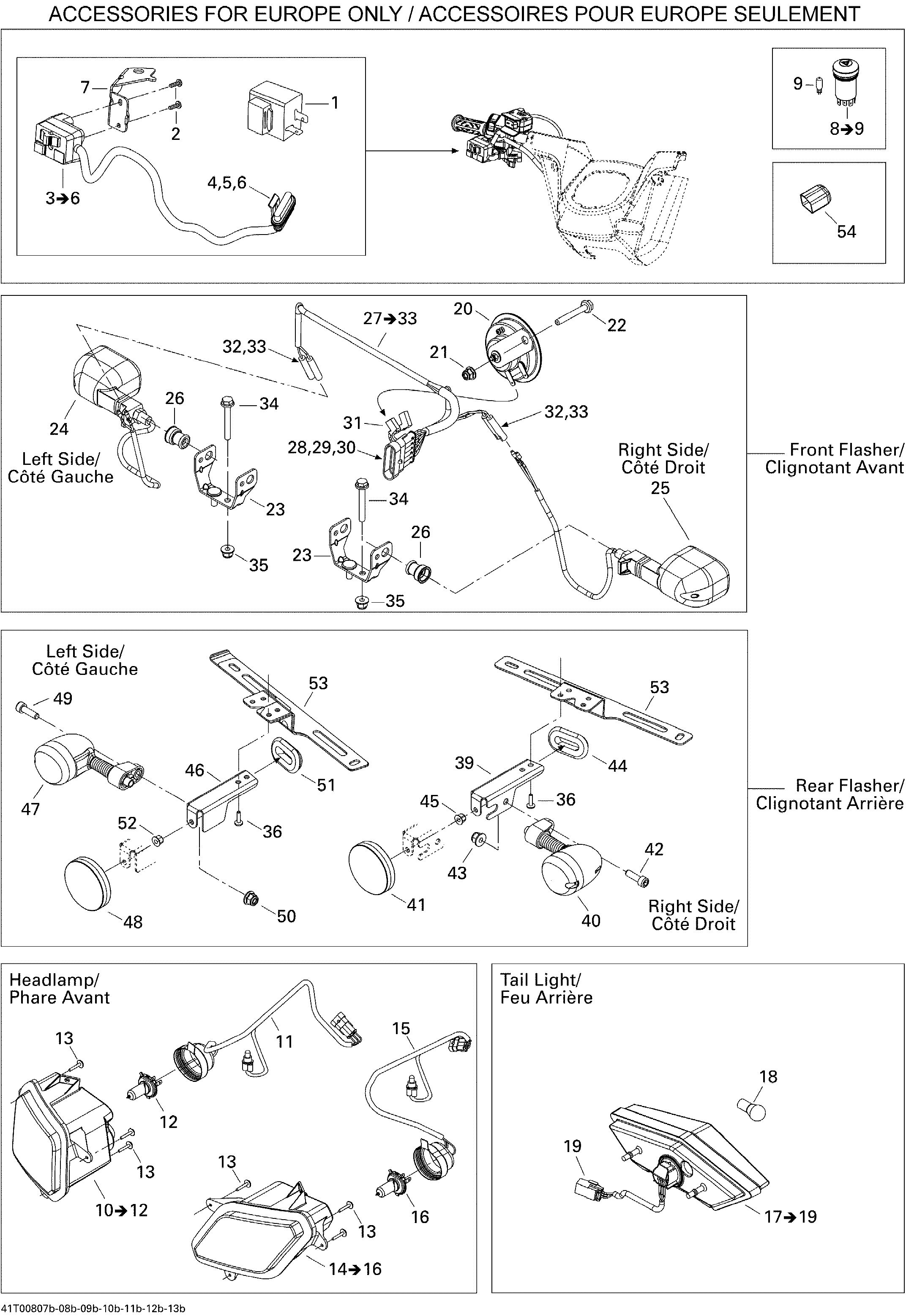

10- Electrical Accessories EURO для BRP Outlander MAX 650 STD - 2008

  • №
    Артикул
    Название
  • 1
    710000581 Flasher Unit
    Flasher Unit
  • 2
    207141260 Screw Hex. M4 X 12
    Screw Hex. M4 X 12
  • 3
    710000904 Flasher Switch. Includes 3 to 6
    Flasher Switch. Includes 3 to 6
  • 4
    710000780 Connector
    Connector
  • 5
    278001014 Female Terminal
    Female Terminal
  • 6
    278001013 Wire Seal
    Wire Seal
  • 7
    710000905 Switch Support
    Switch Support
  • 8
    710000367 Emergency Switch. Includes 8 to 9
    Emergency Switch. Includes 8 to 9
  • 9
    710000661 Emergency Switch Light
    Emergency Switch Light
  • 10
    710000861 RH Headlamp. Includes 10 to 12
    RH Headlamp. Includes 10 to 12
  • 11
    710000923 Headlamp Harness
    Headlamp Harness
  • 12
    710000871 Bulb, 12 V / 35/35 W
    Bulb, 12 V / 35/35 W
  • 13
    250000101 Plastite Screw Type K-40, M4 X 25
    Plastite Screw Type K-40, M4 X 25
  • 14
    710000862 LH Headlamp. Includes 14 to 16
    LH Headlamp. Includes 14 to 16
  • 15
    710000923 Headlamp Harness
    Headlamp Harness
  • 16
    710000871 Bulb, 12 V / 35/35 W
    Bulb, 12 V / 35/35 W
  • 17
    710001204 Tail Light Housing. Includes 17 to 19
    Tail Light Housing. Includes 17 to 19
  • 18
    410504100 Tail Light Bulb
    Tail Light Bulb
  • 19
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 20
    710001281 Horn
    Horn
  • 21
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 22
    207664544 Flanged Hex Screw M6 X 45
    Flanged Hex Screw M6 X 45
  • 23
    710000978 Bracket
    Bracket
  • 24
    710000546 Flasher
    Flasher
  • 25
    710000547 Flasher
    Flasher
  • 26
    710000765 Protection Cap
    Protection Cap
  • 27
    710000814 Front Fender Harness
    Front Fender Harness
  • 28
    409012900 Male Terminal
    Male Terminal
  • 29
    710000815 Housing, 6 Circuits
    Housing, 6 Circuits
  • 30
    278001013 Wire Seal
    Wire Seal
  • 31
    409010300 Female Terminal
    Female Terminal
  • 32
    278001007 Insulated Sheath
    Insulated Sheath
  • 33
    710000421 Female Terminal
    Female Terminal
  • 34
    207664544 Flanged Hex Screw M6 X 45
    Flanged Hex Screw M6 X 45
  • 35
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 36
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 39
    710001329 Bracket
    Bracket
  • 40
    710001079 Flashing Light
    Flashing Light
  • 41
    705002408 Reflector, Red
    Reflector, Red
  • 42
    205062044 Socket Head Screw M6 X 20
    Socket Head Screw M6 X 20
  • 43
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 44
    705002665 Grommet
    Grommet
  • 45
    233251414 Hex Flanged Elastic Nut M5
    Hex Flanged Elastic Nut M5
  • 46
    710001330 Bracket
    Bracket
  • 47
    710001080 Flashing Light
    Flashing Light
  • 48
    705002408 Reflector, Red
    Reflector, Red
  • 49
    205062044 Socket Head Screw M6 X 20
    Socket Head Screw M6 X 20
  • 50
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 51
    705002665 Grommet
    Grommet
  • 52
    233251414 Hex Flanged Elastic Nut M5
    Hex Flanged Elastic Nut M5
  • 53
    710001241 Bracket
    Bracket
  • 54
    710001370 Cap
    Cap
