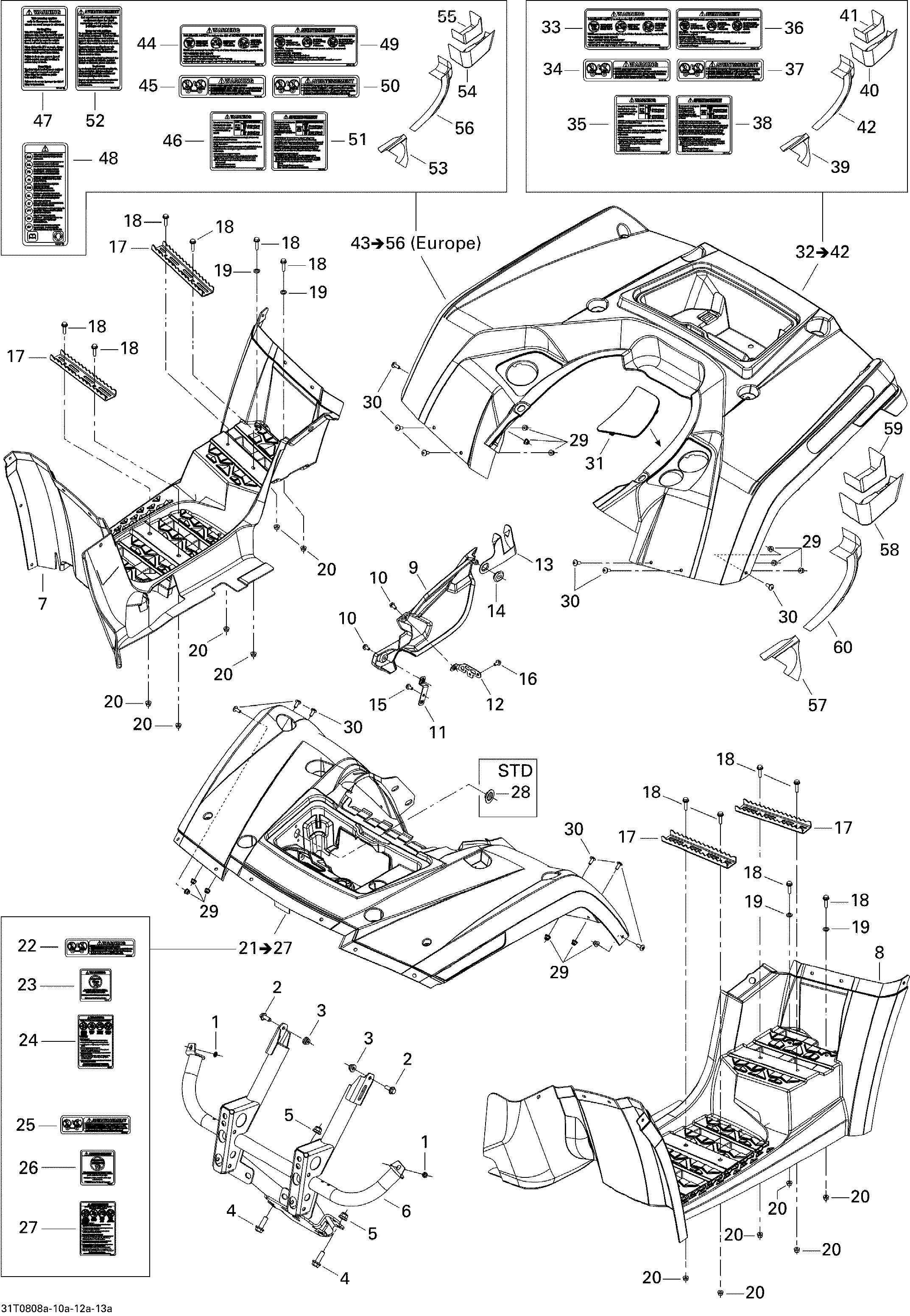

09- Body And Accessories 1, XT для BRP Outlander MAX 500 XT - 2008
-
№АртикулНазвание
-
1732610072 Push NutPush Nut
-
2207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4207603044 Hex Flanged Screw M10 X 30Hex Flanged Screw M10 X 30
-
5233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
6705001827 Front Bumper. Red, Yellow, GreenFront Bumper. Red, Yellow, Green
-
6705002005 Front Bumper. CamoFront Bumper. Camo
-
7705001981 RH Footboard Ass'yRH Footboard Ass'y
-
8705001940 LH FootboardLH Footboard
-
9705002534 Engine CoverEngine Cover
-
10210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
11705002666 Engine Cover SupportEngine Cover Support
-
12705002667 Engine Cover SupportEngine Cover Support
-
13705002121 Engine Cover SupportEngine Cover Support
-
14705005156 Oblong WasherOblong Washer
-
15210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
16207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
17705000428 FootrestFootrest
-
18207662584 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
19234161471 Lock Washer M6, BlackLock Washer M6, Black
-
20233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
21703500588 Front Fender Kit, Red. Includes 21 to 27, Viper RedFront Fender Kit, Red. Includes 21 to 27, Viper Red
-
21703500589 Front Fender Kit, Yellow. Includes 21 to 27, YellowFront Fender Kit, Yellow. Includes 21 to 27, Yellow
-
21703500590 Front Fender Kit, Green. Includes 21 to 27, Laurentian GreenFront Fender Kit, Green. Includes 21 to 27, Laurentian Green
-
21703500685 Front Fender Kit, Camo. Includes 21 to 27, CamoFront Fender Kit, Camo. Includes 21 to 27, Camo
-
22704901089 Warning Label, Load. English VersionWarning Label, Load. English Version
-
23704900642 Warning Label, Under 16 Years Old. English VersionWarning Label, Under 16 Years Old. English Version
-
24704900904 Warning Label, Death And Injuries. English VersionWarning Label, Death And Injuries. English Version
-
25704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
26704900436 Warning Label, Under 16 Years Old. French VersionWarning Label, Under 16 Years Old. French Version
-
27704900905 Warning Label, Death And Injuries. French VersionWarning Label, Death And Injuries. French Version
-
29233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
30250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
31705001910 LH Cap, BlackLH Cap, Black
-
32703500581 Rear Fender, Red. Includes 32 to 42, Viper RedRear Fender, Red. Includes 32 to 42, Viper Red
-
32703500582 Rear Fender, Yellow. Includes 32 to 42, YellowRear Fender, Yellow. Includes 32 to 42, Yellow
-
32703500583 Rear Fender, Green. Includes 32 to 42, Laurentian GreenRear Fender, Green. Includes 32 to 42, Laurentian Green
-
32703500687 Rear Fender, Camo. Includes 32 to 42, CamoRear Fender, Camo. Includes 32 to 42, Camo
-
33704901113 Warning Label, Under 12 Years Old. English VersionWarning Label, Under 12 Years Old. English Version
-
34704901089 Warning Label, Load. English VersionWarning Label, Load. English Version
-
35704901119 Warning Label, Tire Pressure. English VersionWarning Label, Tire Pressure. English Version
-
36704901122 Warning Label, Under 12 Years Old. French VersionWarning Label, Under 12 Years Old. French Version
-
37704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
38704901159 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
39705002014 Reflective SheetReflective Sheet
-
40705002191 Reflective SheetReflective Sheet
-
41705002189 Reflective SheetReflective Sheet
-
42705002085 Reflective SheetReflective Sheet
-
43703500594 Rear Fender, Red. Includes 43 to 56, Viper Red, EuropeRear Fender, Red. Includes 43 to 56, Viper Red, Europe
-
43703500595 Rear Fender, Yellow. Includes 43 to 56, Yellow, EuropeRear Fender, Yellow. Includes 43 to 56, Yellow, Europe
-
43703500596 Rear Fender, Green. Includes 43 to 56, Laurentian Green, EuropeRear Fender, Green. Includes 43 to 56, Laurentian Green, Europe
-
44704901113 Warning Label, Under 12 Years Old. English VersionWarning Label, Under 12 Years Old. English Version
-
45704901089 Warning Label, Load. English VersionWarning Label, Load. English Version
-
46704501119 Warning Label, Tire Pressure. English VersionWarning Label, Tire Pressure. English Version
-
47704901112 Warning Label, Road Use. English VersionWarning Label, Road Use. English Version
-
48704901177 International Decal, MultilingualInternational Decal, Multilingual
-
49704901122 Warning Label, Under 12 Years Old. French VersionWarning Label, Under 12 Years Old. French Version
-
50704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
51704901159 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
52704901158 Warning Label, Road Use. French VersionWarning Label, Road Use. French Version
-
53705002014 Reflective SheetReflective Sheet
-
54705002191 Reflective SheetReflective Sheet
-
55705002189 Reflective SheetReflective Sheet
-
56705002085 Reflective SheetReflective Sheet
-
57705002014 Reflective SheetReflective Sheet
-
58705002191 Reflective SheetReflective Sheet
-
59705002189 Reflective SheetReflective Sheet
-
60705002085 Reflective SheetReflective Sheet
