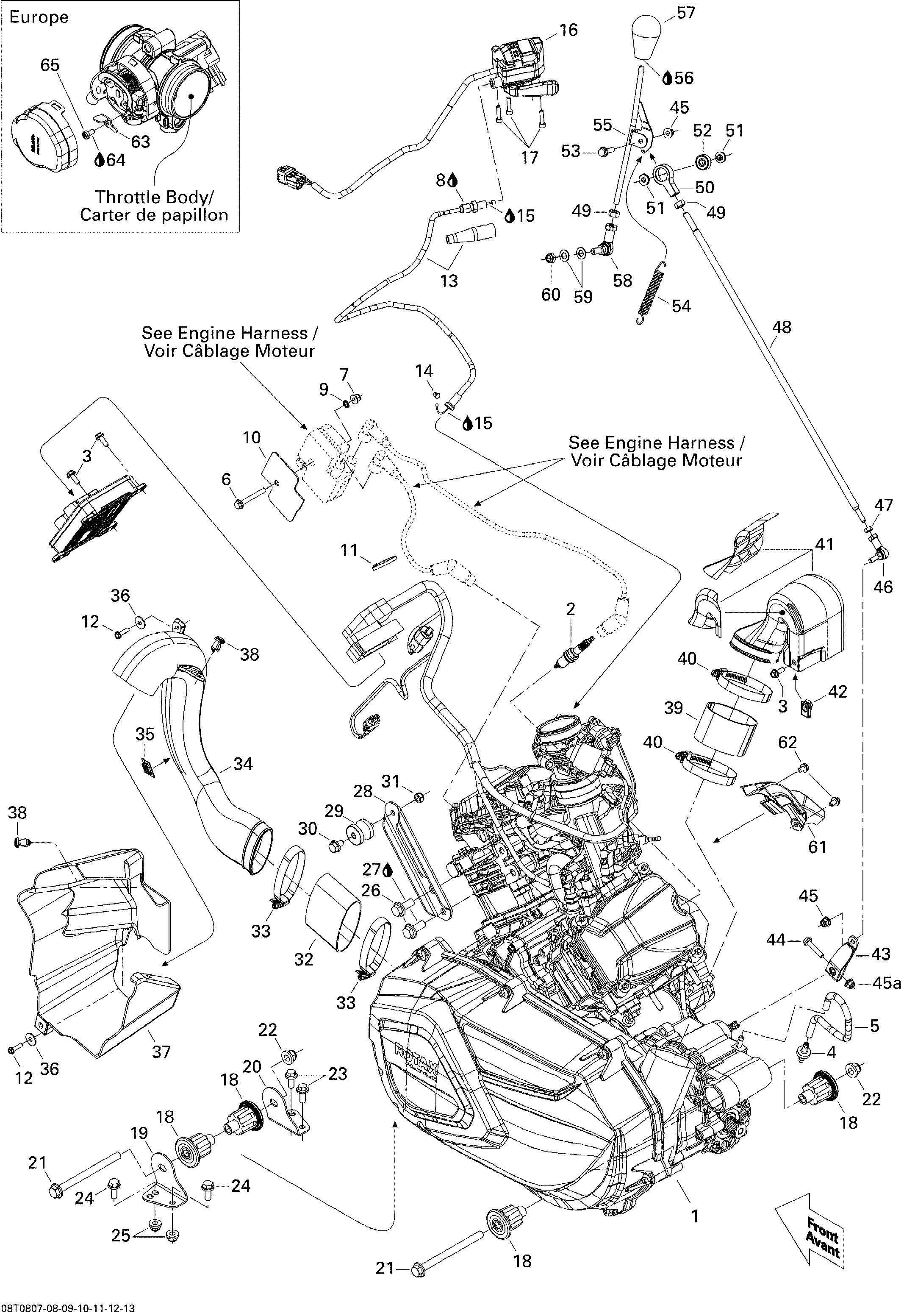

01- Engine And Engine Support для BRP Outlander MAX 500 STD - 2008
-
№АртикулНазвание
-
1a420049030 Long Block 490 EngineLong Block 490 Engine
-
2707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
3210261680 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
4275500398 Check ValveCheck Valve
-
5276000048 Hose 6 mmHose 6 mm
-
6207665044 Hex Flanged Screw M6 X 50Hex Flanged Screw M6 X 50
-
7233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
8293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
9234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
10710000073 Insulator PadInsulator Pad
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
12210252040 Hex Forming ScrewHex Forming Screw
-
13707000393 Throttle CableThrottle Cable
-
14707000434 Cable GuideCable Guide
-
15293600041 Cable Lubricant, 400 GCable Lubricant, 400 G
-
16707000595 Throttle HandleThrottle Handle
-
17205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
18707000426 Anti-vibration MountAnti-vibration Mount
-
19707000364 Engine Bracket, BlackEngine Bracket, Black
-
20707000396 Engine Bracket, BlackEngine Bracket, Black
-
21230602546 Hex Flanged Screw M10 X 125Hex Flanged Screw M10 X 125
-
22233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
23207582044 Hex Flanged Screw M8 X 20, Scotch GripHex Flanged Screw M8 X 20, Scotch Grip
-
24207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
25233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
26207602544 Hex Flanged Screw M10 X 25Hex Flanged Screw M10 X 25
-
27293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
28707000371 Upper Engine Bracket, BlackUpper Engine Bracket, Black
-
29274000839 Rubber IsolatorRubber Isolator
-
30207581244 Hex Flanged Screw M8 X 12, Scotch GripHex Flanged Screw M8 X 12, Scotch Grip
-
31232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
32707000154 Flexible AdaptorFlexible Adaptor
-
33293650091 Norma ClampNorma Clamp
-
34706600008 Air InletAir Inlet
-
35293750040 Tie-rap MountTie-rap Mount
-
36391302000 Flat WasherFlat Washer
-
37707000461 Water DeflectorWater Deflector
-
38293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
39706600007 Flexible AdaptorFlexible Adaptor
-
40514052859 Norma Gear ClampNorma Gear Clamp
-
41707000459 Outlet Ass'yOutlet Ass'y
-
42250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
43707000508 LeverLever
-
44207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
45233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
45a233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
46707000545 LH Ball JointLH Ball Joint
-
47232066414 LH Hex Nut M6LH Hex Nut M6
-
48706400001 Threaded RodThreaded Rod
-
49232081414 Hex Nut M8Hex Nut M8
-
50707000575 PivotPivot
-
51707000576 BushingBushing
-
52293350039 Ball BearingBall Bearing
-
53207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
54707000577 SpringSpring
-
55706400004 Lever ArmLever Arm
-
56293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
57705500022 Lever ButtonLever Button
-
58707000546 RH Ball JointRH Ball Joint
-
59506151252 WasherWasher
-
60232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
61707000410 Cover OPSCover OPS
-
62210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
63707000563 Speed Limiter. EuropeSpeed Limiter. Europe
-
64293800060 Loctite 243, 10 ml. EuropeLoctite 243, 10 ml. Europe
-
65250000332 Screw M4 X 8. EuropeScrew M4 X 8. Europe
