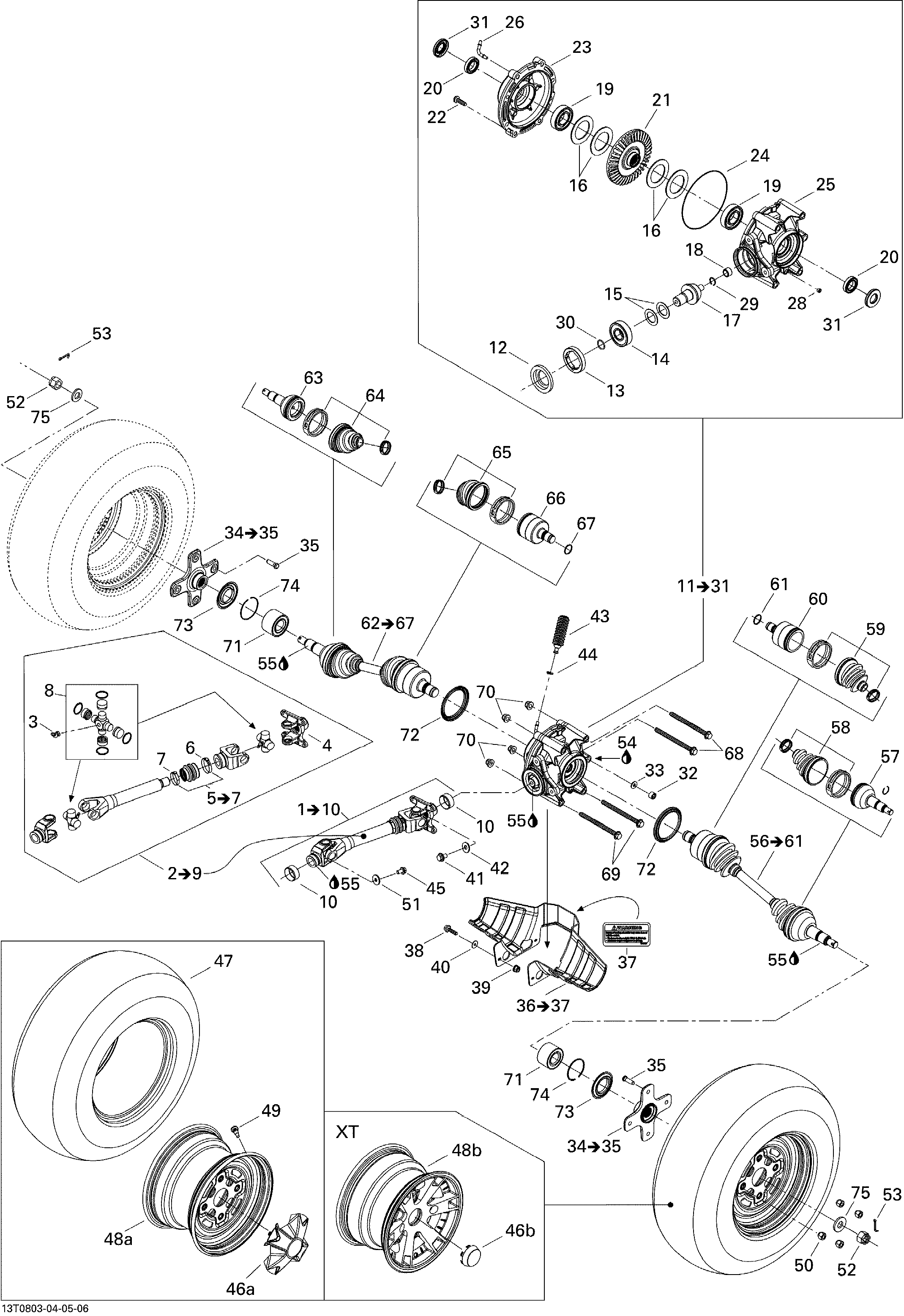

08- Drive System, Rear STD для BRP Outlander MAX 400 STD - 2008
‹-+›
-
№АртикулНазвание
-
1703500707 Rear Drive Shaft Ass'y. Includes 1 to 10Rear Drive Shaft Ass'y. Includes 1 to 10
-
2703500707 Rear Shaft. Includes 2 to 9Rear Shaft. Includes 2 to 9
-
3715900067 Grease FittingGrease Fitting
-
4705500351 Disc JointDisc Joint
-
5703500255 Rubber Boot Kit. Includes 5 to 7Rubber Boot Kit. Includes 5 to 7
-
6293650138 Oetiker ClampOetiker Clamp
-
7705400148 CollarCollar
-
8703000024 Unit Pack KitUnit Pack Kit
-
10705400036 Wear RingWear Ring
-
11705500891 Differential. Includes 11 to 31Differential. Includes 11 to 31
-
12705400027 Oil SealOil Seal
-
13705500905 NutNut
-
14705500260 Ball BearingBall Bearing
-
15705500075 Pinion Gear Shim .022''Pinion Gear Shim .022''
-
15703500049 Pinion Shim KitPinion Shim Kit
-
16703500548 Differential Shim KitDifferential Shim Kit
-
17705500268 Gear, 10 TeethGear, 10 Teeth
-
18705500261 Needle BearingNeedle Bearing
-
19705500749 Ball BearingBall Bearing
-
20705500750 Ball BearingBall Bearing
-
21705500775 Gear, 36 ToothGear, 36 Tooth
-
22705500892 ScrewScrew
-
23705500697 Rear Differential CoverRear Differential Cover
-
24705500265 SealSeal
-
25705500843 Rear CoverRear Cover
-
26705500893 Vent ValveVent Valve
-
28705500894 Drain PlugDrain Plug
-
29705500269 Retaining RingRetaining Ring
-
30705500267 O-RingO-Ring
-
31705500751 Oil SealOil Seal
-
32250400041 Screw PlugScrew Plug
-
33705500506 Copper WasherCopper Washer
-
34705500909 Wheel Hub Ass'y. Includes 34 to 35Wheel Hub Ass'y. Includes 34 to 35
-
35250300032 Wheel StudWheel Stud
-
36703500289 Protector Kit. Includes 36 to 37Protector Kit. Includes 36 to 37
-
37704900009 Warning Label, HitchWarning Label, Hitch
-
38207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
39233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
40391302000 Flat WasherFlat Washer
-
41250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
42250200014 Flat WasherFlat Washer
-
43705400352 Rubber BellowRubber Bellow
-
44293650042 Oetiker ClampOetiker Clamp
-
45207581646 Hex Flanged Screw M8 X 16, Scotch GripHex Flanged Screw M8 X 16, Scotch Grip
-
46a705400563 Wheel Cap. STDWheel Cap. STD
-
47705500441 Rear Tire. STDRear Tire. STD
-
47705500934 Rear Tire. STD EURRear Tire. STD EUR
-
48a705500875 Rear Rim. STDRear Rim. STD
-
49705400193 Rim ValveRim Valve
-
50250100042 Wheel Nut. STDWheel Nut. STD
-
51211200041 WasherWasher
-
52232291413 Hex Flanged Castellated Nut M18Hex Flanged Castellated Nut M18
-
53250400036 Cotter PinCotter Pin
-
54293600011 Pump Oil, 75W90, 12 X 6 OzPump Oil, 75W90, 12 X 6 Oz
-
55293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
56705500738 LH CV Joint. Includes 56 to 61LH CV Joint. Includes 56 to 61
-
57705500701 CV JointCV Joint
-
58705500469 Boot Wheel KitBoot Wheel Kit
-
59705500428 Boot KitBoot Kit
-
60705500784 Plunging JointPlunging Joint
-
61705500845 CirclipCirclip
-
62705500739 RH CV Joint. Includes 62 to 67RH CV Joint. Includes 62 to 67
-
63705500701 CV JointCV Joint
-
64705500469 Boot Wheel KitBoot Wheel Kit
-
65705500428 Boot KitBoot Kit
-
66705500784 Plunging JointPlunging Joint
-
67705500845 CirclipCirclip
-
68230603046 Flanged Hex Screw, M10 X 130Flanged Hex Screw, M10 X 130
-
69230603546 Hex Flanged Screw M10 X 135Hex Flanged Screw M10 X 135
-
70233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
71293350040 Cone BearingCone Bearing
-
72705500901 Wear SleeveWear Sleeve
-
73705500899 Wear SleeveWear Sleeve
-
74293370019 CirclipCirclip
-
75250200049 Spring WasherSpring Washer
