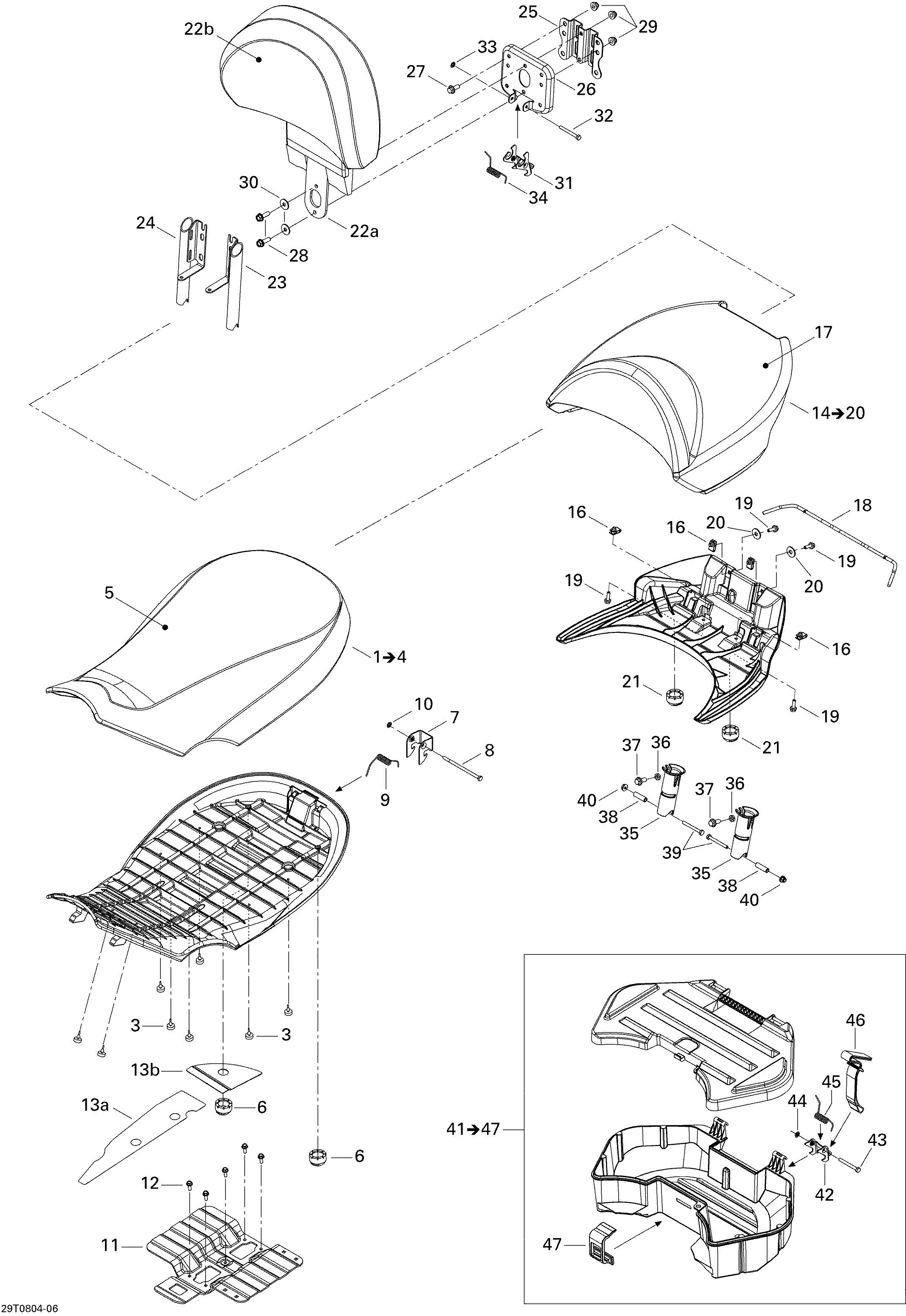

09- Seat для BRP Outlander MAX 400 EFI STD - 2008
-
№АртикулНазвание
-
1708000505 Seat Ass'y. Includes 1 to 5Seat Ass'y. Includes 1 to 5
-
3708000125 Rubber StopperRubber Stopper
-
5708000474 Seat CoverSeat Cover
-
6708000323 Rubber BumperRubber Bumper
-
7708000144 Latch, BlackLatch, Black
-
8230061044 Hex Screw M6 X 110Hex Screw M6 X 110
-
9708000369 SpringSpring
-
10732610072 Push NutPush Nut
-
11708000512 Seat ReinforcementSeat Reinforcement
-
12210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
13708000513 Reflecting SheetReflecting Sheet
-
13708000514 Reflecting SheetReflecting Sheet
-
14708000449 Rear Seat Ass'y. Includes 14 to 20Rear Seat Ass'y. Includes 14 to 20
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
17708000457 Seat CoverSeat Cover
-
18708000447 LatchLatch
-
19207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
20234161471 Lock Washer M6, BlackLock Washer M6, Black
-
21708000323 Rubber BumperRubber Bumper
-
22a708000437 Backrest Ass'y. Includes 22a to 22bBackrest Ass'y. Includes 22a to 22b
-
22b708000465 Backrest CoverBackrest Cover
-
23708000439 LH Backrest StemLH Backrest Stem
-
24708000443 RH Backrest StemRH Backrest Stem
-
25708000445 Rear PlateRear Plate
-
26708000446 Front PlateFront Plate
-
27207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
28207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
29233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
30234082410 Flat Washer 8 mmFlat Washer 8 mm
-
31708000448 LatchLatch
-
32207065544 Hex Screw M6 X 55Hex Screw M6 X 55
-
33732610072 Push NutPush Nut
-
34708000369 SpringSpring
-
35708000461 Rod GuideRod Guide
-
36232180600 Nut M8Nut M8
-
37207182044 Hex Screw M8 X 20Hex Screw M8 X 20
-
38708000530 Inner BushingInner Bushing
-
39207065044 Hex Cap Screw M6 X 50Hex Cap Screw M6 X 50
-
40233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
41708200090 Box Ass'y. Includes 41 to 47Box Ass'y. Includes 41 to 47
-
42708200066 LatchLatch
-
43207065534 Hex Cap Screw M6 X 55Hex Cap Screw M6 X 55
-
44732610072 Push NutPush Nut
-
45708000369 SpringSpring
-
46510004495 BeltBelt
-
47708200061 Storage Cover LatchStorage Cover Latch
