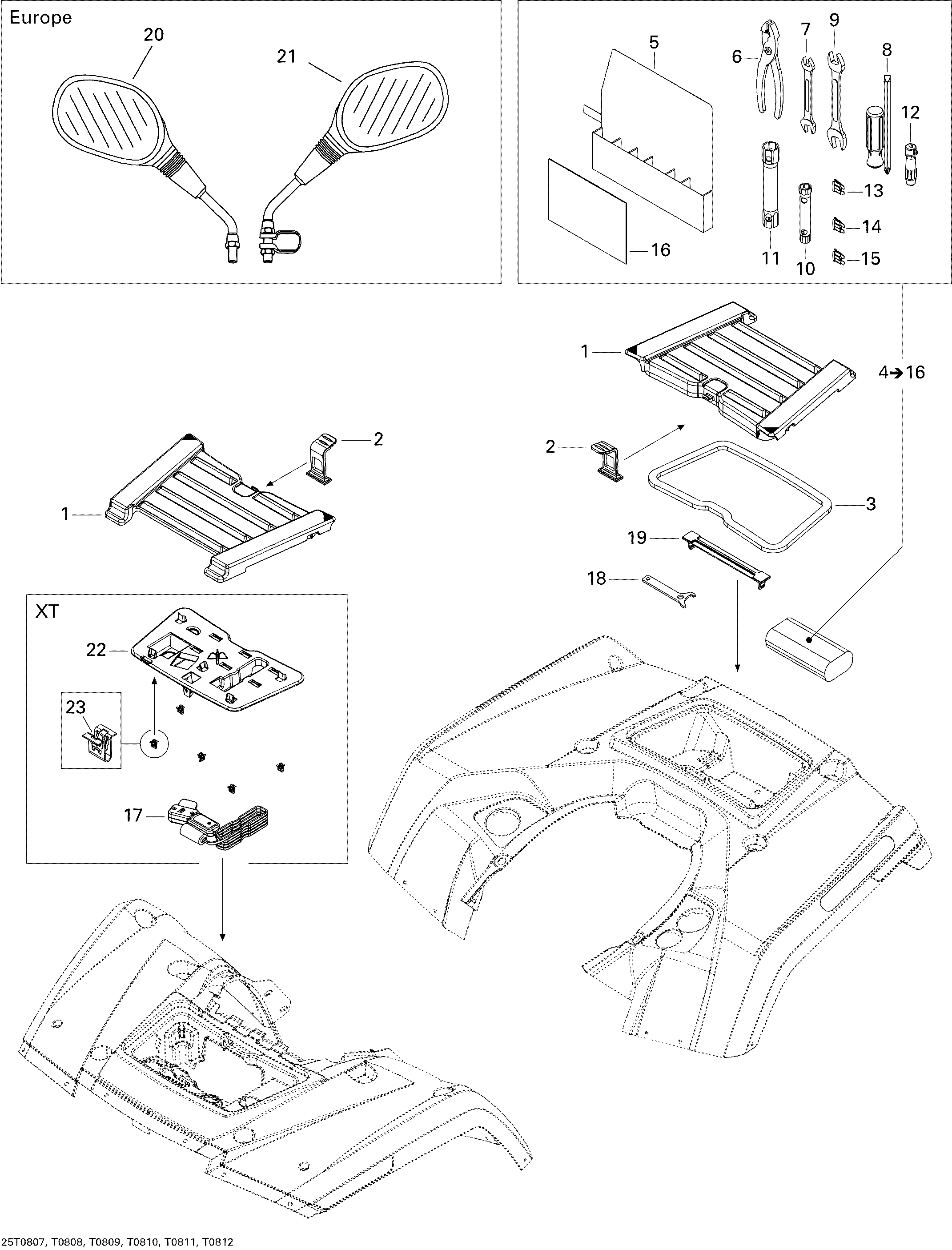

09- Front and Rear Trays XT для BRP Outlander 650 XT - 2008
-
№АртикулНазвание
-
1705001853 Storage CoverStorage Cover
-
2708200061 Storage Cover LatchStorage Cover Latch
-
3293250192 Neoprene SealNeoprene Seal
-
4704700106 Owner Tool Kit. Includes 4 to 16Owner Tool Kit. Includes 4 to 16
-
7529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
8529000004 Driver ScrewDriver Screw
-
9529000003 Fork Wrench 15/17 mmFork Wrench 15/17 mm
-
12704700003 Pressure GaugePressure Gauge
-
13410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
14409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
15278000343 Fuse, 15 AmperesFuse, 15 Amperes
-
17710001002 Remote Control. XT, LTDRemote Control. XT, LTD
-
18529032900 Adjustment WrenchAdjustment Wrench
-
19708200062 Tool Kit LatchTool Kit Latch
-
20709400406 LH Mirror. EuropeLH Mirror. Europe
-
21709400407 RH Mirror. EuropeRH Mirror. Europe
-
22708200075 Support. XT, LTDSupport. XT, LTD
-
23517302785 Clip. XT, LTDClip. XT, LTD
