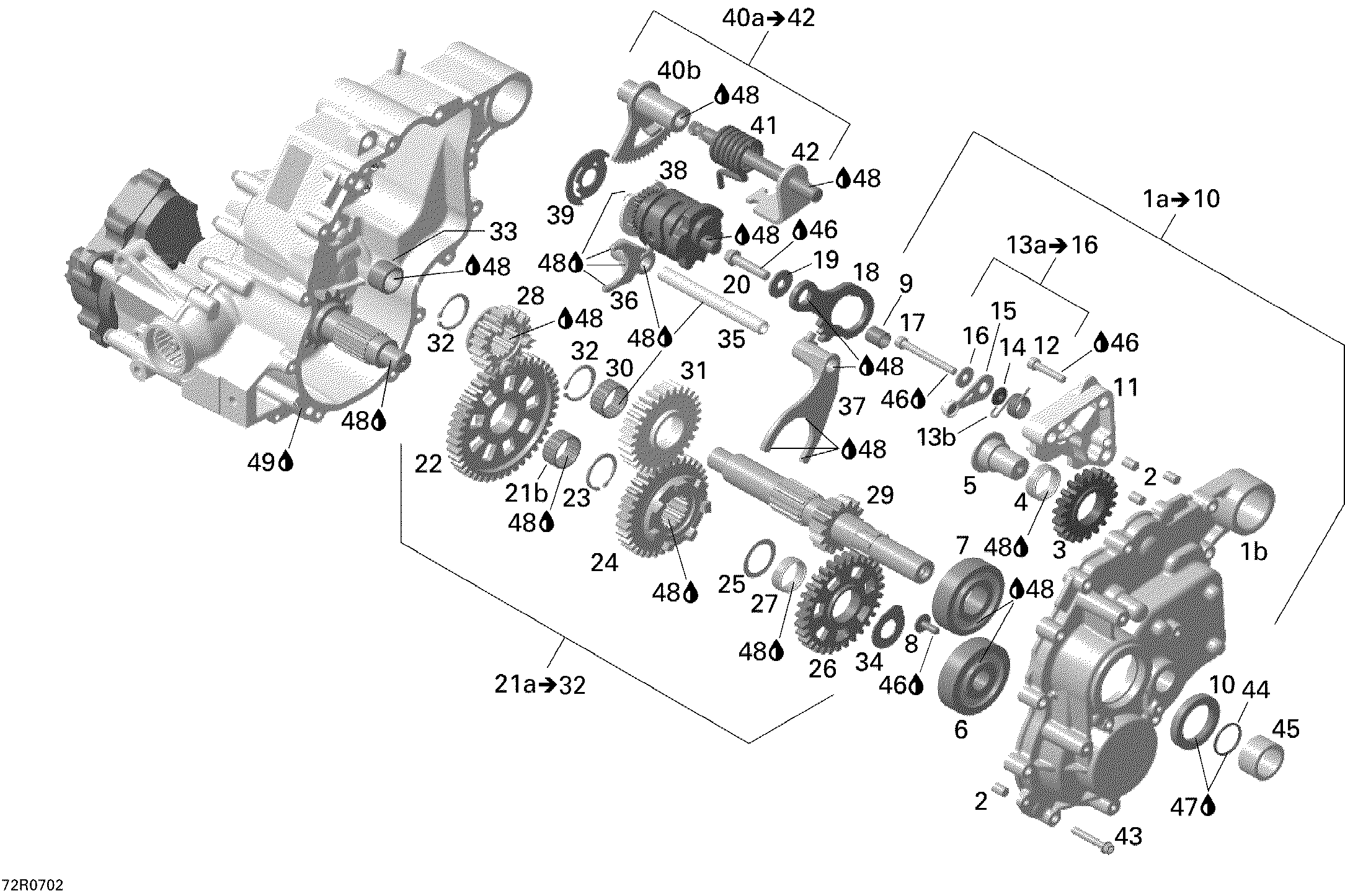

01- Gear Box And Components для BRP Outlander 500 STD - 2008
-
№АртикулНазвание
-
1a420611415 LH Gear Housing Ass'y. Includes 1a to 10LH Gear Housing Ass'y. Includes 1a to 10
-
2420632010 Pin 8 X 12Pin 8 X 12
-
4420232652 Needle Bearing. See Item 21aNeedle Bearing. See Item 21a
-
6420632290 Ball BearingBall Bearing
-
7420932825 Ball BearingBall Bearing
-
8420241526 Torx Screw M6 X 16Torx Screw M6 X 16
-
10420950087 Oil SealOil Seal
-
11420611450 SupportSupport
-
12205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
13a420248530 Index Lever Ass'y. Includes 13a to 16Index Lever Ass'y. Includes 13a to 16
-
17420240331 Socket Head ScrewSocket Head Screw
-
18420257652 Parking Lock Lever Ass'yParking Lock Lever Ass'y
-
19420227937 Plain WasherPlain Washer
-
20420440867 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
21a420281620 Gear Set. Includes 3 to 5 and 21a to 32Gear Set. Includes 3 to 5 and 21a to 32
-
21b420632070 Needle BearingNeedle Bearing
-
23420845771 Retaining RingRetaining Ring
-
25420944479 Thrust WasherThrust Washer
-
27420232652 Needle BearingNeedle Bearing
-
33420832240 Needle BushingNeedle Bushing
-
30420632070 Needle BearingNeedle Bearing
-
32420845771 Retaining RingRetaining Ring
-
34420281308 Thrust Washer SetThrust Washer Set
-
35420258381 Fork SpindleFork Spindle
-
36420257611 Shift ForkShift Fork
-
37420257621 Shift ForkShift Fork
-
38420257576 Shift DrumShift Drum
-
39420626091 Isolating WasherIsolating Washer
-
40a420620657 Shift Shaft Ass'y. Includes 40a to 42Shift Shaft Ass'y. Includes 40a to 42
-
43420440277 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
44420631610 O-RingO-Ring
-
45420247117 Distance RingDistance Ring
-
46293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
47293550030 Grease, Super LubeGrease, Super Lube
-
49293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
