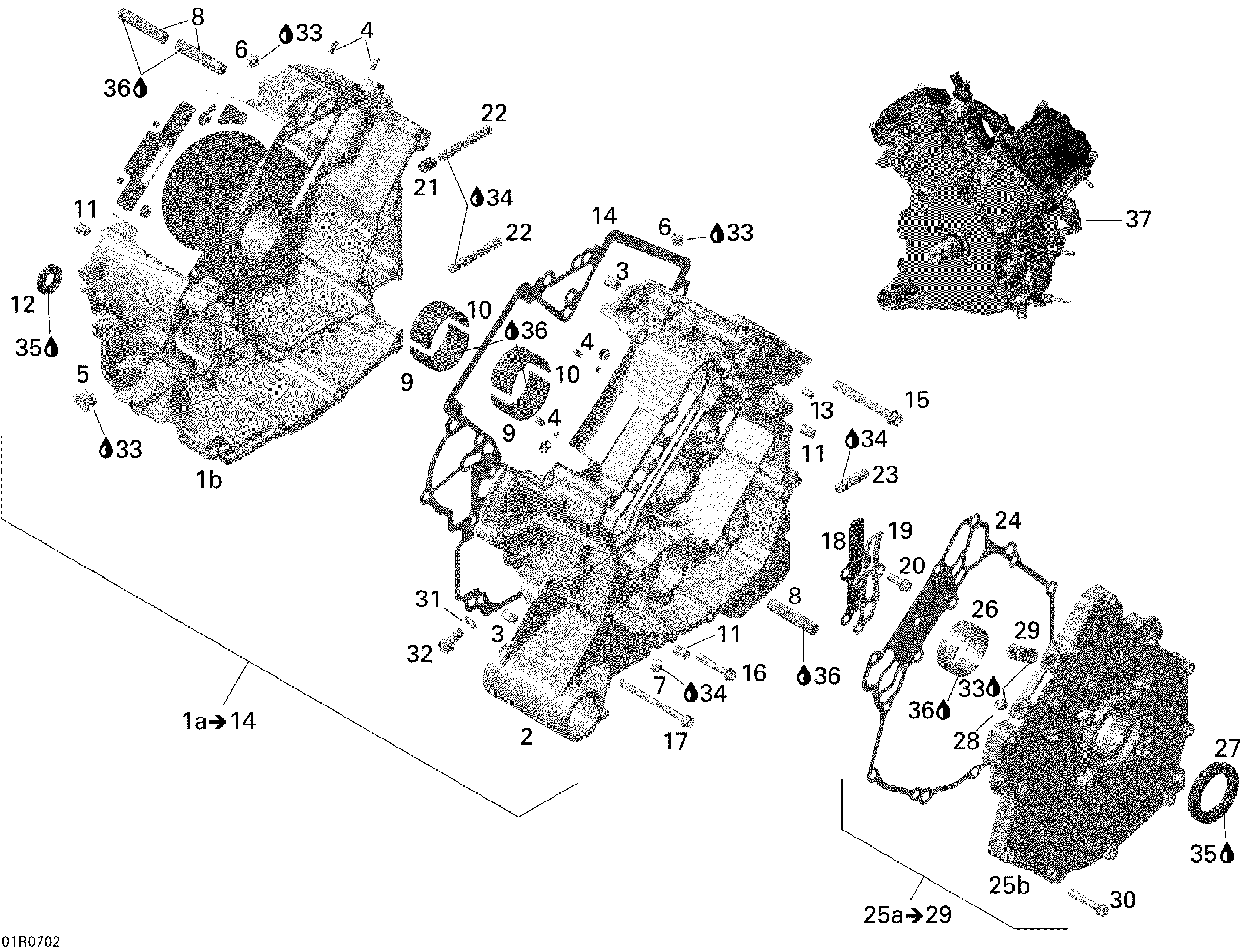

01- Crankcase для BRP Outlander 500 STD - 2008
-
№АртикулНазвание
-
1a420684554 Crankcase Ass'y. Includes 1a to 13Crankcase Ass'y. Includes 1a to 13
-
3420632010 Pin 8 X 12Pin 8 X 12
-
4420929650 Drive Pin, 5 X 10Drive Pin, 5 X 10
-
5420240170 Plug Screw M18 X 1.5Plug Screw M18 X 1.5
-
6420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
7420840651 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
8420229301 Location PinLocation Pin
-
9420233960 Plain BearingPlain Bearing
-
10420233965 Plain BearingPlain Bearing
-
11420632010 Pin 8 X 12Pin 8 X 12
-
12420650310 Oil SealOil Seal
-
13420932780 Needle PinNeedle Pin
-
14420651220 GasketGasket
-
15420440402 Flanged Torx Screw M8 X 65Flanged Torx Screw M8 X 65
-
16420440277 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
17420440652 Flanged Torx Screw M6 X 75Flanged Torx Screw M6 X 75
-
18420224720 Valve PlateValve Plate
-
19420224725 Reed Valve StopReed Valve Stop
-
20420440167 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
21420929671 Dowel 10 X 13Dowel 10 X 13
-
22420240814 StudStud
-
23420840719 StudStud
-
24420651210 GasketGasket
-
25a420611145 PTO Cover Ass'y (ESN#6642664 or lower). Includes 25a to 29PTO Cover Ass'y (ESN#6642664 or lower). Includes 25a to 29
-
25a420612125 PTO Cover Ass'y (ESN#6642665 or higher). Includes 25a to 29PTO Cover Ass'y (ESN#6642665 or higher). Includes 25a to 29
-
26420233995 Bearing SleeveBearing Sleeve
-
27420631932 Oil SealOil Seal
-
28420641323 Plug Screw M10 X 1Plug Screw M10 X 1
-
29420256332 Hose NippleHose Nipple
-
30420440277 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
31420950141 Sealing RingSealing Ring
-
32420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
33293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
34413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
35293550030 Grease, Super LubeGrease, Super Lube
-
37420049030 Long Block 490 EngineLong Block 490 Engine
