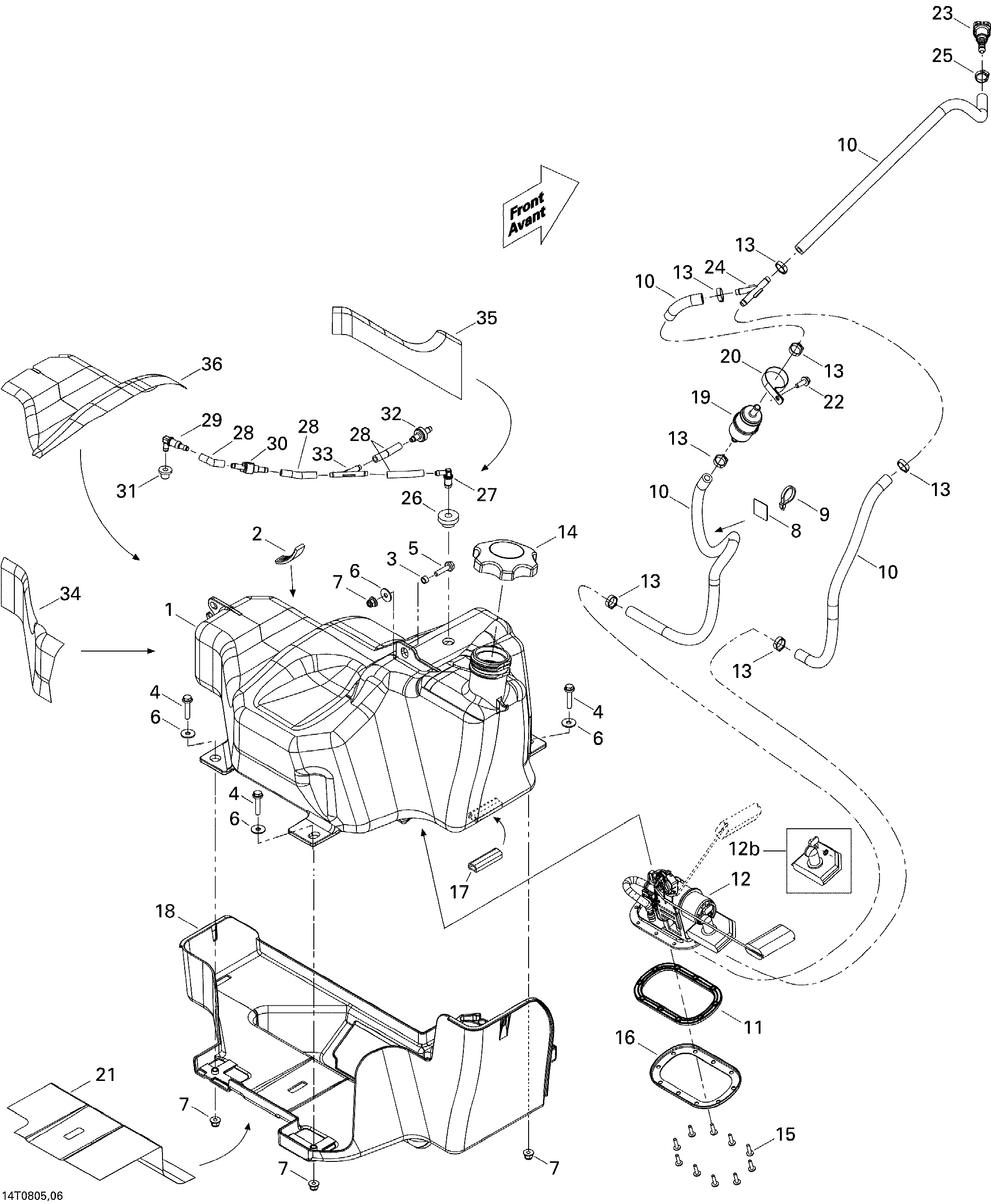

02- Fuel Tank для BRP Outlander 400 EFI STD - 2008
-
№АртикулНазвание
-
1709000176 Fuel TankFuel Tank
-
2709000153 Vinyl StripVinyl Strip
-
3293900029 BushingBushing
-
4207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
5207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
6391302000 Flat WasherFlat Washer
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8293750040 Tie-rap MountTie-rap Mount
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
10709000163 Fuel LineFuel Line
-
11709000109 GasketGasket
-
12703500771 Fuel PumpFuel Pump
-
13293650046 Oetiker ClampOetiker Clamp
-
14513033025 CapCap
-
15250000242 Truss Torx Screw M4 X 16Truss Torx Screw M4 X 16
-
16709000170 Pump RingPump Ring
-
17293200093 Neoprene SealNeoprene Seal
-
18709000091 Tank ProtectorTank Protector
-
19709000100 Fuel FilterFuel Filter
-
20513033047 Open ClampOpen Clamp
-
21709000149 Reflective SheetReflective Sheet
-
22210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
23709000125 Female Quick FittingFemale Quick Fitting
-
24293710115 Y Fitting, 5/16''Y Fitting, 5/16''
-
25293650046 Oetiker ClampOetiker Clamp
-
26293830136 GrommetGrommet
-
27414580700 Elbow Male ConnectorElbow Male Connector
-
28415080200 Polyurethane HosePolyurethane Hose
-
29414580600 Elbow Male ConnectorElbow Male Connector
-
30513033469 Check ValveCheck Valve
-
31293720029 GrommetGrommet
-
32275500398 Check ValveCheck Valve
-
33293710059 Y FittingY Fitting
-
34709000204 Reflecting SheetReflecting Sheet
-
35709000205 Reflecting SheetReflecting Sheet
-
36709000206 Reflecting SheetReflecting Sheet
