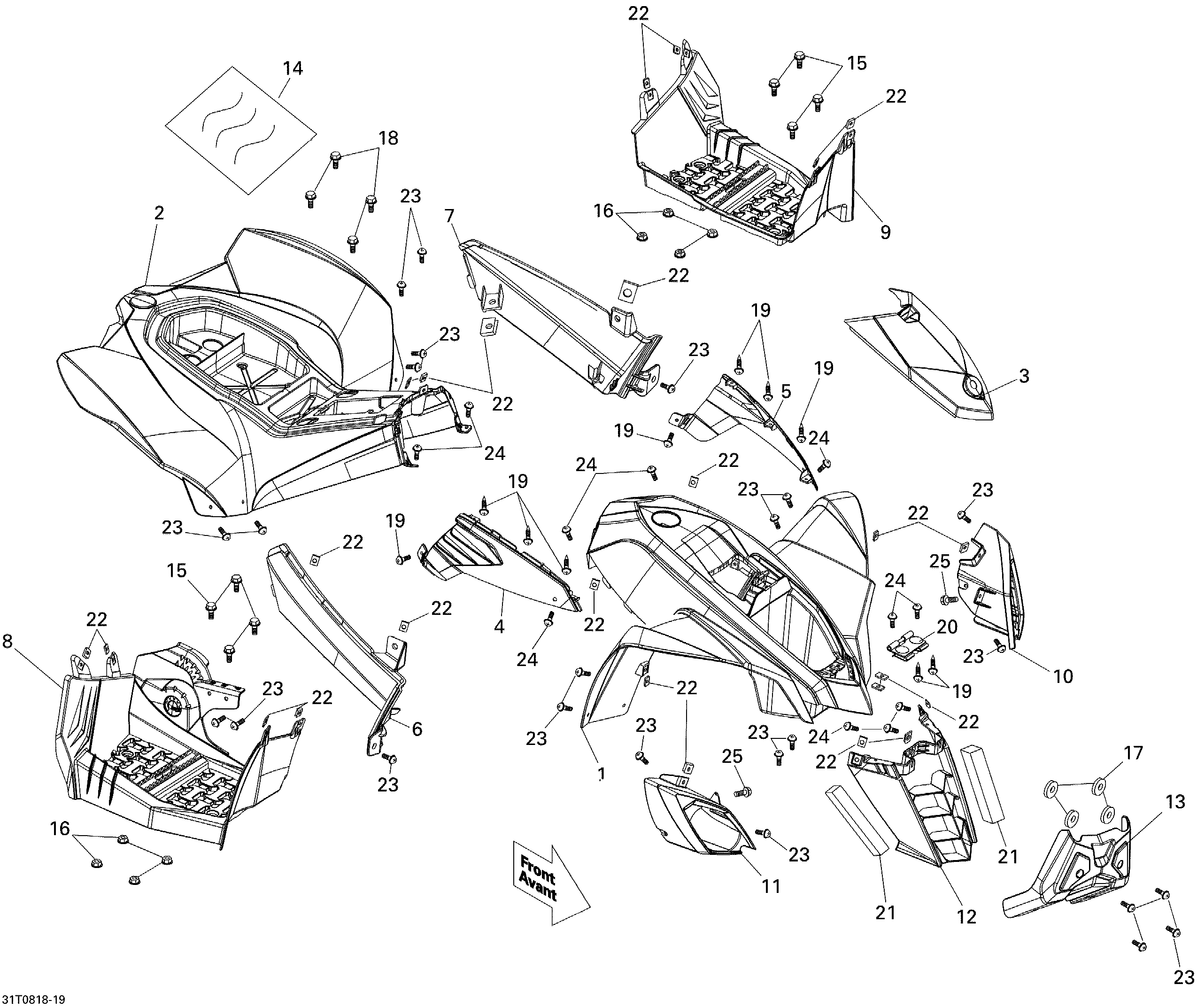

09- Body And Accessories для BRP Mini DS 90cc 4T Jaune - 2008
-
№АртикулНазвание
-
1V81101DGF060 Front Fender, YellowFront Fender, Yellow
-
2V81102DGF040 Rear Fender, YellowRear Fender, Yellow
-
3V81103DGF050 Cargo CoverCargo Cover
-
4V80104DGF000BK RH Front Side PanelRH Front Side Panel
-
5V80105DGF000BK LH Front Side PanelLH Front Side Panel
-
6V80116DGF000BK RH Rear Side PanelRH Rear Side Panel
-
7V80117DGF000BK LH Rear Side PanelLH Rear Side Panel
-
8V80106DGF000BK RH FootrestRH Footrest
-
9V80107DGF000BK LH FootrestLH Footrest
-
10V80110DGF000BK LH Headlamp HousingLH Headlamp Housing
-
11V80111DGF000BK RH Headlamp HousingRH Headlamp Housing
-
12V80114DGF000BK Front GrillFront Grill
-
13V80113DGF000BK Skid PlateSkid Plate
-
14V18450DGF000 Heat Insulation SheetHeat Insulation Sheet
-
15207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
16232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
17V85288MAA000 Rubber CushionRubber Cushion
-
18207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
19V9309304012 Tapping ScrewTapping Screw
-
20V50262DGF020 Cargo Cover HingeCargo Cover Hinge
-
21V81146DGF020 Waterproof StripWaterproof Strip
-
22V9034506000K Spring NutSpring Nut
-
23V9300006015 Round Head ScrewRound Head Screw
-
24V9300006012 Round Head ScrewRound Head Screw
-
25V9200006017 Round Head ScrewRound Head Screw
